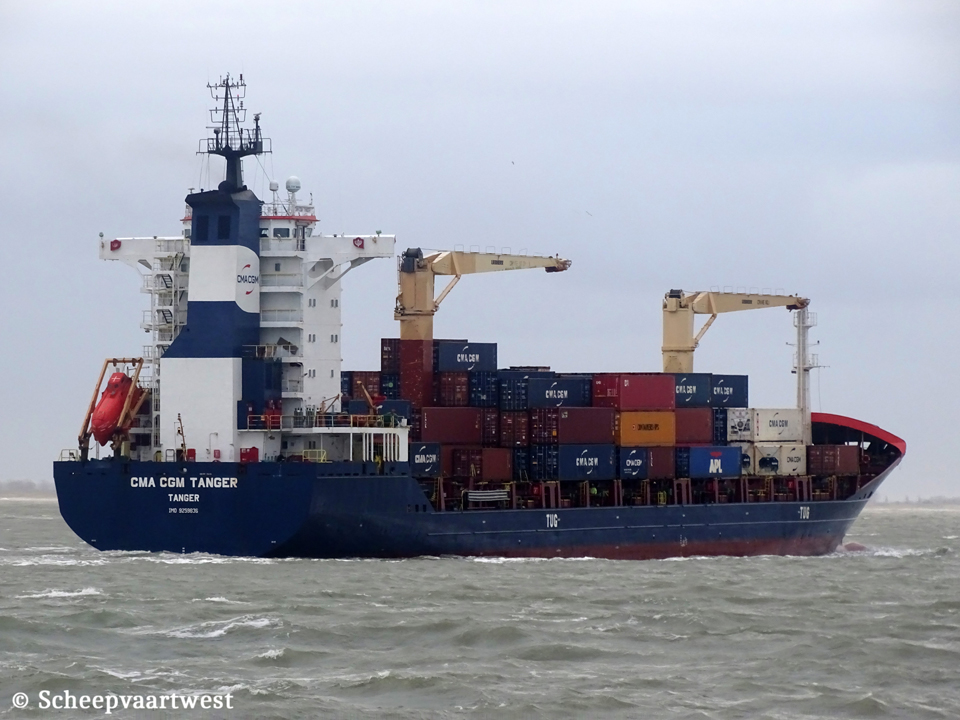

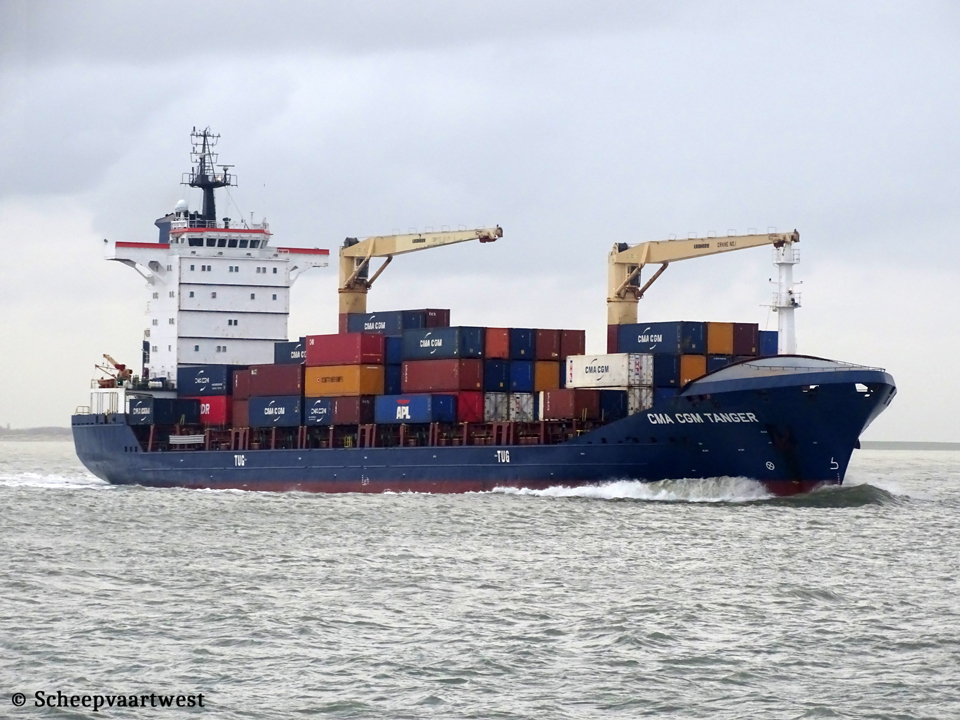

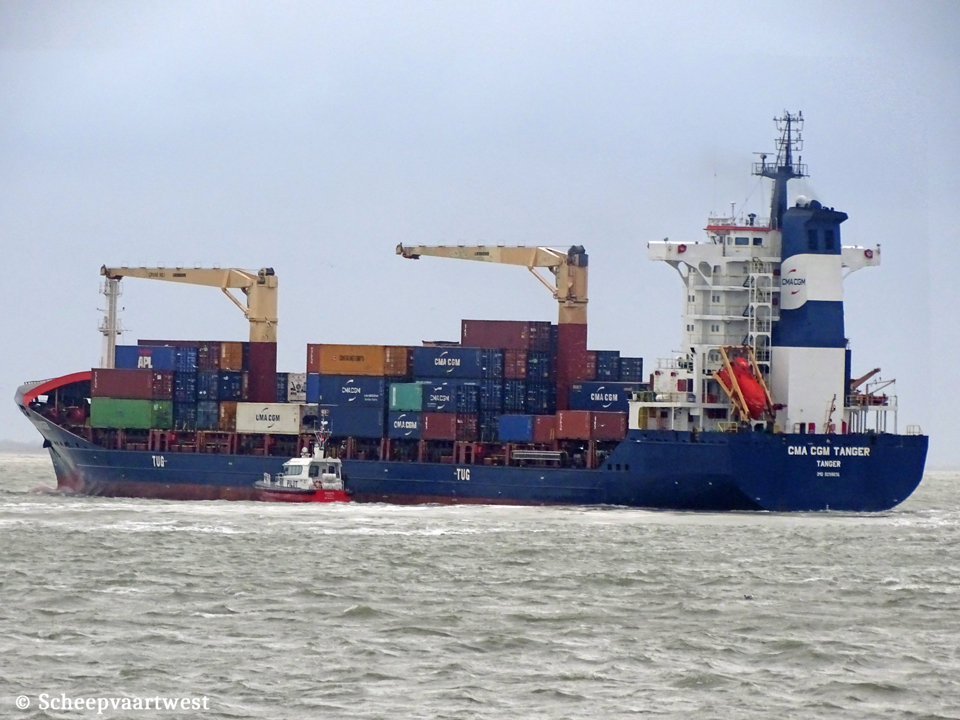

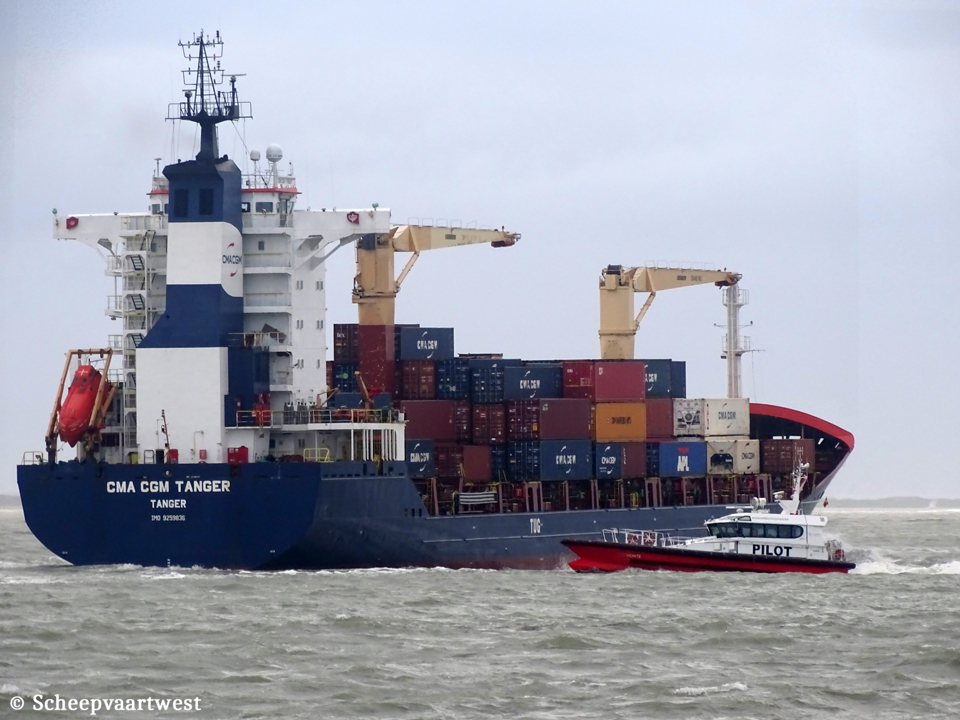

| Westerschelde 13 December 2019 |
 |
 |
 |
||
| Westerschelde 13/12/19 | Westerschelde 13/12/19 | Westerschelde 13/12/19 |
|
Name |
CMA CGM TANGER |
|
Previous names |
2003 - 2003 Asian Steamer 2003 - 2010 Tropic Atlantic 2010 - 2018 Asturiano |
|
Type |
Cellular containership |
|
IMO-number |
9259836 |
|
Call sign |
CNA5338 |
|
Flag |
Morocco |
|
Port of registry |
Tanger |
|
Previous flags |
Antigua & Barbuda, St. John’s Republic of Panama, Panama City - Call sign: 3EXP7 Portugal, Madeira - Call sign: CQAB7 |
|
GT |
9.966 t |
|
DWT |
13.702 t |
|
NT |
5.046 t |
|
Number of 20ft containers |
1.118 |
|
Reefer capacity |
220 |
|
Length |
147,80 m overall 140,30 m between perpendiculars |
|
Breadth |
23,28 m extreme |
|
Draught |
Summer: 8,51 m |
|
Depth |
11,50 m |
|
Speed |
Max: 20,0 knots Service: 15,5 knots |
|
Built |
2003 |
|
Keel laid |
30/05/2002 |
|
Date of completion |
30/10/2003 |
|
Builder |
Jiangdong Shipyard of China Changjiang Shipping Group Wuhu China |
|
Yard number |
1100TEU-4 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Bulkheads |
11 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN 7L58/64 - 7 cylinder combustion engine 9.733 kW / 13.224 hp |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Thermal oil heater, exhaust heated 1x Thermal oil heater, oil fired |
|
Shaft generator |
1.400 kW |
|
Generators |
3x MAN-B&W 6L16/24 main diesel generatorsets each 570 kW |
|
Emergency generator |
1x D2842 LE201 diesel generatorset |
|
Bow thruster |
700 kW |
|
Cargo gear |
2x Cranes - SWL 45,0 t each |
|
Manager |
CMA CGM Holding |
|
Registered owner |
Comanav 7, boulevard de la Resistance BP 628 Casablanca 20300 Morocco |
|
Latest data adjustment |
24 August 2022 |
