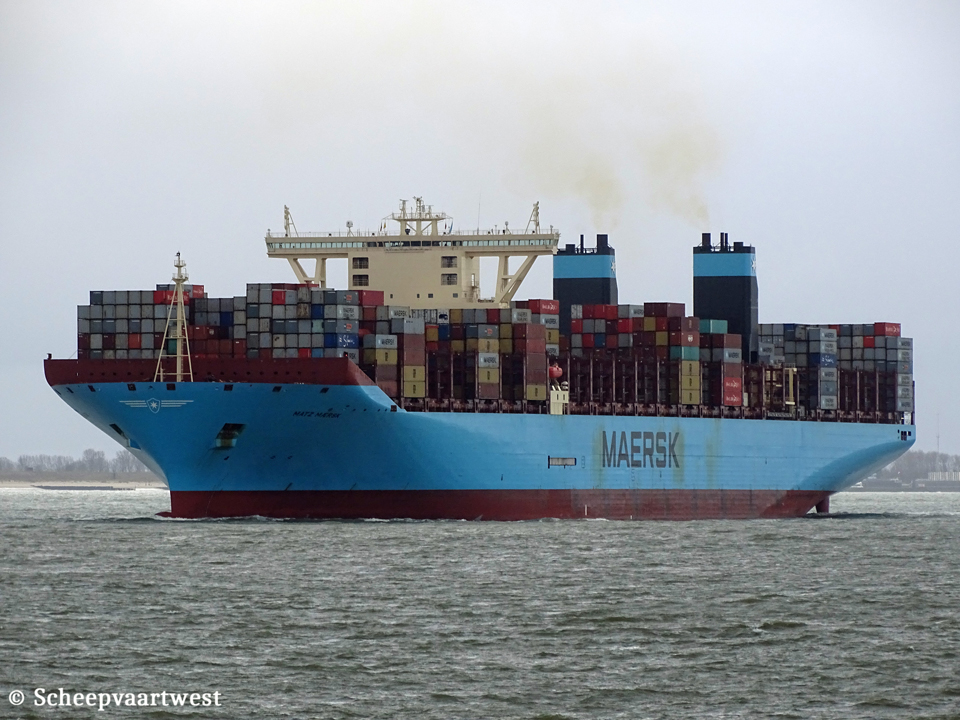

Matz Maersk IMO 9619983 01
Westerschelde 01 March 2020

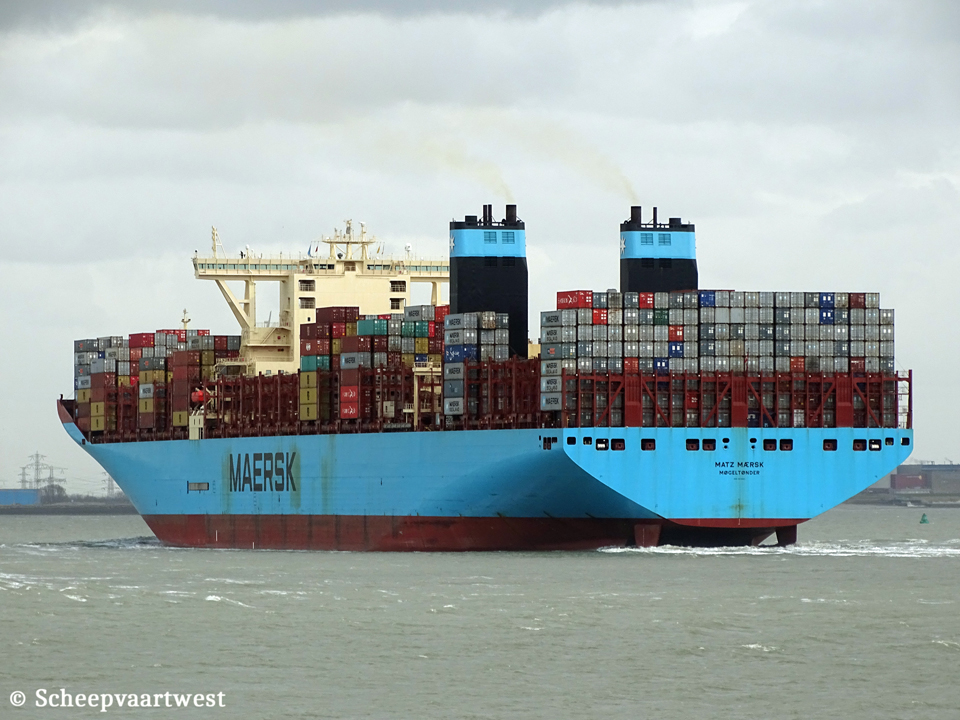

Matz Maersk IMO 9619983 02
Westerschelde 01/03/20









Name

MATZ MAERSK (MATZ MÆRSK)

Type

Cellular containership

IMO-number

9619983

Call sign

OWJM2

Flag

Denmark

Port of registry

Møgeltønder

GRT

194.849 t

Suez: 199.185,85 t

DWT

194.283,6 t

NRT

89.317 t

Suez: 174.267,54 t

Displacement

257.997,1 t

Number of 20ft containers

18.270

Reefer capacity

1.800

Length

399,20 m overall

376,21 m between perpendiculars

Breadth

59,00 m moulded

Draught

Summer: 14,50 m

Freeboard

6.845 mm

Depth

30,30 m moulded

Speed

Max: 230 knots

Built

2014

Keel laid

12/11/2013

Launch date

04/01/2014

Delivery date

10/06/2014

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd.3370 Geojedaero, Geoje-Si, Gyeongsangnam-Do, 656-714

South Korea

Yard number

4258

Hull material

High strength steel

Watertight bulkheads

17

Main engine

2x Doosan 8S80ME-C Mk9.2 - 2 stroke 8 cylinder 800 x 3.450 mm combustion engines each Mcr 29.680 kW at 73,1 rpm

Total: 59.360 kW / 80.706 hp

Manufacturer: Doosan Engine Co., Ltd.

Propellers

2x Fixed pitch propeller

Manufacturer: Mecklenburger Metallguss GmbH

Boilers

2x H.P. Exhaust gas economizer - 14,0 bar

2x G/E Exhaust gas economizer - 12,5 bar

2x L.P. Exhaust gas economizer - 8,0 bar

1x Auxiliary boiler - 9,0 bar

manufacturer: Alfa Laval Qingdao Ltd.

Shaft generator

2x Siemens AG I AC 222 each 3.000 kW

Generators

1x T/G Generator HSJ7 903-4P - 6.000 kW

1x Main diesel generatorset 4.300 kW

2x Main diesel generatorset 2.800 kW

Manufacturer: HHI Electro Electric System

Hold capacity

384.683,6 m³

Number of tanks

Ballast: 38

Lubricating oil: 15

Fuel oil: 13

Fresh water: 8

Waste water: 6

Diesel oil: 4

Sludge: 4

Chain: 2

Tank capacities

Diesel oil: 1.100;8 m³

Freshwater: 1.048,3 m³

Fuel oil: 14.018,6 m³

Lube oil: 588;6 m³

Tank ballast: 63.173,2 m³

Lifting equipment

1x Engine room crane Port - SWL 10,0 t

1x Engine room crane Stbd - SWL 10,0 t

1x Monorail crane - SWL 12,5 t

1x Provision crane port - SWL 2,0 t

1x Provision crane Stbd - SWL 5,0 t

Manufacturer: Dongnam Marine Crane Co., Ltd.

ISM & commercial manager

Maersk Line A/S

Esplanaden 50

1098 Copenhagen, K

Denmark

Latest data adjustment

15 September 2015
