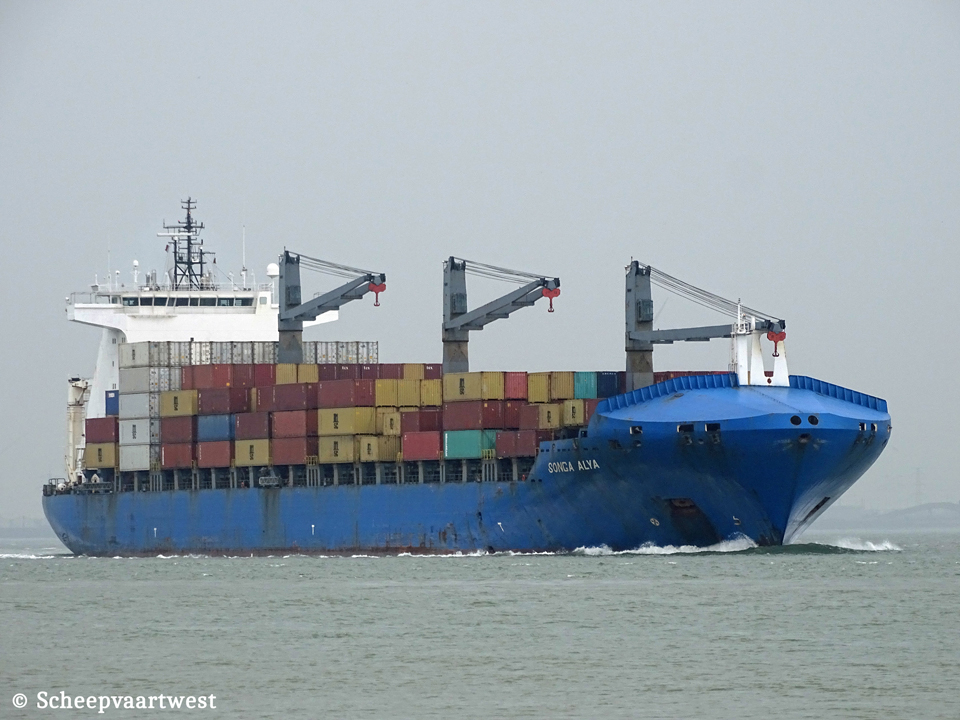

| Westerschelde 13 April 2018 |
 |
|

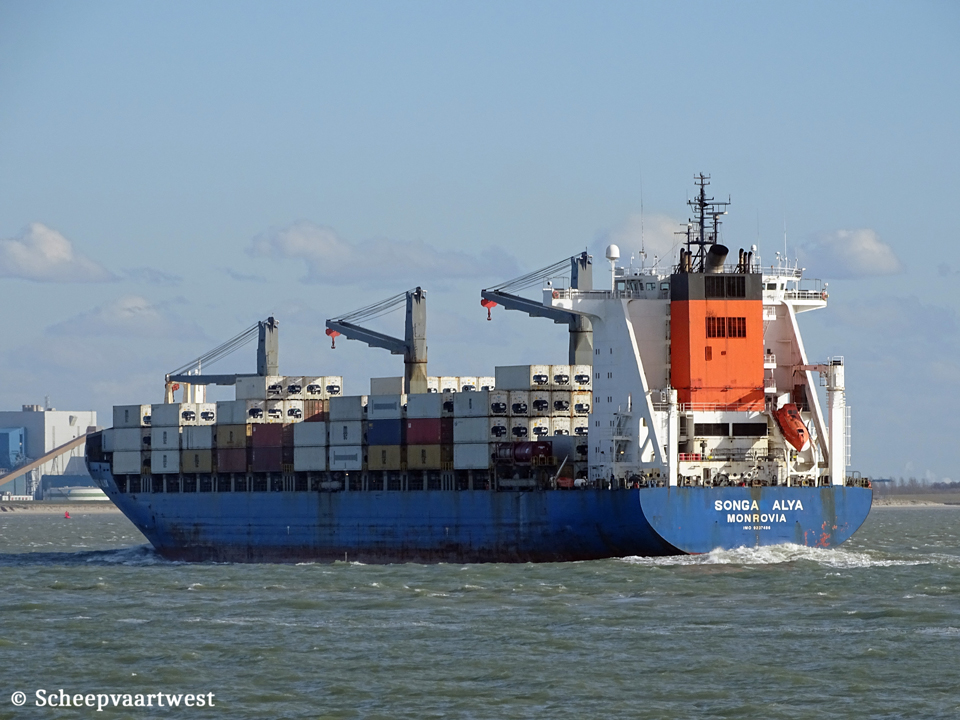

| Westerschelde 13/02/18 | |
|
Name |
SONGA ALYA |
|
Previous names |
Launch as: 2004 Renata 2004 - 2017 Alena 2017 - 2018 Norasia Alya |
|
Type |
Cellular containership |
|
IMO-number |
9237486 |
|
Call sign |
A8EI3 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
35.881 t |
|
DWT |
41.646 t |
|
NT |
14.444 t |
|
Displacement |
57.251 t |
|
Number of 20ft containers |
In holds: 1.408 On deck: 1.683 Total: 3.091 |
|
Container capacity 14t |
2.430 |
|
Reefer capacity |
300 |
|
Length |
220,50 m overall 210,00 m between perpendiculars |
|
Breadth |
32,24 m |
|
Draught |
Summer: 12,20 m |
|
Keel to mast end |
53,82 m |
|
Depth |
18,70 m |
|
Speed |
Max: 23,1 knots Service: 22,3 knots |
|
Built |
2004 |
|
Keel laid |
25/07/2003 |
|
Launch date |
02/12/2003 |
|
Date of completion |
18/02/2004 |
|
Builder |
Szczecinska Nowa Stocznia S.A. Szczecin Poland |
|
Yard number |
B178-I-08 |
|
Hull material |
Steel |
|
Hull type |
Single hull, double bottom |
|
Bulkheads |
8 |
|
Number of decks |
1 |
|
Main engine |
1x Cegielski/MAN-B&W 7K80MC-C - 2 stroke 7 cylinder 800 x 2.300 mm combustion engine 25.228 kW / 34.300 hp at 104,0 rpm Builder: H. Cegielski Poznan - Poland |
|
Propellers |
1x Fixed pitch propeller - 5 blades |
|
Generators |
2x MAN-B&W 5L28/32H - main diesel engine each 1.050 kW at 720 rpm connected with generators each 1.250 kVA - 450 Volt 60 Hz 2x MAN-B&W 6L28/32H - main diesel engine each 1.050 kW at 720 rpm connected with generators each 1.499 kVA - 450 Volt 60 Hz Builder: H.Cegielski Poznań - Poland |
|
Emergency generator |
1x MAN D2866TE diesel generatorset 206 kW |
|
Bow thruster |
1x 1.200 kW |
|
Number of holds |
6 |
|
Cargo hold capacity |
Grain: 52.500 m³ Bale: 56.930 m³ |
|
Number of hatches |
11 Hatch 1: 12,60 x 23,00 m Hatches 2 -11: 12,60 x 28,20 m each |
|
Tank capacities |
Ballast: 15.468 m³ Fuel oil: 4.289 m³ |
|
Lifting equipment |
1x Crane - SWL 1,5 t 1x Crane - SWL 6,5 t 1x Crane - SWL 7,0 t |
|
Cargo gear |
3x Deck cranes - SWL 45,0 t each |
|
Crew size |
24 |
|
Manager |
Far Eastern Shipping Company Plc - Russia |
|
Previous managers |
Southern Shipmanagement Valparaiso |
|
Renamed |
2018 Fesco Galnegorsk Liberia, Monrovia - Call sign: 5LJC3 Reg. Owner: Richdale Investments Ltd., Limassol - Cyprus ISM manager: Fesco, Moscow - Russia |
|
Latest data adjustment |
17 July 2023 |
