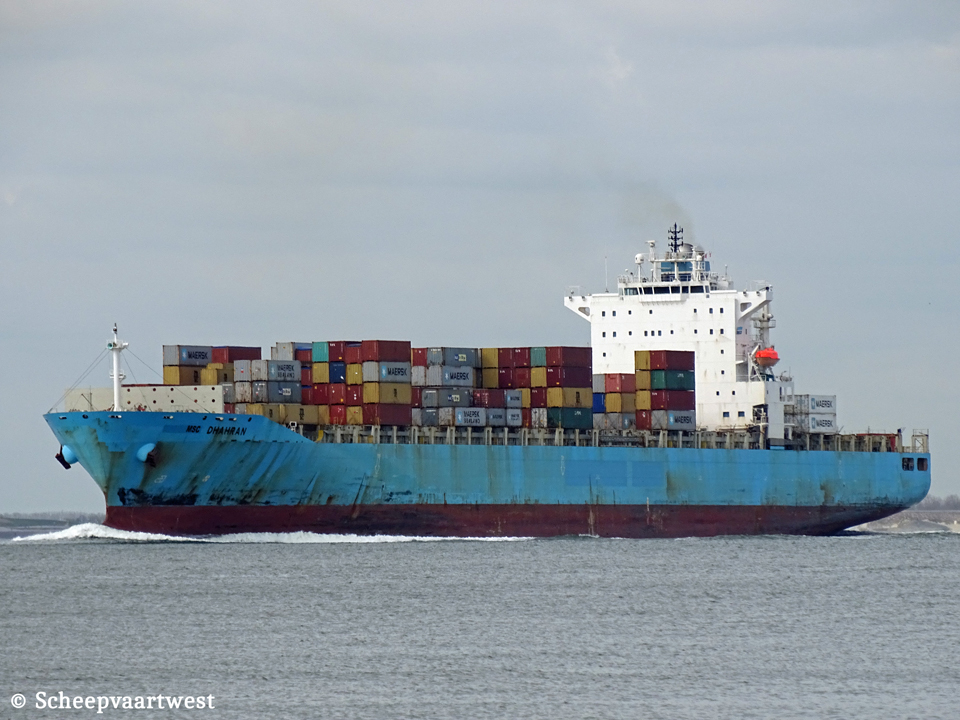

| Westerschelde 30 April 2016 |
|
Name |
MSC DHAHRAN |
|
Previous names |
2008 Build as: Las Vegas 2008 - 2008 Maersk Dhahran 2008 - 2015 Las Vegas |
|
Type |
Cellular containership - Panamax |
|
IMO-number |
9348699 |
|
Call sign |
A8PX5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
54.675 t |
|
DWT |
Summer: 68.578,8 t |
|
NT |
31.705 t |
|
Number of 20ft containers |
In hold: 2.281 On deck: 2.804 Total: 5.085 |
|
Container capacity 14t |
3.350 |
|
Reefer points |
482 |
|
Length |
294,04 m overall 283,00 m between perpendiculars |
|
Breadth |
32,20 m |
|
Draught |
Summer: 13,52 m |
|
Reg. dimensions L x B x D |
283,12 x 32,20 x 18,93 m |
|
Rule dimensions L x B x D |
283,12 x 32,20 x 21,60 m |
|
Keel to mast end |
55,90 m |
|
Freeboard |
Summer: 3.939 m |
|
Depth |
21,60 m |
|
Speed |
Max: 24,28 knots |
|
Built |
2008 |
|
Keel laid |
16/04/2008 |
|
Launch date |
28/05/2008 |
|
Date of completion |
14/07/2008 |
|
Builder |
Hanjin Heavy Industries & Construction Co., Ltd. Busan South Korea |
|
Yard number |
N179 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 9K90MC-C - 2 stroke single acting 9 cylinder 900 x 2.300 mm combustion engine Mcr 41.130 kW / 55.920 hp at 104,0 rpm Build: 03/2006 Builder: Hyundai Heavy Industries Co Ltd. - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 104,0 rpm |
|
Boilers |
1x Auxiliary Boiler CPB - 9, kg/cm² Builder: Kangrim Heavy Industrial Co., Ltd. |
|
Generators |
4x Hyundai Himsen 7H25/33 - 4 stroke 7 cylinder 250 x 330 mm diesel engines each Mcr 2.100 kW connected with generators each 1.790 ekW 450 Volt Builder: Hyundai Himsen |
|
Bow thruster |
1x Tunnel thruster 1.900 kW / 2.583 bhp, forward |
|
Number of holds |
6 |
|
Tank capacities |
Fuel oil: 6.779,7 m³ Fresh water: 364,4 m³ Water ballast: 18.541,9 m³ |
|
Cargo gear |
Gearless |
|
Owner |
NSC Holding GmbH & Cie. KG Van-der-Smissen-Straße 9 22767 Hamburg Germany |
|
Renamed |
2016 Maerks Dhakaran Liberia, Monrovia - Call sign: A8PX5 |
|
Latest data adjustment |
24 April 2023 |
