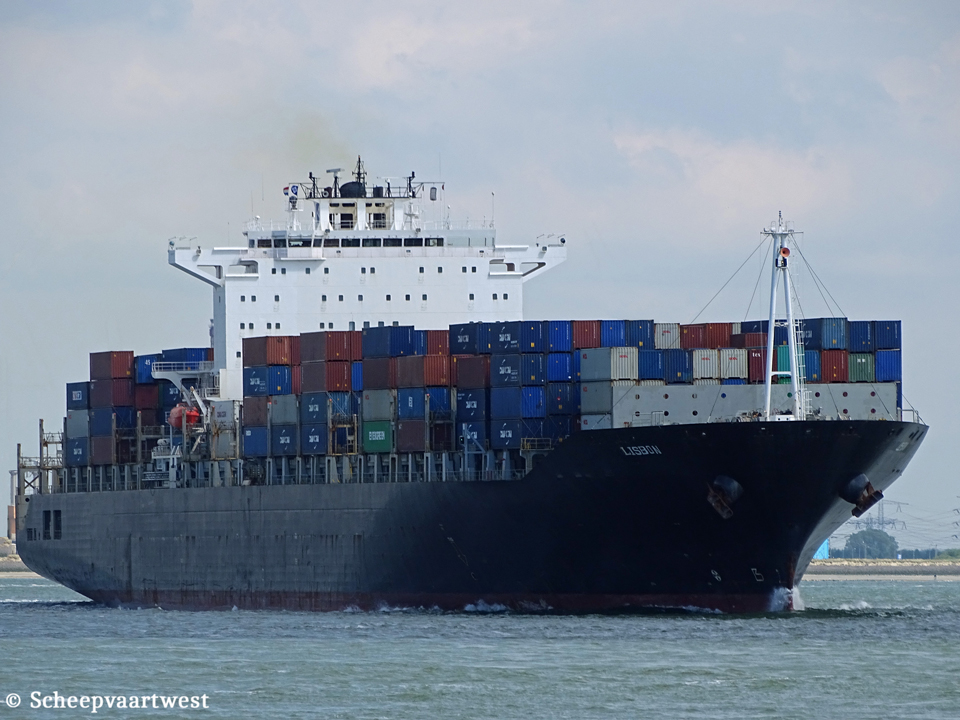

| Westerschelde 09 August 2017 |
 |
|
| Westerschelde 20/05/17 | |
|
Name |
LISBON |
|
Previous names |
2003 - 2014 Hanjin Lisbon 2014 - 2016 Lisbon 2016 - 2017 ANL Wandin |
|
Type |
Cellular containership - Panamax |
|
IMO-number |
9248148 |
|
Call sign |
CQGZ |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
2003 - 2016 Germany, Hamburg - Call sign: DCCM2 |
|
GT |
65.918 t |
|
DWT |
50.758 t |
|
NT |
36.896 t |
|
Number of 20ft containers |
6.078 |
|
Container capacity 14t |
4.172 |
|
Reefer capacity |
500 |
|
Length |
278,88 m overall 265,24 m registered |
|
Breadth |
40,30 m registered |
|
Draught |
Summer: 14,00 m |
|
Forecastle |
13,65 m |
|
Depth |
19,28 m moulded |
|
Speed |
Max: 26,3 knots |
|
Built |
2003 |
|
Keel laid |
02/12/2002 |
|
Launch date |
08/03/2003 |
|
Date of completion |
06/05/2003 |
|
Builder |
Hanjin Heavy Industries & Construction Co., Ltd. Busan South Korea |
|
Yard number |
N-104 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
8 |
|
Continuous decks |
2 |
|
Main engine |
1x Hyundai/Sulzer 10RTA96C - 2 stroke 10 cylinder 960 x 2.500 mm combustion engine 54.900 kW / 74.643 hp at 100,0 rpm Build: 2002 Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 100,0 rpm |
|
Boilers |
Steam boiler, oil fired - 9,8 bar Heating surface: 137,8 m² Steam boiler, exhaust gas heated - 9,8 bar Heating surface: 349,0 m² Build: 2002 Manufacturer: KangRim Heavy Industries Co., Ltd. (1st Factory) |
|
Electric installations |
1x Plant 440/220 V - 3.500 kVA 1x Plant 440/220 V - 3.500 kVA 1x Plant 440/220 V - 3.500 kVA 1x Plant 440 V - 688 kVA 1x Plant 24 V - 130 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 400 Ah |
|
Generators |
3x Wärtsilä 8R32LN main diesel generatorsets each 3.500 kVA |
|
Emergency generator |
1x Caterpillar 3412 DITA Diesel generatorset 688 kVA |
|
Compressed air receivers |
2x Receivers each 22.000 litres - 33,0 bar 1x Receiver 200 litres - 33,0 bar 1x Receiver 125 litres - 33,0 bar 1x Receiver 350 litres - 8,8 bar 2x Receivers each 15 litres - 7,7 bar |
|
Bow thruster |
1x Transverse thruster 2.000 kW, forward |
|
Tank capacities |
Ballast: 14.700,3 m³ Fuel: 8.270 m³ |
|
Anchor equipment |
3x Anchors weight each 16.100 kg Chain length: 742,50 m Diameter: 97 mm |
|
Crew size |
23 |
|
ISM & commercial manager |
NSB Niederelbe Schiffahrtsgesellschaft mbH & Co. KG Harburger Strasse 47-51 21614 Buxtehude Germany |
|
Registered owner |
Bereederungs- und Schiffahrtsges. mbH & Co. MS "LISBON" KG Care of NSB Niederelbe Schiffahrtsgesellschaft mbH & Co KG Harburger Strasse 47-51 21614 Buxtehude Germany |
|
Renamed |
06/2023 MSC Pilar VI Liberia, Monrovia - Call sign: 5LLT8 Owner: Ianeira Oceanway Ltd. Manager: MSC Shipmanagement Limited |
|
Latest data adjustment |
12 September 2023 |
