| Westerschelde 17 February 2018 |
|
Name |

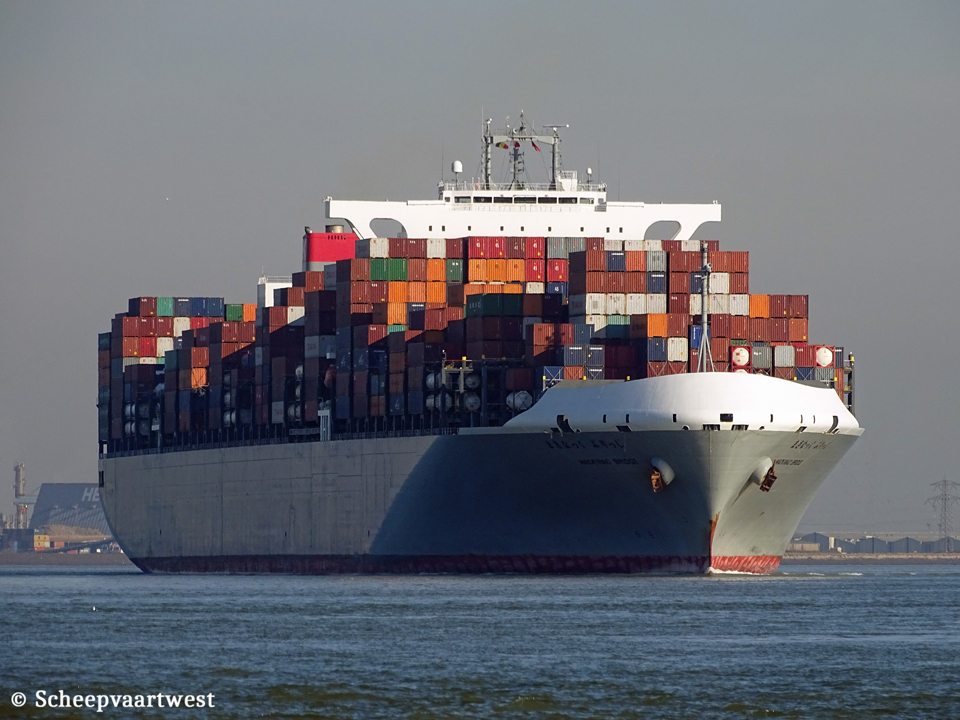

MACKINAC BRIDGE |
|
Type |
Cellular containership |
|
IMO-number |
9689603 |
|
Call sign |
7JUR |
|
Flag |
Japan |
|
Port of registry |
Kobe |
|
GRT |
153.453 t |
|
DWT |
146.453 t |
|
NRT |
63.410 t |
|
Number of 20ft containers |
13.870 t |
|
Length |
365,94 m overall |
|
Breadth |
51,20 m moulded |
|
Draught |
Summer: 15,52 m |
|
Moulded L x B x D |
350,00 x 51,20 x 23,20 m |
|
Registered L x B x D |
356,38 x 51,20 x 25,83 m |
|
Freeboard |
Summer: 7.716 mm |
|
Depth |
23,20 m moulded |
|
Speed |
Max: 24,9 knots |
|
Built |
2015 |
|
Keel laid |
16/06/2014 |
|
Launch date |
08/05/2015 |
|
Date of completion |
19/08/2015 |
|
Builder |
Imabari Shipbuilding Co., Ltd. Hiroshima Shipyard Mihara Japan |
|
Yard number |
2535 |
|
Hull material |
Steel |
|
Hull type |
Single hull double bottom |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W/Mitsui 11S90ME-C9.2 - 2 stroke single acting 11 cylinder 9600 x 3.260 mm combustion engine 48.900 kW at 76,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 1.050 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 0,80 MPa Evaporation: 10,08 t/h Manufacturer: Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
5x Generatorsets total 17.800 kVA |
|
Tank capacities |
Fuel oil: 10.276,61 m³ Fresh water: 343,44 m³ |
|
Cargo gear |
Gearless |
|
Operator |
K-Line - Kawasaki Kisen Kaisha Tokyo Japan |
|
Owner |
Kawasaki Kisen Kaisha Ltd. |
|
Renamed |
2020 One MacKinac Japan, Kobe - Call sign: 7JUR Registered owner: Sachikawa Kisen Co., Ltd. Manager: "K" Line Ship Management (Singapore) Pte Ltd. |
|
Latest data adjustment |
18 April 2024 |
