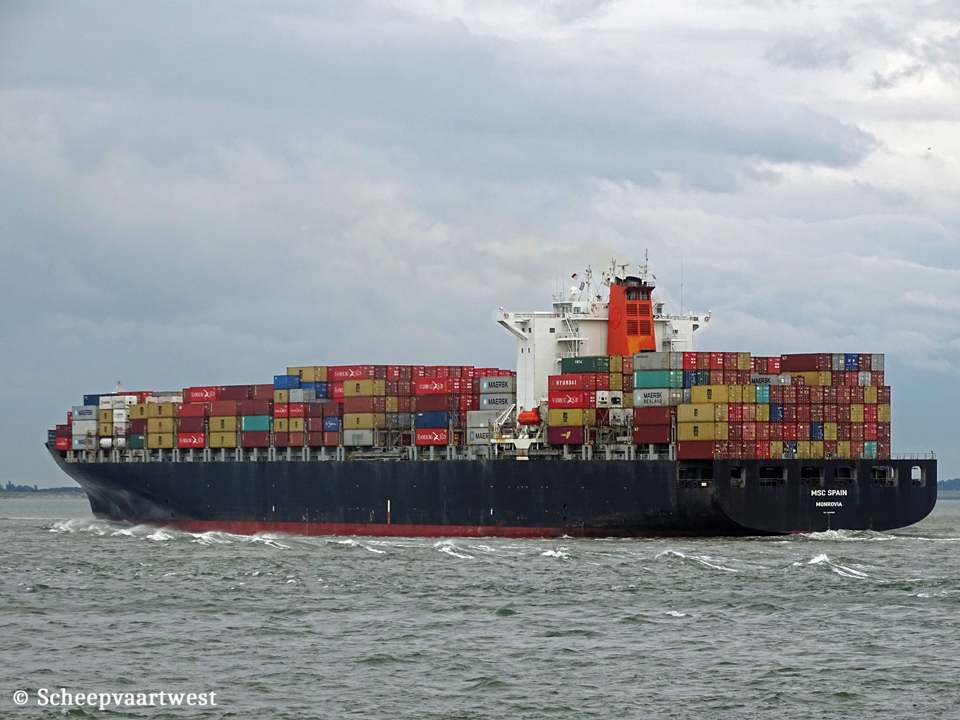

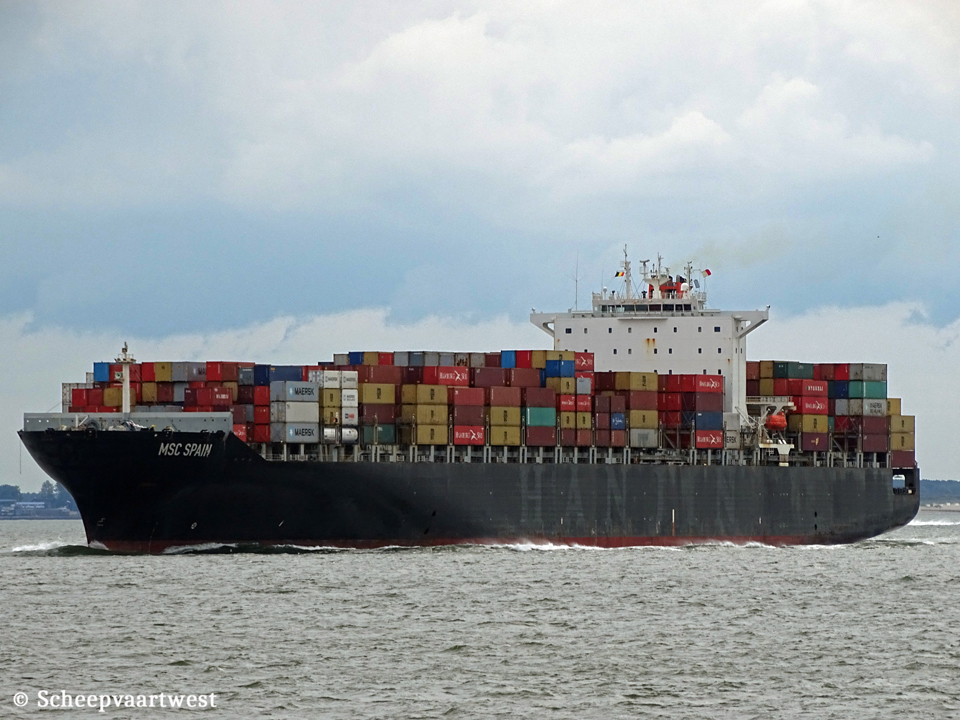

| Westerschelde 22 July 2017 |
 |
|
| Westerschelde 22/07/17 | |
|
Name |
MSC SPAIN |
|
Previous names |
2008 - 2017 Hanjin Shenzhen 2017 - 2019 SM Hong Kong |
|
Type |
Cellular containership |
|
IMO-number |
9347437 |
|
Call sign |
D5NP5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2008 - 2017 Republic of panama, Panama City |
|
GT |
75.488 t |
|
DWT |
80.855 t |
|
NT |
44.253 t |
|
Light ship |
26.823 t |
|
Number of 20ft containers |
In hold: 3.084 On deck: 3.538 Total: 6.622 |
|
Container capacity 14t |
4.840 |
|
Reefer capacity |
600 |
|
Length |
304,07 m overall |
|
Breadth |
40,00 m |
|
Draught |
Summer: 14,22 m |
|
Reg. dimensions L x B x D |
294,11 x 40,00 x 20,23 m |
|
Rule dimensions L x B x D |
288,45 x 40,00 x 24,60 m |
|
Keel to mast end |
59,54 m |
|
Freeboard |
Summer: 6.049 mm |
|
Depth |
24,60 m |
|
Speed |
Max: 26,5 knots |
|
Built |
2008 |
|
Keel laid |
28/09/2007 |
|
Launch date |
07/12/2007 |
|
Date of completion |
24/01/2008 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. Ulsan South Korea |
|
Yard number |
HDHI 1808 |
|
Hull material |
Steel |
|
Watertight bulkheads |
Transverse: 10 |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 12RT-flex96C - 2 stroke single acting 12 cylinder 960 x 2.500 mm combustion engine 68.640 kW / 93.323 hp at 102,0 rpm Build: 01/10/2007 Builder: HD Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division, Ulsan - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 102,0 rpm |
|
Boilers |
1x Auxiliary boiler WTB - 8,8 kg/cm² Heating surface: 76,0 m² 1x Auxiliary Boiler EGE - 11,8 kg/cm² Heating surface: 457,7 m² Build: 01/08/2007 Builder: Kangrim Heavy Industrial Co., Ltd., Changwon, South Korea |
|
Generators |
3x MAN-B&W 8L27/38 diesel generatorsets each 2.280 kW - 450 Volt |
|
Bow thruster |
1x 2.500 kW / 3.399 bhp |
|
Number of hatchways |
Hatch 1: 25,20 x 20,43 m Hatch 2: 25,20 x 33,19 m Hatch 3: 25,20 x 35,80 m Hatch 4: 25,20 x 35,80 m Hatch 5: 25,20 x 35,80 m Hatch 6: 25,20 x 35,80 m Hatch 7: 25,20 x 35,80 m Hatch 8: 37,80 x 35,80 m |
|
Tank capacities |
Fuel oil: 9.674,4 m³ Fresh water: 700,7 m³ Water ballast: 23.006,1 m³ |
|
Cargo gear |
Gearless |
|
Crew |
28 |
|
Manager |
KLC SM Co. Ltd. Busan South Korea |
|
Operator |
MSC - Mediterranean Shipping Company |
|
Registered owner |
Korea Tonnage N° 22 Shipping South Korea |
|
Previous owners |
2008 - 2017 Hanjin Shenzhen - Hanjin Shipping, Seoul - South Korea |
|
Renamed |
2017 SM Hong Kong Liberia, Monrovia - Call sign: D5NP5 Company: KLC SM Co., Ltd., Busan - South Korea 2020 MMTC Colomb Korean name: 케이엠티씨 콜롬보 South Korea, Jeju - Call sign: D7VN Owner: Korea Marine Transport Co., Ltd., Seoul - South Korea Commercial manager: Korea Marine Transport Co., Ltd., Seoul - South Korea ISM manager: KMTC Ship Management Co., Ltd., Busan - South Korea |
|
Latest data adjustment |
16 August 2024 |
