| Westerschelde 26 August 2017 |
|
Name |

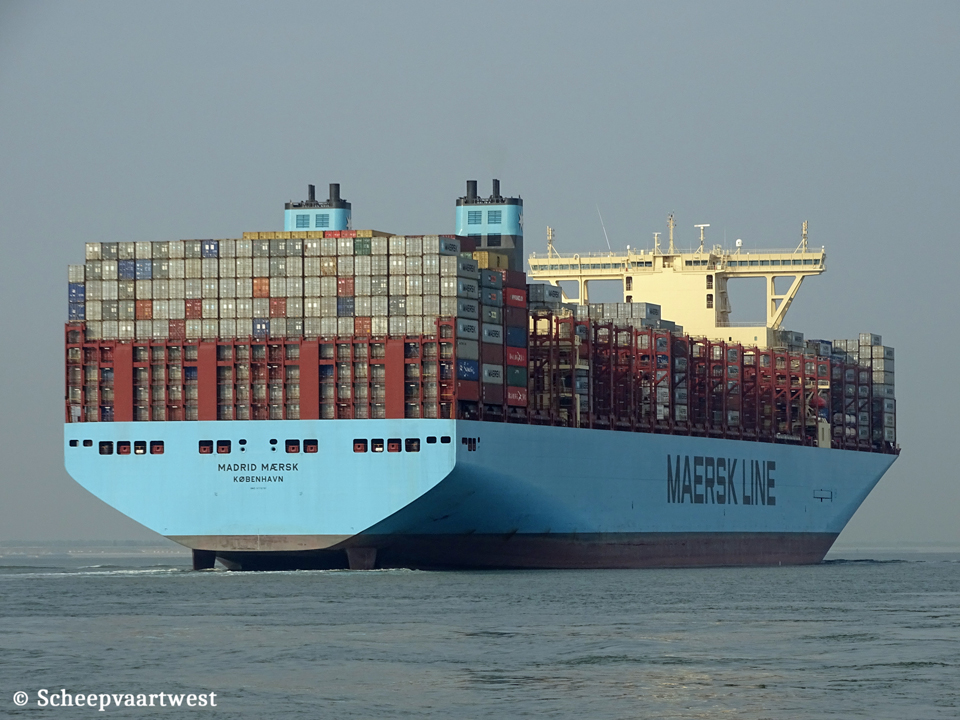

MADRID MAERSK (MADRID MÆRSK) |
|
Type |
Cellular containership - Carriage of dangerous goods |
|
IMO-number |
9778791 |
|
Call sign |
OWMD2 |
|
Flag |
Denmark |
|
Port of registry |
København |
|
GT |
214.286 t Suez: 220.782,07 t |
|
DWT |
190.325,6 t |
|
NT |
88.997 Suez: 195.503,98 t |
|
Displacement |
255.903 t |
|
Number of 20ft containers |
20.568 |
|
Container capacity 14t |
13.500 |
|
Reefer capacity |
1.000 |
|
Length |
399,00 m overall 378,50 m between perpendiculars |
|
Breadth |
85,60 m moulded |
|
Draught |
Summer: 16,50 m |
|
Freeboard |
6.830 mm |
|
Depth |
33,20 m moulded |
|
Speed |
Max: 18,5 knots |
|
Keel laid |
20/11/2015 |
|
Launch date |
10/12/2016 |
|
Delivery date |
07/04/2017 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Co., Ltd. 3370 Geoje-Daero, Geoje-Si South Korea |
|
Yard number |
4302 |
|
Hull material |
Steel |
|
Main engine |
2x Doosan-MAN 7G80ME-C9.5-TII - 2 stroke single acting 7 cylinder 800 x 3.720 mm combustion engine each 31.000 kW at 70,5 rpm Total: 62.000 kW / 84.296 hp Build: 2017 Manufacturer: Doosan Engine Co., Ltd. |
|
Propellers |
2x Fixed Pitch Propeller Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
1x Composite boiler Aalborg OC TCI - 9,0 MPa 2x H.P. Exhaust gas economize Aalborg XW-TG. - 16,0 MPa each 2x L.P. Exhaust gas economizer Aalborg XW-TG - 8,0 MPa each Manufacturer: Alfa Laval Qingdao Ltd. |
|
Shaft generator |
2x 2.000 kW each Manufacturer: GE Energy Power Conversion |
|
Generators |
2x Main diesel generatorsets each 3.840 kW 2x Main diesel generatorsets each 2.880 kW 1x Turbo gas generator 4.600 kW (Peter Brotherhood Combi Steam / Exhaust gas driven) manufacturer: HHI Electro Electric System |
|
Emergency generator |
1x Diesel generatorset 500 kW |
|
Bow thruster |
2x Tunnel thruster, Forward |
|
Cargo hold capacity |
451.592,40 m³ |
|
Tank capacities |
Ballast: 63.868,80 m³ Fuel oil: 14.378,30 m³ Lub oil: 579,50 m³ Diesel oil: 515,20 m³ Fresh water: 895,70 m³ |
|
Lifting equipment |
1x Engine room crane Port - SWL 10,0 t 1x Engine room crane Starboard - SWL 10,0 t 1x Provision crane Port - SWL 2,0 t 1xProvision crane Starboard - SWL 5,0 t Manufacturer: Oriental Prec & Eng'g Co. |
|
Cargo gear |
Gearless |
|
Crew |
34 |
|
ISM & commercial manager |
Maersk A/S Esplanaden 50 1263 København K Denmark |
|
Operator |
Maersk Line |
|
Registered owner |
Maersk A/S Esplanaden 50 1263 København K Denmark |
|
Latest data adjustment |
20 September 2024 |
