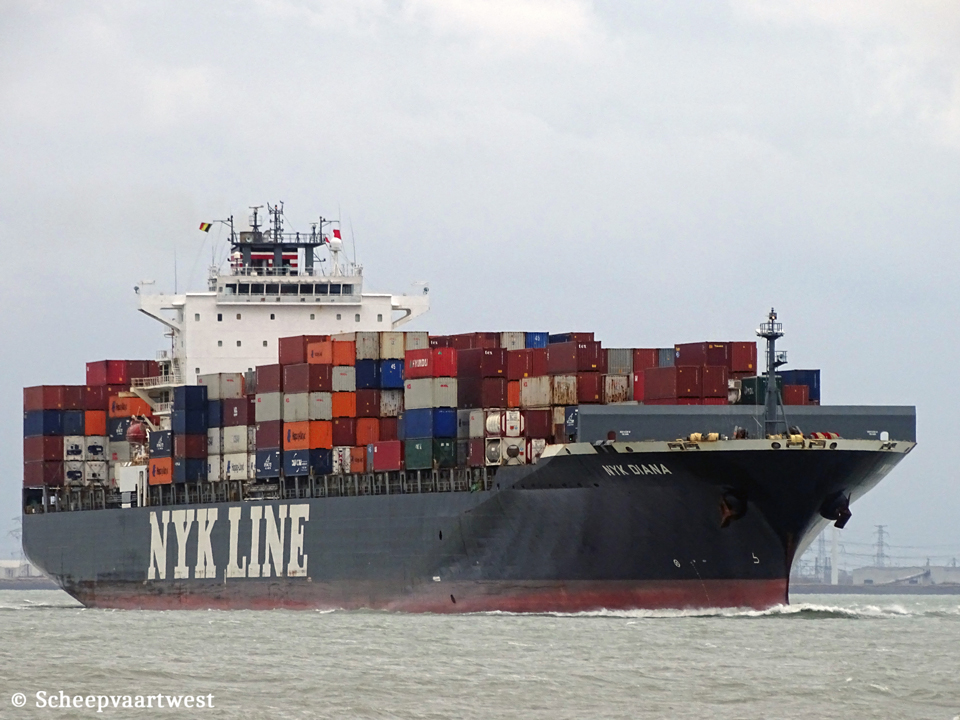

| Westerschelde 20 March 2017 |
|
Name |
NYK DIANA |
|
Type |
Cellular containership - Panamax |
|
IMO-number |
9337688 |
|
Call sign |
3EOS4 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
55.457 |
|
DWT |
65.976 t |
|
NT |
23.203 |
|
Number of 20ft containers |
4.888 |
|
Number of 40ft containers |
2.413 |
|
Reefer capacity |
330 |
|
Length |
294,00 m |
|
Breadth |
32,20 m moulded |
|
Draught |
Summer: 13,52 m |
|
Moulded L x B x D |
283,20 x 32,20 x 21,80 m |
|
Registered L x B x D |
285,79 x 32,20 x 21,80 m |
|
Freeboard |
Summer: 3.867 mm |
|
Depth |
21,80 m moulded |
|
Speed |
Max: 27,6 knots |
|
Build |
2008 |
|
Keel laid |
28/09/2007 |
|
Launch date |
07/12/2007 |
|
Date of completion |
21/01/2008 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. Ulsan South Korea |
|
Yard number |
1790 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W/Hyundai 9K98MC-C - 2 stroke single acting 9 cylinder 980 x 2.400 mm combustion engine 51.390 kW / 69.870 hp at 104,0 rpm Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 880 mm |
|
Propellers |
1x Fixed keyless propeller |
|
Boilers |
1x Auxiliary vertical boiler - 0,78 MPa Evaporation: 9,24 t/h Manufacturer: Kang Rim Ind. Co.,Ltd. |
|
Generators |
5x Generatorsets total 8.688 kVA |
|
Tank capacities |
Fuel oil: 6.999 m³ Fresh water: 456 m³ |
|
Manager |
NYK Shipmanagement Pte Ltd. 1 HarbourFront Place #15-01 HarbourFront Tower One 098933 Singapore City Republic of Singapore |
|
Operator |
ONE - Ocean Network Express |
|
Registered owner |
NYK Diana Corporation |
|
Latest data adjustment |
24 December 2024 |
