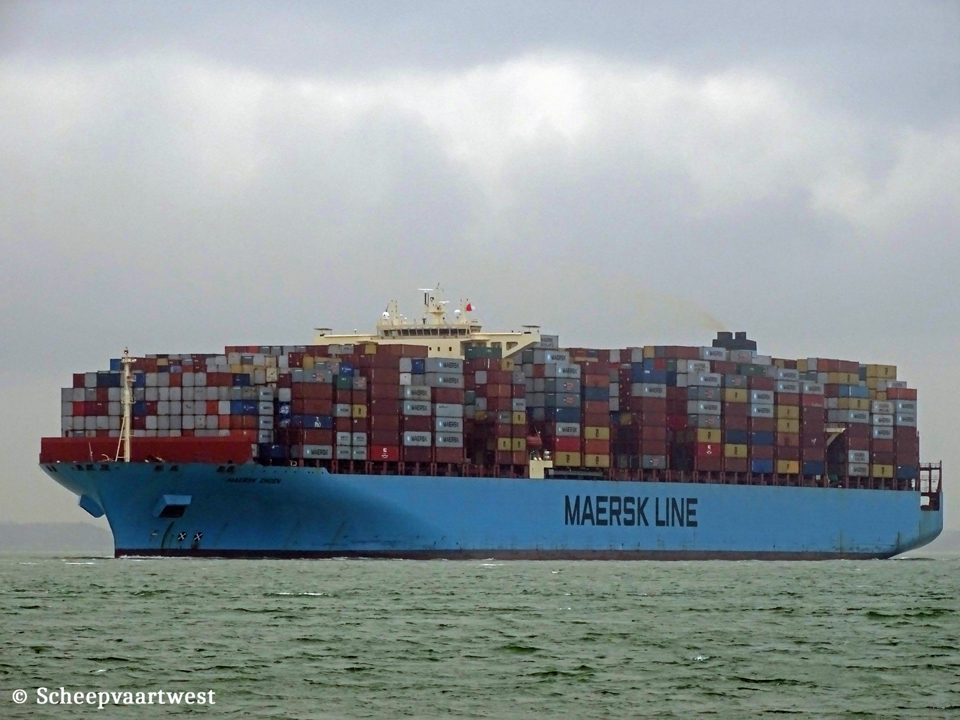

| Westerschelde 21 February 2017 |
|
Name |
MAERSK EMDEN |
|
Previous names |
Launch as: Maersk Emden 07/2010 - 12/2017 Ruby Rickmers |
|
Type |
Cellular Containership |
|
IMO-number |
9456769 |
|
Call sign |
OXLK2 |
|
Flag |
Denmark |
|
Port of registry |
København |
|
Previous flags |
07/2010 - 12/2017 Marshall Islands, Majuro - Call sign: V7UG8 |
|
GT |
141.716 |
|
DWT |
148.713 t |
|
NT |
63.729 |
|
Number of 20ft containers |
13.092 |
|
Container capacity 14t |
9.092 |
|
Reefer capacity |
800 |
|
Length |
366,47 m overall 350,00 m between perpendiculars |
|
Breadth |
48,26 m extreme |
|
Draught |
Summer: 15,50 m |
|
Depth |
29,85 m |
|
Speed |
Max: 24,7 knots |
|
Build |
2010 |
|
Keel laid |
17/02/2010 |
|
Launch date |
14/05/2010 |
|
Date of completion |
09/07/2010 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. 1, Cheonha-dong, Dong-gu Ulsan, Kyongsang-namdo Republic of Korea |
|
Yard number |
2151 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
12 |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/Wärtsilä 12RT-flex96C 12RT-flex 96C-B - 2 stroke 12 cylinder combustion engine 68.640 kW / 93.350 bhp Manufacturer: Hyundai Heavy Industries Co., Ltd. 1, Jeonha-dong, Dong-gu Ulsan, Kyongsang-namdo Republic of Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 102,0 rpm |
|
Boilers |
Heating surface: 73,4 m² Steam boiler, exhaust gas heated - 11,77 bar Heating surface: 484,0 m² Year of manufacture: 2010 Manufacturer: KangRim Heavy Industries Co., Ltd. 40, Wongnam-dong Changwon, Kyongsang-namdo Republic of Korea |
|
Electric installations |
5x Plants each 6.600 V - 3.600 kVA 1x Plant 450 V - 370 kVA 2x Plants each 24 V - 7 Ah 1x Plant 24 V - 12 Ah 12x Plants each 24 V - 200 Ah 12x Plants each 24 V -300 Ah |
|
Generators |
5x Main diesel generatorsets each 3.600 kVA / 2.880 kW |
|
Emergency generator |
1x Diesel generatorset 296 kW / 370 kVA |
|
Compressed air receivers |
2x Receivers each16.800 litres - 29,4 bar 1x Receiver 480 litres - 29,4 bar 1x Receiver 300 litres - 8,8 bar 1x Receiver 2.000 litres - 8,6 bar |
|
Bow thruster |
2x Transverse thruster each 1.800 kW, forward |
|
Anchor equipment |
3x Anchors weight each 24.500 kg Chain length: 770,00 m |
|
Cargo gear |
Gearless |
|
Manager |
Maersk A/S Esplanaden 50 1263 København K Denmark |
|
Previous names & managers |
07/2010 - 12/2017 Ruby Rickmers - Chasme Navigation Rickmers Shipmanagement Pte Ltd. - Republic Singapore |
|
Registered owner |
Ocean Orchid Shipping Ltd. c/o: Maersk A/S Esplanaden 50 1098 Copenhagen K Denmark |
|
Latest data adjustment |
06 January 2025 |
