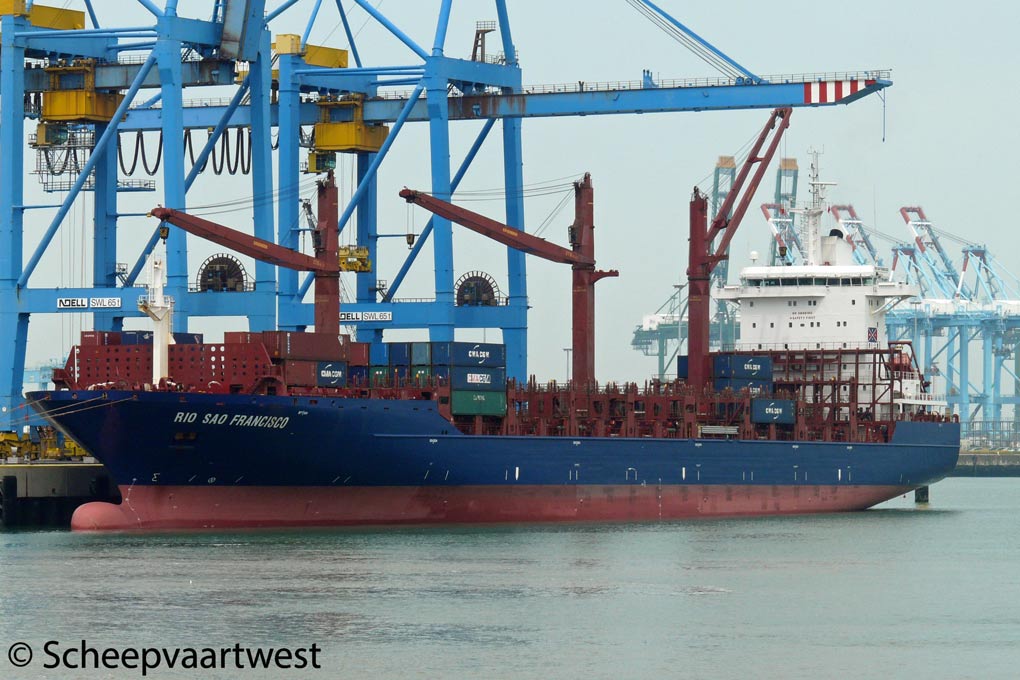

| Zeebrugge 02 July 2013 |
 |
 |
|

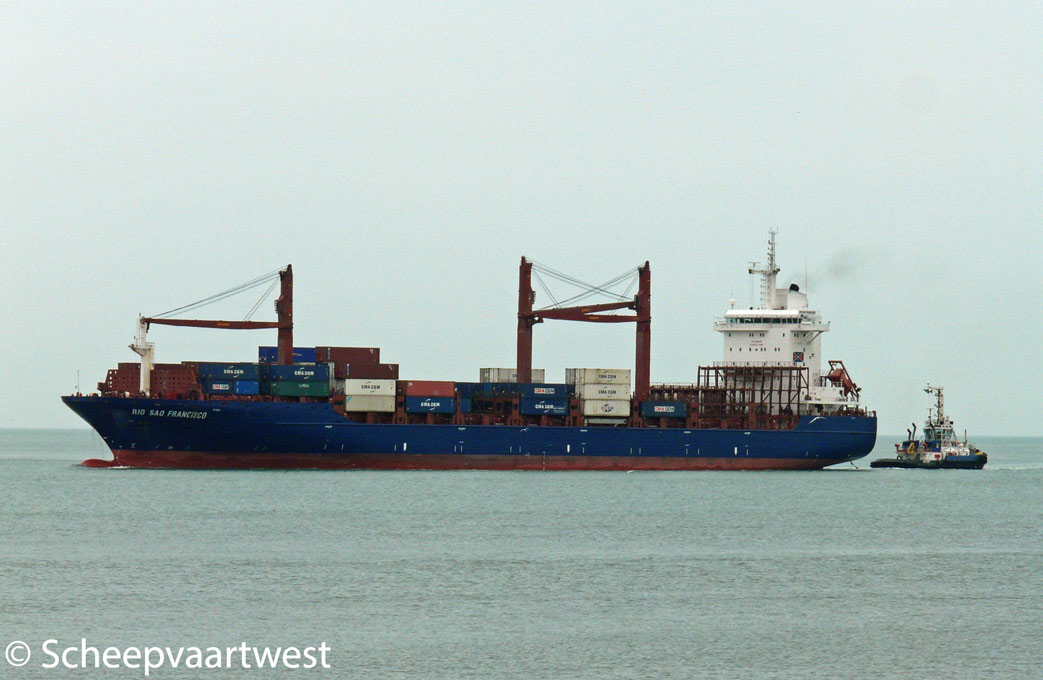

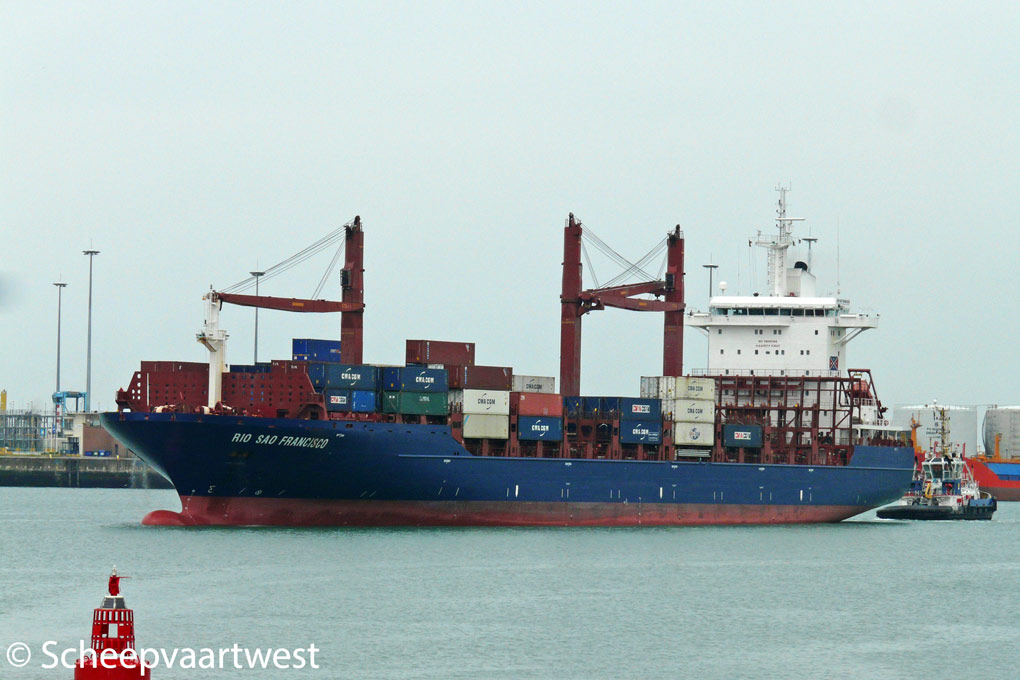

| Zeebrugge 02/07/13 | Zeebrugge 18/06/13 |
|
Name |
RIO SAO FRANCISCO |
|
Previous names |
CMA CGM Comoe |
|
Type |
Containership |
|
IMO-number |
9339868 |
|
Call sign |
A8OE9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
23.633 t |
|
DWT |
27.155 t |
|
NT |
10.899 t |
|
Number of 20ft containers |
1.853 |
|
Container capacity 14t |
1.620 |
|
Reefer capacity |
510 |
|
Length |
190,94 m overall 182,35 m registered |
|
Breadth |
28,50 m registered |
|
Draught |
11,50 m |
|
Forecastle |
41,68 m |
|
Poop |
15,99 m |
|
Freeboard |
5.330 mm |
|
Depth |
16,80 m moulded |
|
Speed |
20,8 knots |
|
Deployment |
Baltic Russia |
|
Built |
2008 |
|
Keel laid |
01.03.2007 |
|
Launch date |
02.07.2007 |
|
Date of completion |
01.02.2008 |
|
Builder |
Zhejiang Shipbuilding Co., Ltd. |
|
Yard number |
ZJB04-128 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
10 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 8S60ME-C - 2 stroke 8 cylinder 600 x 2.400 mm diesel engine - 19.040 kW at 105,0 rpm Year of manufacture: 2007 Manufacturer: Hudong Heavy Machinery Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 105,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 21,8 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 274,0 m² Year of manufacture: 2007 Manufacturer: Saacke Qingdao Marine Boiler Co., Ltd. |
|
Electric installations |
4x Plants 450 V - 1.820 kVA 1x Plant 450 V - 250 kVA |
|
Generators |
4x Main diesel generatorsets each 1.820 kVA / 1.456 kW |
|
Emergency generator |
1x Diesel generatorset 250 kVA |
|
Compressed air receivers |
2x Receivers each 6.000 litres - 33,0 bar 1x Receiver 400 litres - 33,0 bar 1x Receiver 1.500 litres - 7,0 bar |
|
Bow thruster |
1x Transverse thruster - 1.060 kW, forward |
|
Anchor equipment |
3x Anchors weight each 8.700 kg Chain length: 632,50 m |
|
Cargo gear |
3x Cranes each SWL 45,0 t |
|
Crew size |
25 |
|
Manager |
MPC Münchmeyer Petersen Steamship GmbH & Co. KG |
|
Operator |
CMA CGM |
|
Registered owner |
MS "Rio Sao Francisco" Privatplatzierung Schifffahrts GmbH & Co. KG |
|
Last update |
20 June 2013 |
