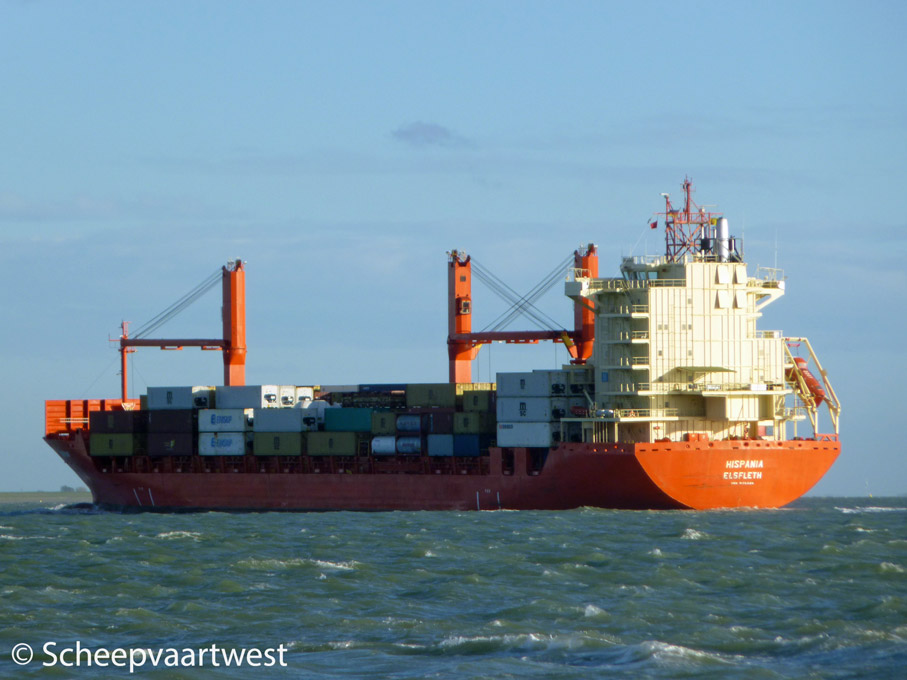

Hispania 01
Westerschelde 03 November 2012



Name

HISPANIA

Previous names

1998 - 12.2003 Columbus Coromandel

2003 - 10.2006 Cap Reinga

2006 - 11.2009 Alianca Andes

Type

Geared cellular container

IMO-number

9176682

Call sign

DDGY

Flag

Germany

Port of registry

Elsfleth

GT

16.211 t

DWT

20.976 t

NT

8.328 t

Number containers

Deck: 1.063 units 20' or 530 units 40' + 3 units 20'

Holds: 588 units 20' or 285 units 40' + 18 units 20'

Total: 1.651 units 20' or 815 units 40' + 21 units 20'

Container capacity 14t

1.121

Reefer capacity

227 Reefer sockets CEE model supplying

440 V, 60 cycles, 3 phases

Length

168,34 m overall

156,80 m registered

Breadth

27,40 m registered

Draught

9,90 m

Forecastle

23,31 m

Poop

11,82 m

Freeboard

3.630 mm

Depth to upper deck

13,50 m

Speed

21,0 knots

Built

1998

Keel laid

30.04.1998

Launch date

23.10.1998

Date of completion

12.1998

Builder

Thyssen Nordseewerke GmbH
Zum Zungenkai
26725 Emden
Federal Republic of Germany

Yard number

522

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

7

Continuous decks

2

Main engine

1x Mitshubishi 8 UEC 60 LSA - 2 stroke 8 cylinder 600 x 2.200 mm diesel engine - 16.000 kW at 110,0 rpm

Year of manufacture: 1998

Manufacturer: Mitsubishi Heavy Industries, Ltd.
12, Nishiki-cho, Naka-ku
Yokohama ,231-8715 Kanagawa-ken
Japan

Propellers

1x Controllable pitch propeller, aft at 110,0 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 45,0 m²

1x Steam boiler, exhaust gas heated - 10,0 bar

Heating surface: 263,0 m²

Year of manufacture: 1998

Manufacturer: Selnikel Isitma ve Klima Cihazlari Sanayii A.S.
Tunus Cad. 5/8
Ankara
Turkey

Electric installations

3x Plants each 440/220 V - 937,5 kVA

1x Plant 440 V - 1.750 kVA

1x Plant 440 V - 162,5 kVA

Shaft generator

1x 1.750 kVA / 1.400 kW

Generators

3x Yanmar M220 Al-Sn main diesel generatorsets each 937,5 kVA / 750 kW at 900 rpm

Emergency generator

1x Diesel generatorset 162,5 kVA

Compressed air receivers

2x Receivers each 4.000 litres - 30,0 bar

1x Receiver 30 litres - 30,0 bar

1x Receiver 750 litres - 10,0 bar

1x Receiver 60 litres - 10,0 bar

Bow thruster

1x Transverse thruster ULSTEIN - 800 kW, forward

Number of hatches

8x Hatches covered by steel pontoons up to 26,0 t piece weight.

All pontoons can be worked independently without sequence.

Dimension of hatches



No. 1 (twin hatch): 12,70 x 7,95 m

No. 2 (triple hatch): 12,80 x 18,06 m

Nos. 3-8 (triple hatches): 12,80 x 23,14 m

Tank capacities

Fuel: 1.992 m³

Diesel oil: 360 m³

Ballast water: 5.311 m³

Anchor equipment

3x Anchors weight each 6.900 kg

Chain length: 605,00 m

Cargo gear

3x Cranes each

SWL 40,0 t at 25,40 m

SWL 36,0 t at 28,00 m

Manager

MARTIME Gesellschaft für Maritime Dienstleistungen mbH
An der Kaje 1
26931 Elsfleth
Federal Republic of Germany

Registered owner

MS "HISPANIA" Transcon Beteiligungsges. mbH & Co. KG
Rathausplatz 7
26931 Elsfleth
Federal Republic of Germany

Sister ships

Fresena

Fiducia

Last update

21.05.2013
