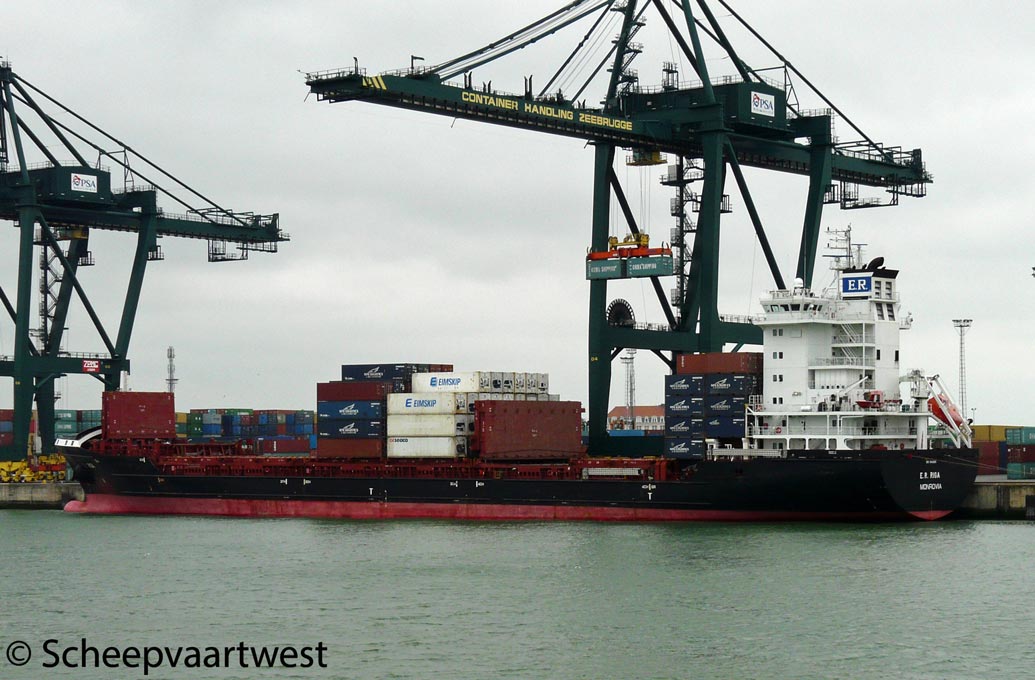

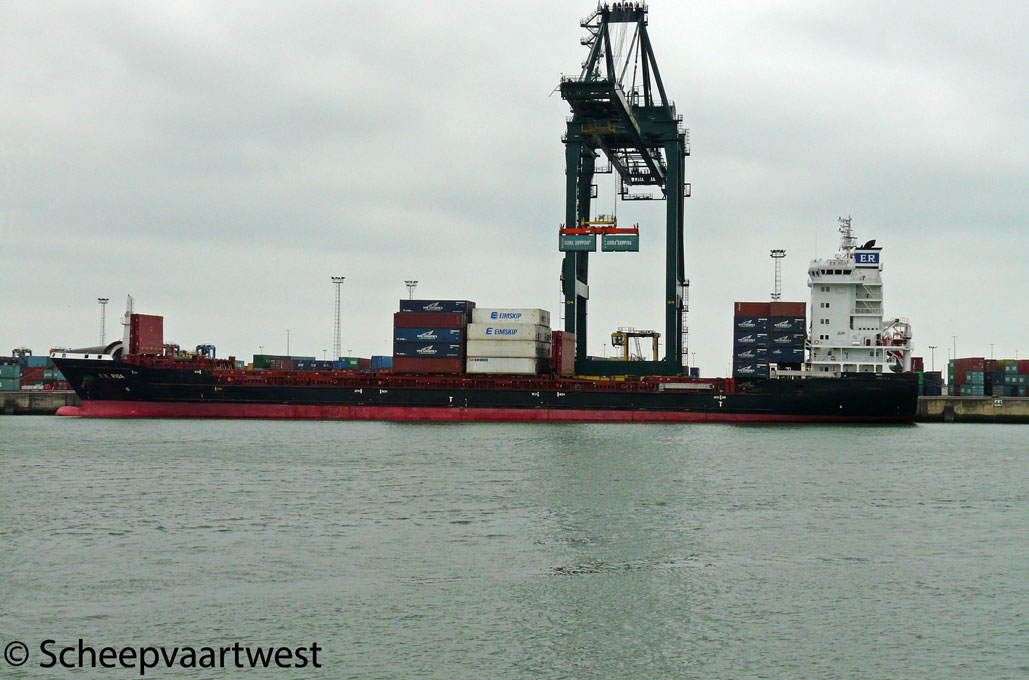

| Zeebrugge 04 July 2013 |
 |
| Zeebrugge 04/07/13 |
|
Name |
E.R. Riga |
|
Previous names |
2010 - 06.2012 Leguan |
|
Type |
Cellular container ship |
|
IMO-number |
9448669 |
|
Call sign |
A8UQ9 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
12.514 t |
|
DWT |
14.237 t |
|
NT |
5.384 t |
|
Number of 20ft containers |
On deck: 728 In hold: 372 Total: 1.100 |
|
Container capacity 14t |
730 |
|
Reefer capacity |
On deck: 166 in hold: 84 Total: 250 |
|
Length |
157,92 m overall 150,08 m registered |
|
Breadth |
23,50 m |
|
Draught |
Summer: 8,60 m |
|
Forecastle |
27,58 m |
|
Poop |
14,70 m |
|
Depth |
11,90 m |
|
Speed |
18,3 knots |
|
Built |
2010 |
|
Keel laid |
23.05.2008 |
|
Launch date |
08.01.2009 |
|
Date of completion |
27.09.2010 |
|
Builder |
Nanjing Wujiazui Shipbuilding Co., Ltd. |
|
Yard number |
WJZ022 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x Hitachi Sulzer 6RT-flex50B - 2 stroke 6 cylinder 500 x 2.050 mm diesel engine - 9.960 kW at 124,0 rpm Year of manufacture: 2008 Manufacturer: Hitachi Zosen Corporation, Ariake Machinery Works |
|
Propellers |
1x Controllable pitch propeller - aft at 124 rpm |
|
Boilers |
1x Steam boiler oil fired - 9,0 bar Heating Surface: 15,0 m² 1x steam boiler exhaust gas heater - 9 bar Heating Surface: 193,0 m² Year of Manufacture: 2008 Manufacturer: Alfa Laval Qingdao Ltd. |
|
Electric installations |
3x Plants each 450 V - 1.250 kVA 1x Plant 450 V - 124 kVA 2x Plants each 12 V - 90 Ah 1x Plant 12 V - 195 Ah 4x Plants each 12 V - 195 Ah |
|
Generators |
3x Main diesel generatorsets each 1.250 kVA / 1.000 kW |
|
Emergency generator |
1x Diesel generatorset 124 kVA |
|
Batteries |
2x Batteries for other purpose each 195 Ah 4x Batteries for other purpose each 195 Ah 2x Batteries for start emergency engine each 90 Ah |
|
Compressed air receivers |
2x Receivers each 1.500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 2x Receivers each 100 litres - 10,0 bar 1x Receiver 1.000 litres - 7,0 bar |
|
Bow thruster |
1x Transverse thruster - 700 kW, forward |
|
Anchor equipment |
3x Anchors weight each 6.000 kg Chain Length: 577,50 m |
|
Cargo gear |
None |
|
Crew size |
22 |
|
Crew |
15 |
|
Manager |
E.R. Schiffahrt GmbH & Cie. KG |
|
Registered owner |
Einundfünfzigste "MICHEL" Schiffahrts GmbH & Co. KG |
|
Last update |
08 November 2013 |
