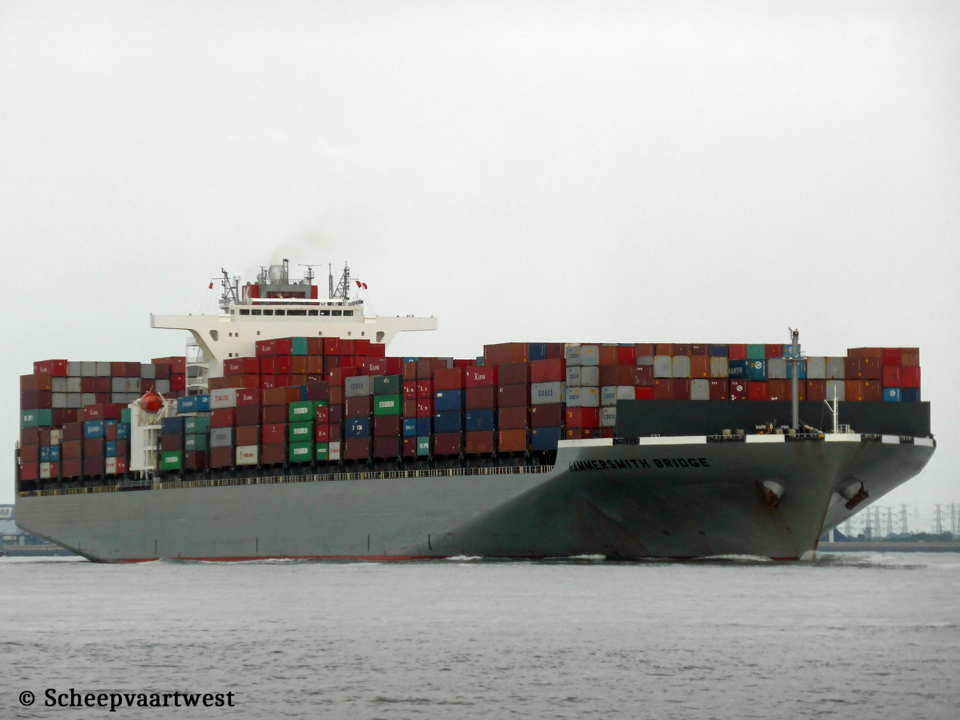

| Westerschelde 23 July 2015 |
 |
|

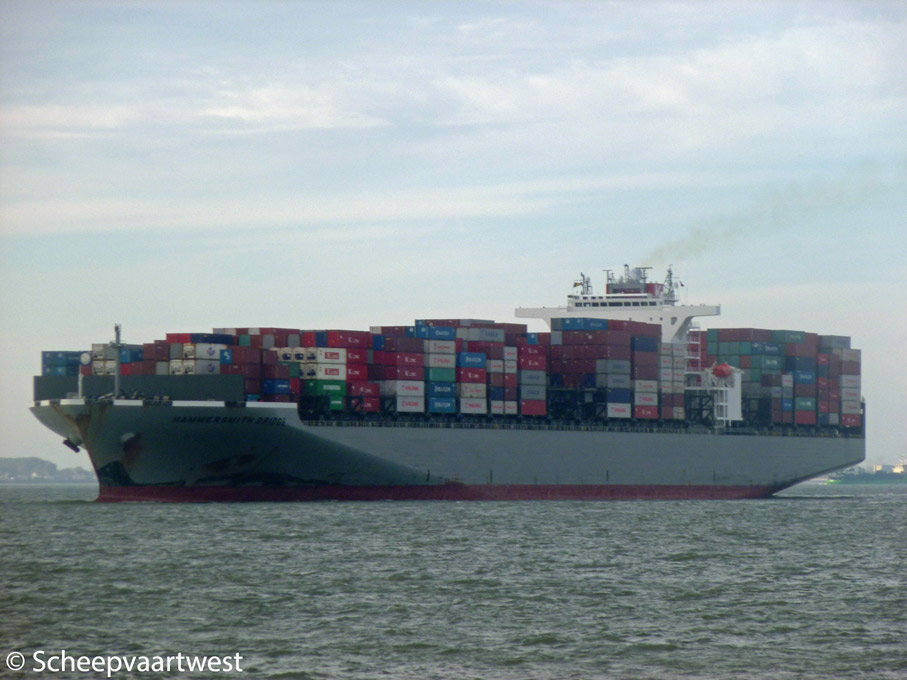

| Westerschelde 20/10/13 | |
|
Name |
HAMMERSMITH BRIDGE |
|
Type |
Cellular containership |
|
IMO-number |
9395147 |
|
Call sign |
3FQE8 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
98.747 t |
|
DWT |
Summer: 98.849 t |
|
NT |
35.315 t |
|
Light ship |
36.005 t |
|
Number of 20ft containers |
8.212 |
|
Number of 40ft containers |
4.086 |
|
Reefer capacity |
800 |
|
Length |
336,00 m |
|
Breadth |
45,80 m |
|
Draught |
Summer: 14,03 mm |
|
Moulded L x B x D |
318,30 x 45,80 x 24,40 m |
|
Registered L x B x D |
323,26 x 45,80 x 24,40 m |
|
Keel to mast end |
60,98 m |
|
Freeboard |
Summer: 5.574 mm |
|
Depth |
24,40 m moulded |
|
Speed |
Max: 25,6 knots |
|
Built |
2009 |
|
Keel laid |
16/06/2008 |
|
Launch date |
05/12/2008 |
|
Date of completion |
25/03/2009 |
|
Builder |
IHI Marine United Inc. Kure Shipyard Kure Japan |
|
Yard number |
3231 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 12K98ME - 2 stroke single acting 12 cylinder 980 x 2.660 mm combustion engine 66.260 kW / 90.087 hp at 92,9 rpm Manufacturer:Kawasaki Heavy Industries, Ltd. |
|
Propellers |
1x Fixed pitch propeller |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 1.080 mm |
|
Boilers |
1x Auxiliary vertical boiler - 11,0 bar Evaporation: 15,00 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. 1x Auxiliary Exhaust gas boiler - 11,0 bar Evaporation: 27,81 t/h Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Generators |
6x Diesel generatorset toltal 19.875 kVA |
|
Tank capacities |
Fuel oil: 13.917 m³ Fresh water: 502 m³ Water ballast: 25.593 m³ |
|
Cargo gear |
None |
|
ISM & commerical manager |
Shunzan Kaiun K.K. 2-1, Kitahorai-cho 2-chome, Imabari-shi, Ehime-ken, 794-0028 Japan |
|
Operator |
K Line Ship Management Co., Ltd. (Kawasaki Kisen Kaisha Ltd.) Tokyo Japan |
|
Owner |
Shunzan Kaiun Co., Ltd. |
|
Registered owner |
Primavera Montana S.A. - Republic of Panama Care of Shunzan Kaiun KK (Shunzan Kaiun Co Ltd) 2-1, Kitahorai-cho 2-chome Imabari-shi, Ehime-ken, 794-0028 Japan |
|
Renamed |
03/2019 One Hammersmith Repunlic of Panama, Panama City - Call sign: 3FQE8 Registered owner: Primavera Montana S.A. Manager: Shunzan Kaiun Co., Ltd. |
|
Latest data adjustment |
04 July 2024 |
