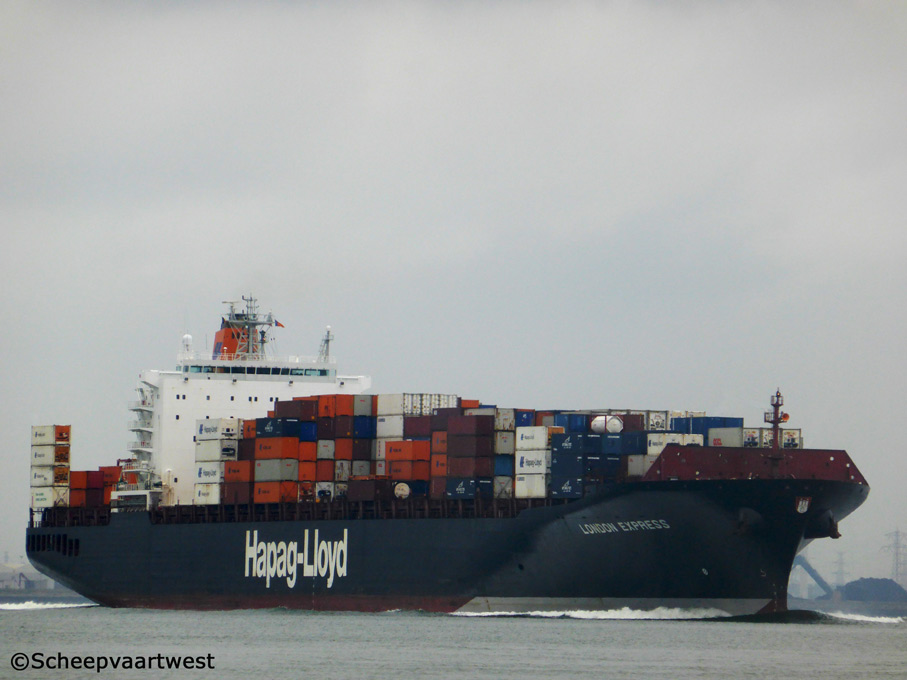

Westerschelde 19 June 2014 |
 |

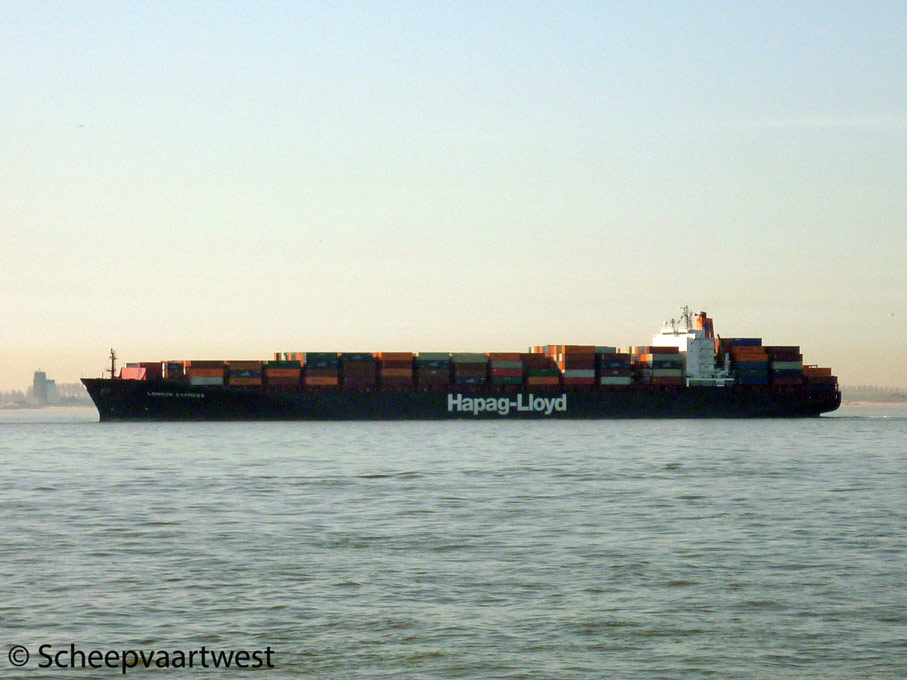

| Westerschelde 27/03/12 |
|
Name |
LONDON EXPRESS |
|
Type |
Cellular containership |
|
IMO-number |
9143568 |
|
Call sign |
DPLE |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
GT |
53.523 t |
|
DWT |
67.681 t |
|
NT |
32.908 t |
|
Number of 20ft containers |
4.612 |
|
Container capacity 14t |
3.962 |
|
Reefer plugs |
350 |
|
Length |
294,04 m overall 282,08 m registered |
|
Breadth |
32,25 m registered |
|
Draught |
13,63 m |
|
Forecastle |
26,23 m |
|
Freeboard |
3.677 mm |
|
Depth |
21,40 m |
|
Speed |
24,0 knots |
|
Built |
1998 |
|
Keel laid |
16.01.1998 |
|
Launch date |
03.05.1998 |
|
Date of completion |
05.1998 |
|
Builder |
Samsung Shipbuilding & Heavy Industries Co., Ltd. |
|
Yard number |
1210 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
9 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W/Hyundai 9K90MC - 2 stroke 9 cylinder 900 x 2.550 mm combustion engine - 41.130 kW / 55.920 hp at 94,0 rpm Year of manufacture: 1998 Manufacturer: Samsung Heavy Industries Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless), aft at 94,0 rpm |
|
Boilers |
Steam boiler, oil fired - 9,0 bar Heating surface: 99,0 m² Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 1.020,0 m² Year of manufacture: 1997 Manufacturer: ThyssenKrupp Marine Systems GmbH |
|
Electric installations |
1x Plant 440/220 V - 2.188 kVA 2x Plants each 440/ 20 V - 2.875 kVA 1x Plant 440 V - 3.750 kVA 1x Plant 440 V - 250 kVA |
|
Shaft generator |
1x 3.750 kVA |
|
Generators |
2x Main diesel generatorsets each 2.875 kVA |
|
Emergency generator |
1x Diesel generatorset 250 kVA |
|
Compressed air receivers |
2x Receivers each 13.000 litres - 32,4 bar 1x Receiver 1.000 litres - 7,6 bar |
|
Bow thruster |
1x Transverse thruster KAWASAKI - 2.110 kW, forward |
|
Tank capacities |
Fuel oil: 6.812 m³ Water ballast: 17.585 m³ |
|
Anchor equipment |
3x Anchors weight each 12.900 kg Chain length: 715,00 m |
|
Cargo gear |
Gearless |
|
Manager |
Hapag-Lloyd AG |
|
Operator |
Hapag-Lloyd Container Line |
|
Registered owner |
Hapag-Lloyd AG |
|
Last data update |
17 December 2013 |
