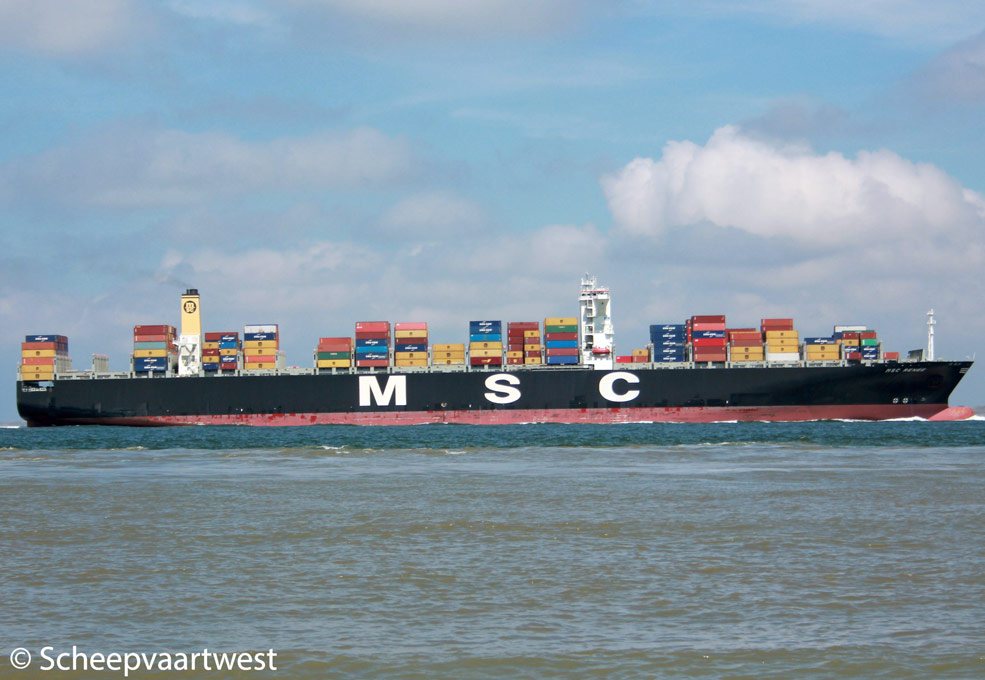

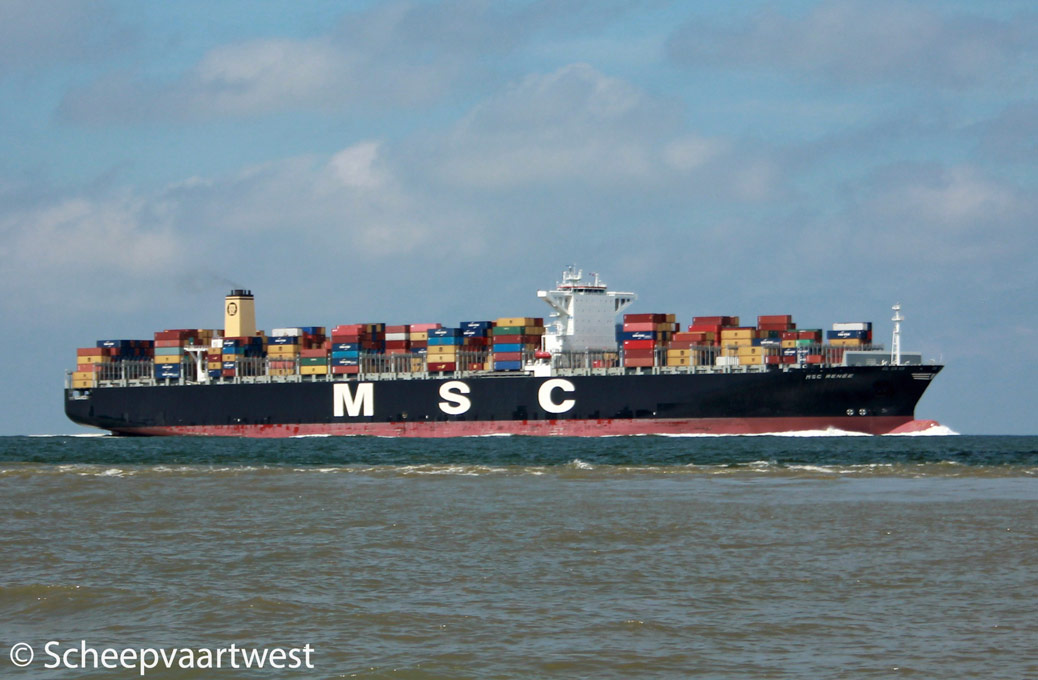

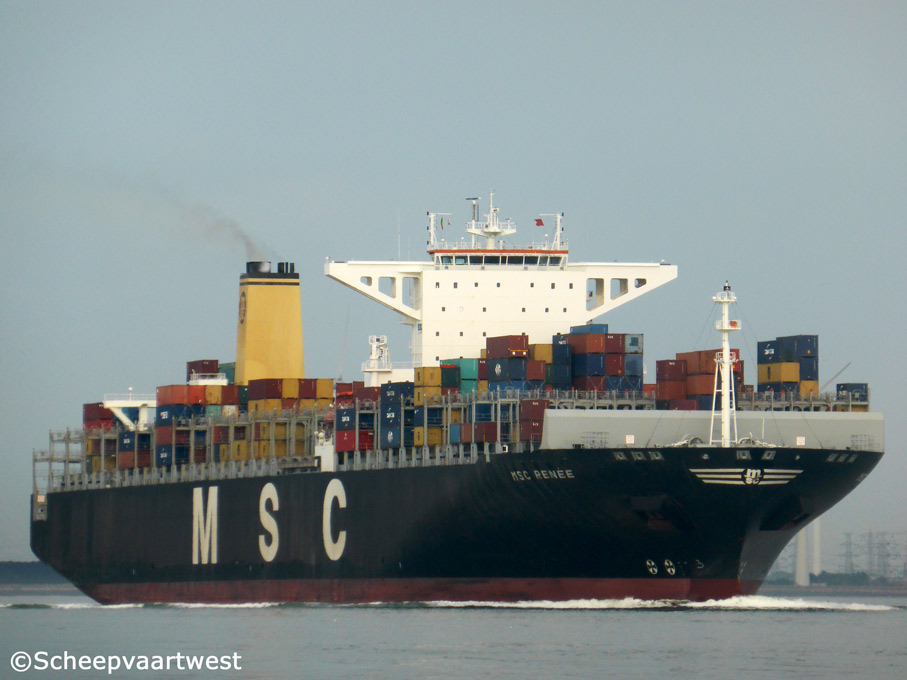

| Westerschelde 05 May 2015 |
 |
 |
 |
||
| Westerschelde 06/08/13 | Westerschelde 06/08/13 | Westerschelde 19/07/14 |
|
Name |
MSC RENEE |
|
Type |
Cellular containership |
|
IMO-number |
9465306 |
|
Call sign |
A8YN5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
141.635 t |
|
DWT |
140.958 t |
|
NT |
59.901 t |
|
Number of 20ft containers |
On deck: 7.082 In hold: 6.018 Total: 13.100 |
|
Container capacity 14t |
8.921 |
|
Reefer capacity |
800 |
|
Length |
366,45 m overall 352,83 m registered |
|
Breadth |
48,20 m registered |
|
Draught |
15,00 m |
|
Depth |
29,85 m moulded |
|
Speed |
24,7 knots |
|
Built |
2012 |
|
Keel laid |
21.11.2011 |
|
Launch date |
19.03.2012 |
|
Date of completion |
24.05.2012 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. |
|
Yard number |
2166 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom |
|
Main engine |
1x HHI MAN B&W 12K98ME7 - 2 stroke 12 cylinder 980 x 2.660 mm combustion engine - 72.240 kW at 97,0 rpm Year of Manufacture: 2011 Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 97,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 7,85 bar Heating surface: 73,4 m² 1x Steam boiler, exhaust gas heated - 9,81 bat Heating surface: 911,4 m² Year of manufacture: 2011 Manufacturer: KangRim Heavy Industries Co., Ltd. |
|
Electric installations |
4x Plants each 6.600 V with 4.426,7 kVA 1x Plant 450 V - 370 kVA 2x Plants each 12 V - 3 Ah 2x Plants each 24 V - 200 Ah 12x Plants each 24 V - 200 Ah 12x Plants each 24 V - 200 Ah |
|
Generators |
4x Main diesel generatorsets each 4.426,7 kVA |
|
Emergency generator |
1x Diesel generatorset 370 kVA |
|
Batteries |
12x Batteries for UPS navigation each 200 Ah 12x Batteries for UPS radio each 200 Ah 2x Batteries for start emergency engine each 200 Ah 2x Batteries for other purpose each 3 Ah |
|
Compressed air receivers |
2x Receivers each 16.000 litres - 32,4 bar 1x Receiver 500 litres - 32,4 bar 1x Receiver 300 litres - 7,7 bar 1x Receiver 2.000 litres - 7,56 bar |
|
Bow thruster |
2x Transverse thruster each 1.800 kW, forward |
|
Anchor equipment |
3x Anchors weight each 24.500 kg Chain length: 770,00 m |
|
Cargo gear |
Gearless |
|
Crew size |
28 |
|
Manager |
E.R. Schiffahrt GmbH & Cie. KG |
|
Operator |
MSC - Mediterranean Shipping Company S.A. |
|
Registered owner |
Vierzehnte "MICHEL" Schiffahrts GmbH & Co. KG |
|
Latest data adjustment |
27 June 2015 |
