Westerschelde 08 February 2014 |
 |
| Westerschelde 08/02/14 |
|
Name |

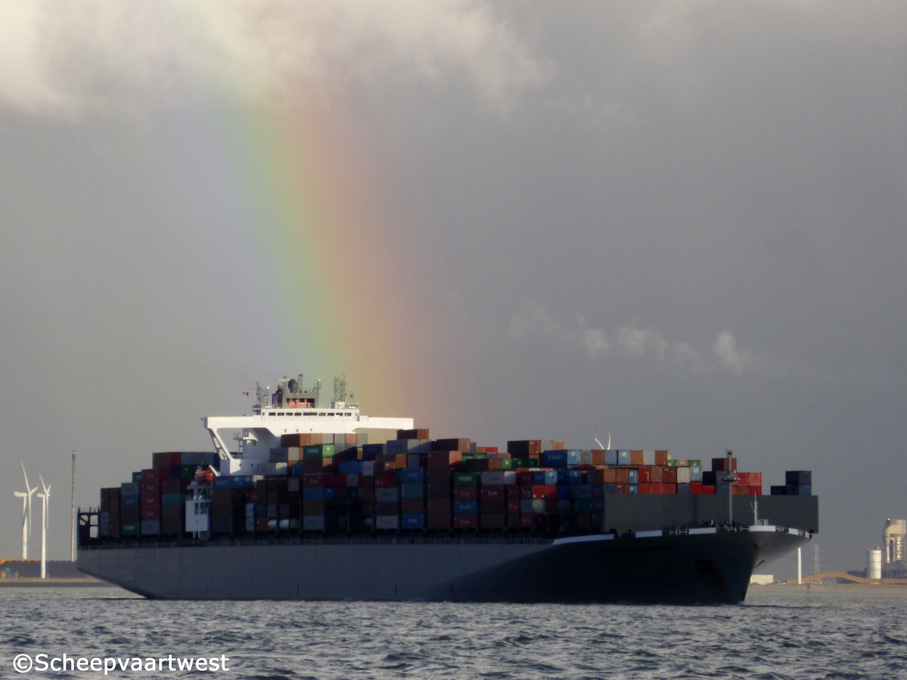

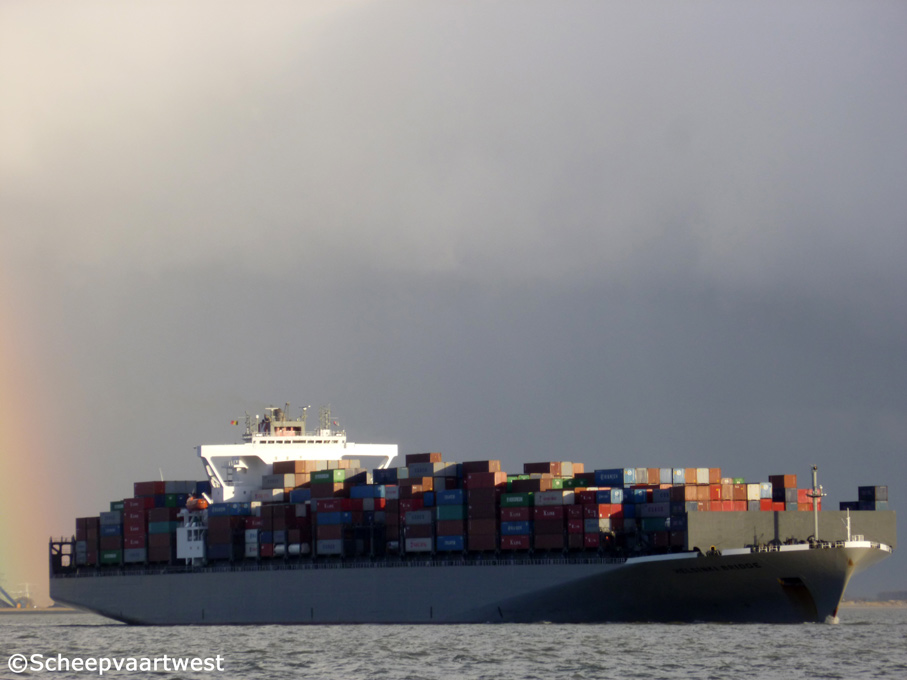

HELSINKI BRIDGE |
|
Type |
Cellular containership |
|
IMO-number |
9588081 |
|
Call sign |
3FIW4 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
96.801 t |
|
DWT |
Summer: 96.980 t |
|
NT |
36.689 t |
|
Number of 20ft containers |
8.930 |
|
Number of 40ft containers |
3.236 |
|
Reefer capacity |
800 |
|
Length |
334,55 m overall |
|
Breadth |
45,60 m moulded |
|
Draught |
Summer: 14,04 m |
|
Moulded L x B x D |
319,50 x 45,60 x 19,38 m |
|
Registered L x B x D |
324,17 x 45,60 x 24,40 m |
|
Freeboard |
5.394 mm |
|
Depth |
19,38 m moulded |
|
Speed |
Max.: 26,4 m |
|
Built |
2012 |
|
Keel laid |
29.11.2010 |
|
Launch date |
06.01.2012 |
|
Date of completion |
27.04.2012 |
|
Builder |
IHI - Ishikawajima Marine United Inc., Kure Shipyard Japan |
|
Yard number |
3287 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 9K98MC - 2 stroke single acting 9 cylinder 980 x 2.660 combustion engine - 51.480 kW at 94,0 rpm Manufacturer :Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Shipyard |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 998 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 9,9 bar Evaporation:15,00 t/h 1x Auxiliary Exhaust gas boiler - 9,9 bar Evaporation:16,10 t/h Manufacturer :Osaka Boiler Mfg. Co., Ltd. |
|
Generators |
6x Generators - 17.000 kVA |
|
Tank capacities |
Fuel oil: 11.224 m³ Fresh water: 481 m³ Water ballast: 23.108 m³ |
|
Cargo gear |
Gearless |
|
Manager |
"K" Line Ship Management (Singapore) Pte., Ltd. |
|
Operator |
K-Line - Kawasaki Kisen Kaisha Ltd. |
|
Registered owner |
Daisy Ship Holding S.A. |
|
Latest data adjustment |
06 March 2014 |
