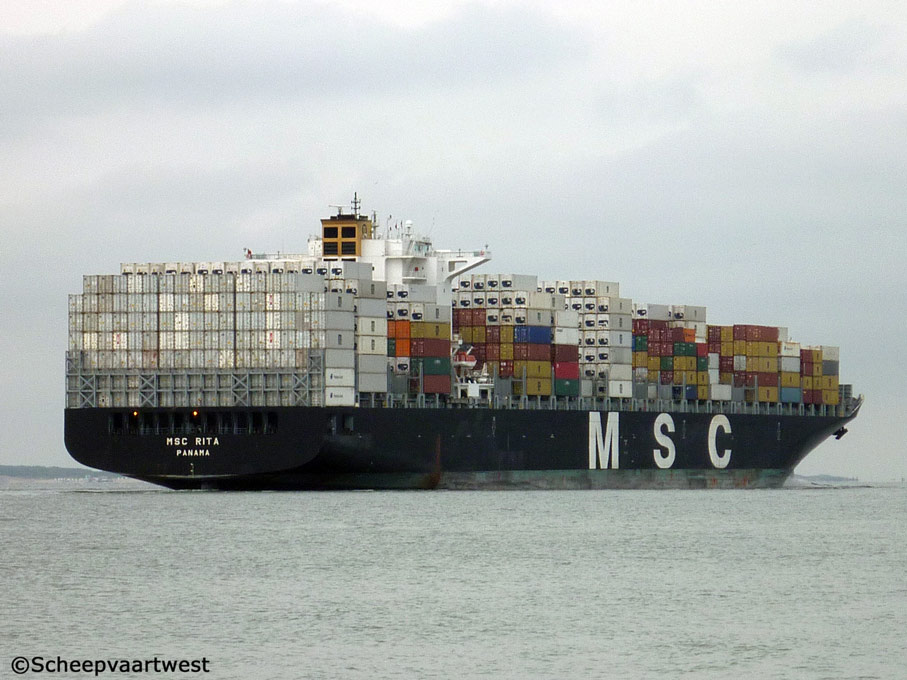

Westerschelde 28 July 2012 |
 |
 |
|

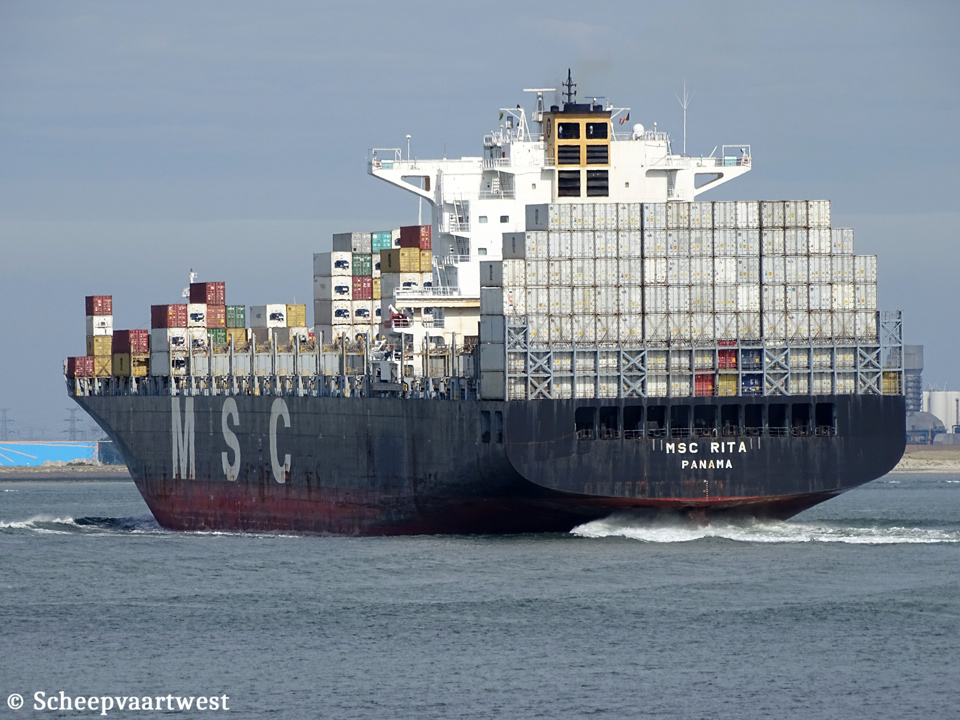

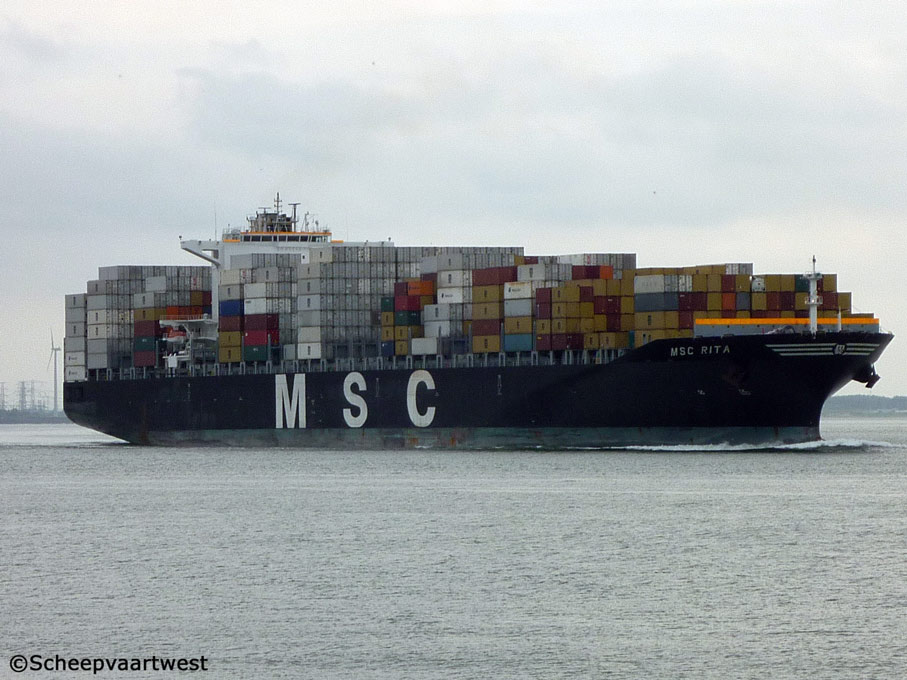

| Westerschelde 28/07/12 | Westerschelde 09/07/19 |
|
Name |
MSC RITA |
|
Type |
Cellular containership |
|
IMO-number |
9289116 |
|
Call sign |
3EBW6 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
89.954 t |
|
DWT |
Summer: 104.849 t |
|
NT |
54.268 t |
|
Number of 20ft containers |
8.034 |
|
Container capacity 14t |
6.275 |
|
Reefer capacity |
550 |
|
Length |
324,85 m overall 309,86 m registered |
|
Breadth |
42,80 m registered |
|
Draught |
14,50 m |
|
Forecastle |
61,97 m |
|
Bridge |
233,06 m |
|
Freeboard |
5.843 mm |
|
Depth |
20,33 m |
|
Speed |
25,4 knots |
|
Built |
2005 |
|
Keel laid |
07/03/2005 |
|
Launch date |
19/05/2005 |
|
Date of completion |
20/07/2005 |
|
Builder |
Hanjin Heavy Industries & Construction Co., Ltd. 29, 5-ga, Bongnae-dong Youngdo-gu Busan, 606-065 Kyongsang-namdo Republic of Korea |
|
Yard number |
N-130 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
9 |
|
Continuous decks |
2 |
|
Main engine |
1x Sulzer 12RTA96C-B - 2 stroke 12 cylinder 960 x 2.500 mm combustion engine- 68.640 kW at 102,0 rpm Year of manufacture: 2005 Manufacturer: HSD Engine Co., Ltd. 69 Sinchon-dong Changwon, Kyungnam 641-370 Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 102,0 rpm |
|
Boilers |
1x Steam boiler, exhaust gas heated - 10,0 bar Heating surface: 393,0 m² Year of manufacture: 2004 Steam boiler, oil fired - 10,0 bar Heating surface: 95,0 m² Year of manufacture: 2005 Manufacturer: Alfa Laval Qingdao Ltd. 86 Guangzhou Road North Jiaozhou Qingdao, 266300 Shandong People's Republic of China |
|
Electric installations |
4x Plants each 450/230 V - 2.812,5 kVA 1x Plant 450 V - 625 kVA 2x Plants each 24 V - 7 Ah 2x Plants each 24 V - 12 Ah 2x Plants each 24 V - 35 Ah 2x Plants each 24 V - 200 Ah 1x Plant 24 V with 400 Ah |
|
Generators |
4x MAN-B&W 8L27/38 main diesel generatorsets each 2.812,5 kVA / 2.250 kW |
|
Emergency generator |
1x Diesel generatorset 625 kVA |
|
Batteries |
2x Batteries for UPS radio each 200 Ah |
|
Compressed air receivers |
2x Receivers each 16.800 litres - 33,0 bar 1x Receiver 500 litres - 33,0 bar 2x Receivers each 15 litres - 9,9 bar 1x Receiver 250 litres - 8,8 bar 3x Receivers each 30 litres - 7,5 bar |
|
Bow thruster |
1x Transverse thruster 2.600 kW, forward |
|
Anchor equipment |
3x Anchors weight each 18.800 kg Chain length: 742,50 m Diameter: 107 mm |
|
Cargo gear |
Gearless |
|
Crew size |
28 |
|
Manager |
MSC Mediterranean Shipping Company S.r.l. Via Francesco Ciampa, 29 80063 Piano di Sorrento Naples Italy |
|
Operator |
MSC - Mediterranean Shipping Company S.A. |
|
Registered owner |
Compania Naviera Rita S.A. c/o MSC Mediterranean Shipping Company S.r.l. Via Francesco Ciampa, 29 80063 Piano di Sorrento Naples Italy |
|
Latest data adjustment |
24 November 2020 |
