Westerschelde 28 July 2012 |
 |
| Westerschelde 28/07/12 |
|
Name |

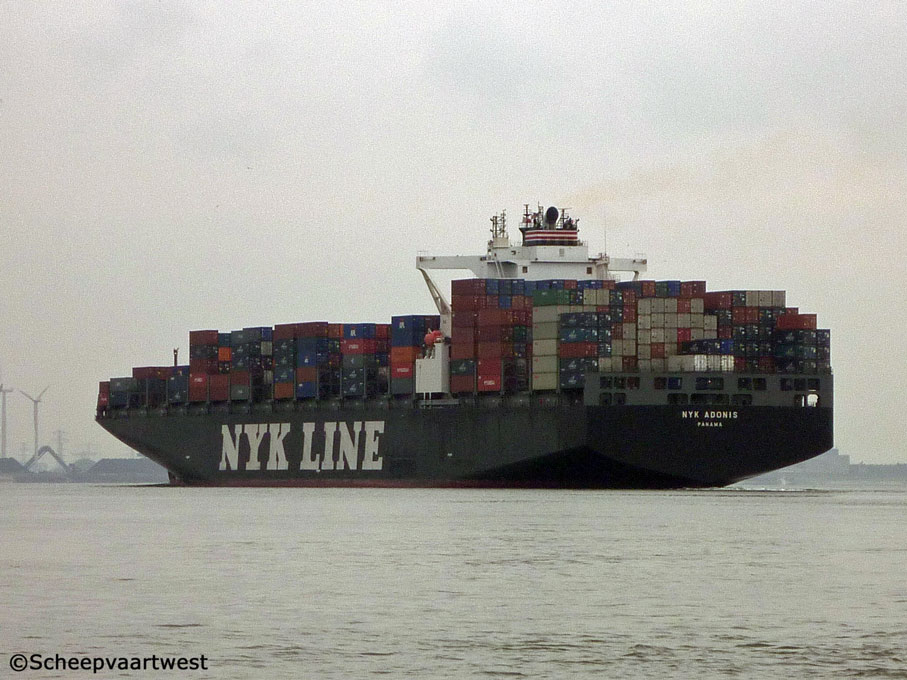

NYK ADONIS |
|
Type |
Cellular containership |
|
IMO-number |
9468293 |
|
Call sign |
3EUI3 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
105.644 t registered |
|
DWT |
Summer: 95.660 t |
|
NT |
36.610 t registered |
|
Number of 20ft containers |
9.592 |
|
Reefer capacity |
762 |
|
Length |
332,15 m overall |
|
Breadth |
45,20 m moulded |
|
Draught |
14,54 m |
|
Moulded L x B x D |
315,00 x 45,20 x 26,80 m |
|
Registered L x B x D |
322,07 x 45,20 x 26,80 m |
|
Freeboard |
7.486 mm |
|
Depth |
26,80 m moulded |
|
Speed |
Max.: 25,0 knots |
|
Built |
2010 |
|
Keel laid |
25.05.2009 |
|
Launch date |
06.11.2009 |
|
Date of completion |
30.03.2010 |
|
Builder |
IHI Marine United Inc. Kure Shipyard |
|
Yard number |
3278 |
|
Hull material |
Steel |
|
Main engine |
1x Sulzer 11RT-Flex96C - 2 stroke single acting 11 cylinder 960 x 2.500 combustion engine - 58.400 kW at 99,5 rpm Manufacturer: Diesel United, Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 1.050 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 10,0 bar Evaporation: 13,00 t/h 1x Auxiliary exhaust gas boiler - 10,0 bar Evaporation: 23,49 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
6x Generators total 16.700 KVA |
|
Tank capacities |
Fuel oil: 9.344 m³ Fresh water: 662 m³ Water ballast: 23.120 m³ |
|
Manager |
NYK Shipmanagement Pte Ltd. Republic of Singapore |
|
Operator |
NYK - Nippon Yusen Kaisha Line |
|
Registered owner |
Nestor Ship Holding S.A. |
|
Latest data adjustment |
20 March 2014 |
