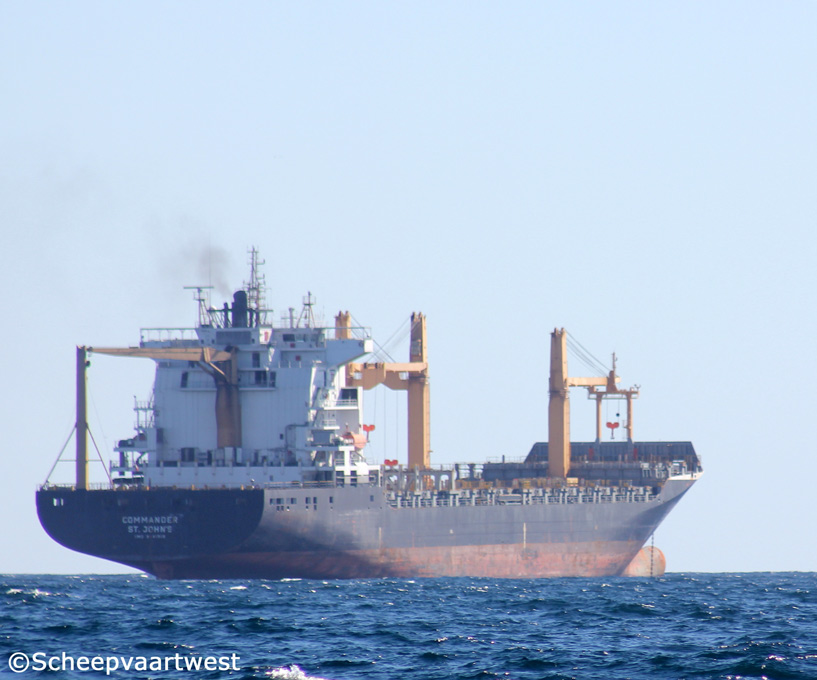

Mediterranean Sea 23 February 2014 |
 |

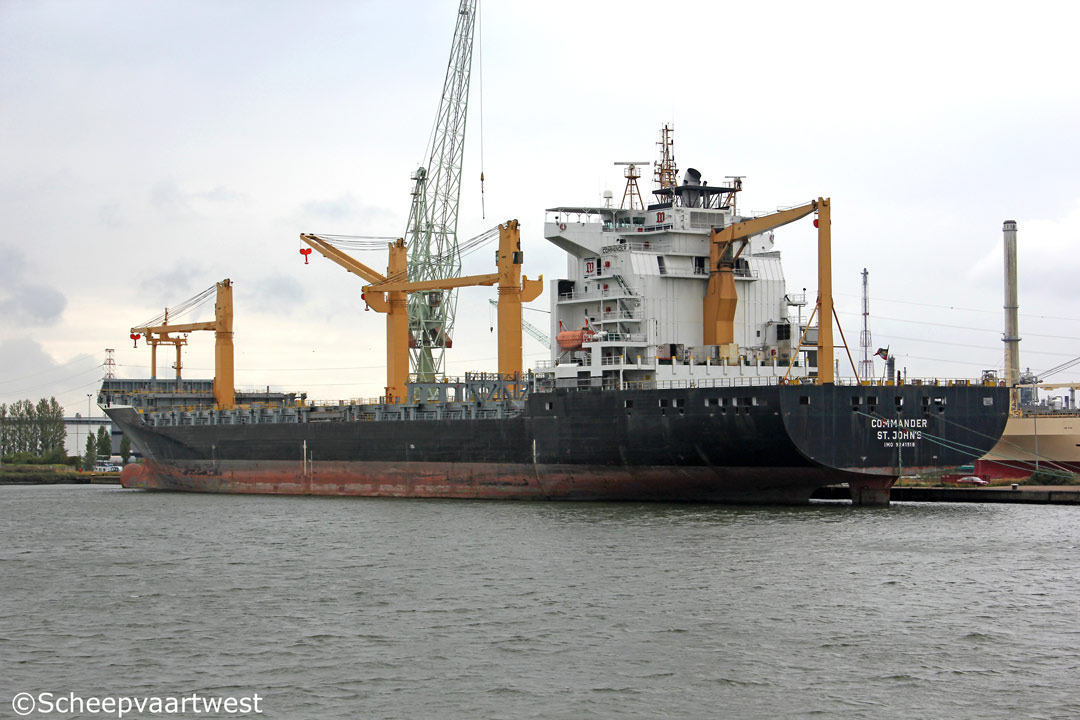

| Antwerpen 12/10/12 |
|
Name |
COMMANDER |
|
Previous names |
2004 launch as: Commander 11.2004 - 03.2009 Maersk Pecem 03.2009 - 04.2014 Commander |
|
Type |
Cellular container vessel - Fitted for the carriage of dangerous goods |
|
IMO-number |
9241918 |
|
Call sign |
V2OU9 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John's |
|
GT |
30.051 t |
|
DWT |
Summer: 35.814 t |
|
NT |
12.671 t |
|
Number of 20ft containers |
In hold: 1.000 On deck: 1.764 2.764 |
|
Number of 40ft containers |
1.334 |
|
Container capacity 14t |
2.050 |
|
Reefer points |
400 - whereof 100 under deck |
|
Length |
207,87 m overall 195,46 m registered |
|
Breadth |
32,24 m registered |
|
Draught |
11,50 m |
|
Forecastle |
33,74 m |
|
Freeboard |
5.336 mm |
|
Depth |
16,80 m moulded |
|
Freeboard |
5.336 mm |
|
Speed |
22,8 knots |
|
Built |
2004 |
|
Keel laid |
24.03.2004 |
|
Launch date |
24.09.2004 |
|
Date of completion |
10.11.2004 |
|
Builder |
Stocznia Gdynia S.A. |
|
Yard number |
8230/6 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
8 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN B&W 8S70MC-C - 2 stroke 8 cylinder 700 x 2.800 mm combustion engine - 24.840 kW at 91,0 rpm Year of manufacture: 2004 Manufacturer: H. Cegielski-Poznan S.A. |
|
Propellers |
1x Solid propeller (keyless) - aft at 91,0 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 84,0 m² 1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 91,0 m² Year of manufacture: 2004 Manufacturer: INTEC Rohrtechnik GmbH |
|
Electric installations |
2x Plants each 450/220 V - 1.250 kVA 2x Plants each 450/220 V - 1.495 kVA 1x Plant 450 V - 250 kVA 1x Plant 24 V - 75 Ah 1x Plant 24 V - 75 Ah 1x Plant 24 V - 170 Ah 1x Plant 24 V - 180 Ah |
|
Generators |
2x MAN-B&W 6L28/32H main diesel generatorsets each 1.495 kVA / 1.196 kW 2x MAN-B&W 5L28/32H main diesel generatorsets each 1.250 kVA / 1.000 kW |
|
Emergency generator |
1x Diesel generatorset 250 kVA |
|
Batteries |
1x Batteries for Start emergency engine each 170 Ah 1x Batteries for automation each 75 Ah 1x Batteries for UPS navigation each 75 Ah |
|
Compressed air receivers |
2x Receivers each 8.500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 10 litres - 10,0 bar 1x Receiver 1.500 litres - 8,0 bar 1x Receiver 50 litres - 8,0 bar |
|
Tank capacities 100% |
Diesel oil: 333,7 m³ / 296,99 t Fuel oil: 3.727,05 m³ / 3.652,50 t Fresh water: 409,72 m³ Lube oil: 389,55 m³ / 350,59 t Tank ballast: 24.064,92 m³ / 24.666,54 t |
|
Bow thruster |
1x Transverse thruster 1.200 kW, forward |
|
Number of holds |
5 |
|
Number of hatches |
5 |
|
Number of tanks |
Ballast: 25 Fuel oil: 13 Sludge: 10 Lubricating oil: 5 Diesel oil: 5 Fresh water: 4 Thermal oil: 2 Chain: 2 Potable water: 2 Waste water: 2 Sewage: 1 |
|
Anchor equipment |
3x Anchors weight each 10.500 kg Chain length: 660,00 m |
|
Cargo gear |
1x Crane - SWL 35,0 t 3x Cranes -SWL 45,0 t each Manufacture: LMG Lubecker Maschinenbau |
|
Manager |
Reederei Gebr. Winter GmbH & Co. KG |
|
Registered owner |
MS "COMMANDER" Schifffahrtsges. mbH & Co. KG |
|
Renamed |
04.2014 Gisele A - Malta, Valletta - Call sign: 9HA3562 |
|
Latest data adjustment |
28 April 2017 |
