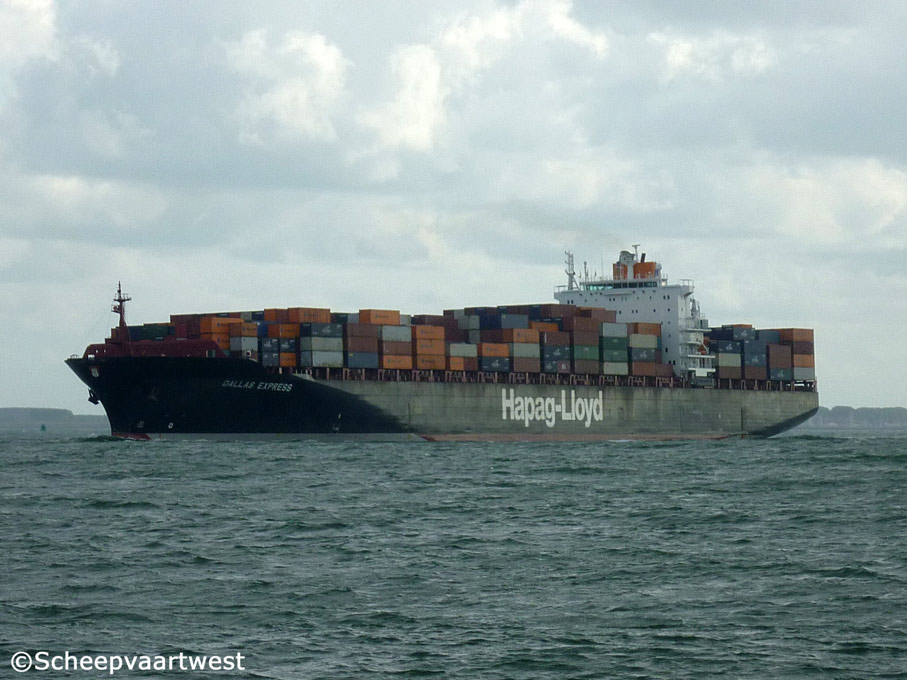

Dallas Express - IMO 9193288

Westerschelde 13 July 2012

Name

DALLAS EXPRESS

Previous names

Launch as: 2000 Tokyo Express

200 - 02.2012 Antwerpen express

Type

Cellular containership

IMO-number

9193288

Call sign

DGAF

Flag

Germany

Port of registry

Hamburg

GT

54.437 t

DWT

Summer: 67.145 t

NT

23.876 t

Number of 20ft containers

4.864

Container capacity 14t

3.370

Reefer capacity

370

Length

294,17 m overall

285,90 m registered

Breadth

32,20 m registered

Draught

13,55 m

Freeboard

3.835 mm

Depth

21,80 m moulded

Speed

24,0 knots

Built

2000

Keel laid

26.06.1999

Launch date

16.10.1999

Date of completion

01.2000

Builder

Hyundai Heavy Industries Co., Ltd.
1, Cheonha-dong, Dong-gu
Ulsan, Kyongsang-namdo
Republic of Korea

Yard number

1190

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

9

Continuous decks

2

Main engine

1x MAN-B&W 7K98MC - 2 stroke 7 cylinder 980 x 2.660 mm combustion engine - 40.040 kW at 94,0 rpm

Year of manufacture: 1999

Manufacturer: Hyundai Engine & Machinery Co., Ltd.
Ulsan
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 94,0 rpm

Boilers

Steam boiler, oil fired - 10,0 bar

Heating surface: 106,0 m²

Steam boiler, exhaust gas heated - 10,0 bar

Heating surface: 1.360,0 m²

Year of manufacture: 1999

Manufacturer: Tong Il Boiler Mfg. Co., Ltd.
Jin Buk/Jin Hae Factory 139-20, Gamjun 2-dong, Buk-gu
Busan, Kyongsang-namdo
Republic of Korea

Electric installations

1x Plant 440/220 V - 2.187 kVA

2x Plants each 440/220 V - 2.875 kVA

1x Plant 440 V - 3.750 kVA

1x Plant 440 V - 375 kVA

1x Plant 12 V - 200 Ah

1x Plant 24 V - 100 Ah

1x Plant 24 V - 400 Ah

Shaft generator

1x 3.750 kVA

Generators

2x Main diesel generatorsets each 2.875 kVA

1x Main diesel generatorset 2.187 kVA

Emergency generator

1x Diesel generatorset 375 kVA

Compressed air receivers

2x Receivers each 15.000 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

1x Receiver 350 litres - 7,7 bar

Bow thruster

1x Transverse thruster 2.100 kW, forward

Tank capacities

Fuel oil: 6.630 m³

Water ballast: 19.255 m³

Anchor equipment

3x Anchors weight each 12.900 kg

Chain length: 715,00 m

Cargo gear

Gearless

Crew size

32

Manager

Hapag-Lloyd AG
Ballindamm 25
20095 Hamburg
Federal Republic of Germany

Operator

Hapag-Lloyd

Registered owner

Hapag-Lloyd AG
Ballindamm 25
20095 Hamburg
Federal Republic of Germany

Latest data adjustment

26 March 2014
