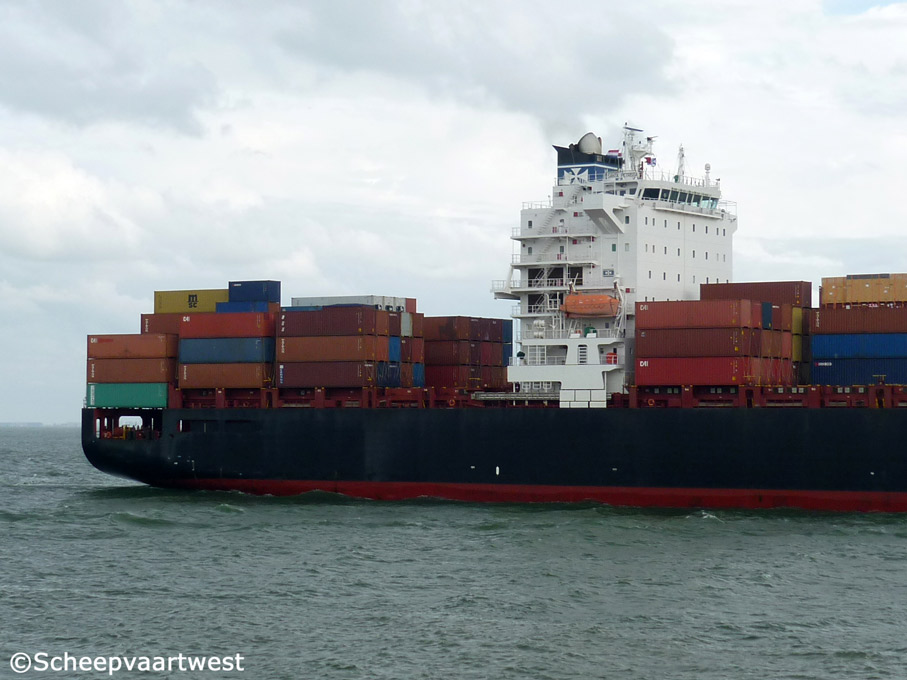

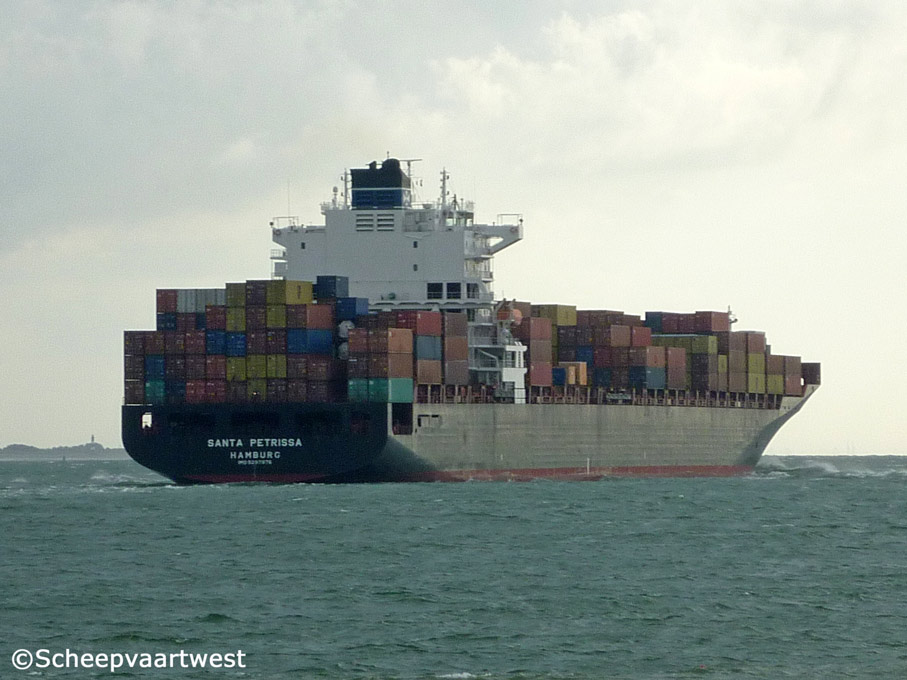

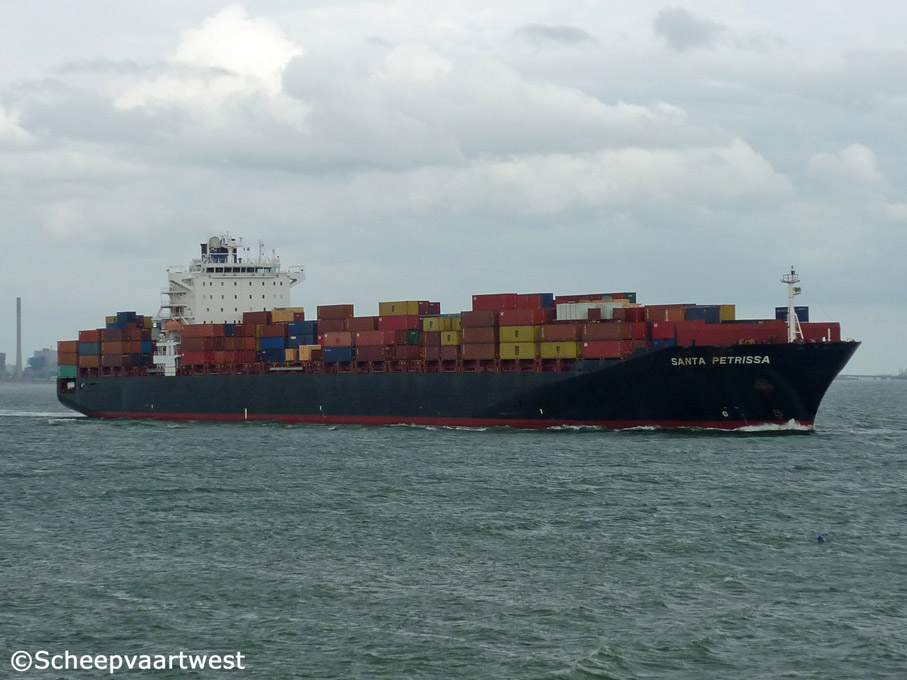

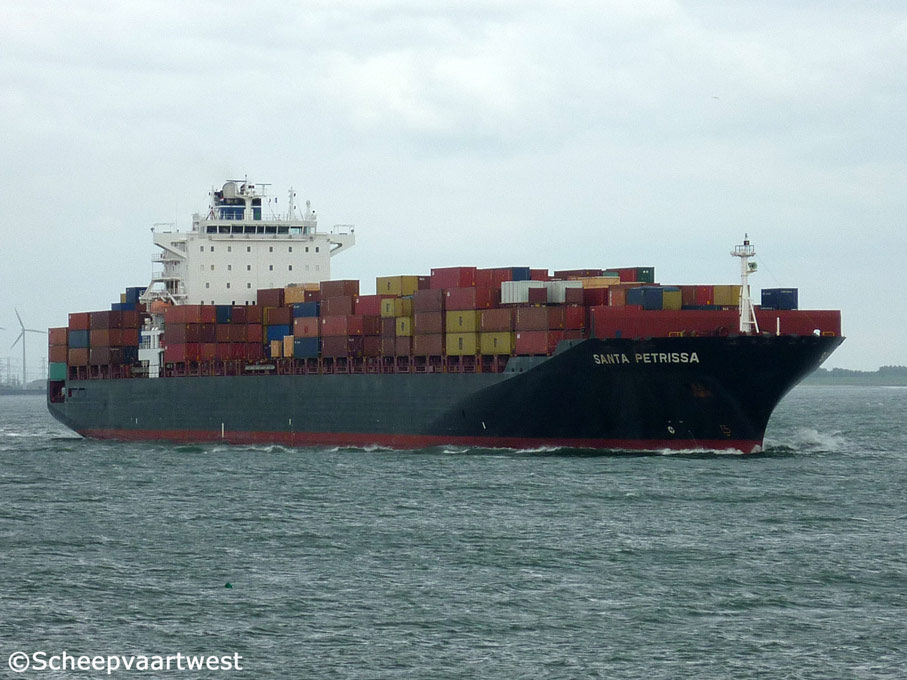

Westerschelde 13 July 2012 |
 |
 |
 |
||
| Westerschelde 13/07/12 | Westerschelde 13/07/12 | Westerschelde 13/07/12 |
|
Name |
SANTA PETRISSA |
|
Previous names |
2005 Launch as: Santa Petrissa 08.2005 - 01.2010 Maersk Douglas 2010 - 05.2012 UASC Sharjah |
|
Type |
Cellular containership |
|
IMO-number |
9297876 |
|
Call sign |
DCPL2 |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
GT |
54.771 t |
|
DWT |
Summer: 66.799 t |
|
NT |
33.773 t |
|
Number of 20ft containers |
5.018 |
|
Container capacity 14t |
3.320 |
|
Reefer capacity |
550 |
|
Length |
294,14 m overall 284,26 m registered |
|
Breadth |
32,20 m registered |
|
Draught |
13,65 m |
|
Forecastle |
267,86 m |
|
Poop |
15.97 m |
|
Freeboard |
3.780 m |
|
Depth |
18,40 m |
|
Speed |
25,5 knots |
|
Built |
2005 |
|
Keel laid |
04.04.2005 |
|
Launch date |
17.06.2005 |
|
Date of completion |
18.08.2005 |
|
Builder |
Hyundai Samho Heavy Industries Co., Ltd. |
|
Yard number |
S245 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
8 |
|
Continuous decks |
2 |
|
Main engine |
1x Sulzer 9RTA96 C-B - 2 stroke 9 cylinder 960 x 2.500 diesel engine - 51.480 kW at 102,0 rpm Year of manufacture: 2005 Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 102,0 rpm |
|
Boilers |
Steam boiler, oil fired - 10,0 bar Heating surface: 26,8 m² Steam boiler, exhaust gas heated - 10,0 bar Heating surface: 375,0 m² Year of manufacture: 2005 Manufacturer: Alfa Laval Qingdao Ltd. |
|
Electric installations |
2x Plants each 450/230 V - 2.137,5 kVA 2x Plants each 450/230 V - 2.850 kVA 1x Plant 450 V - 31,.5 kVA 1x Plant 24 V - 200 Ah 2x Plants each 24 V - 200 Ah |
|
Generators |
2x MAN-B&W 8L27/38 main diesel generatorsets each 2.850 kVA 2x MAN-B&W 6L27/38 main diesel generatorsets each 2.137,5 kVA |
|
Emergency generator |
1x Diesel generatorset 312,5 kVA |
|
Compressed air receivers |
2x Receivers each 12.900 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 60 litres - 30,0 bar 2x Receivers each 15 litres - 9,7 bar 1x Receiver 300 litres - 8,8 bar 1x Receiver 2.000 litres - 8,6 bar |
|
Bow thruster |
1x Transverse thruster 2.100 kW, forward |
|
Anchor equipment |
3x Anchors weight each 12.900 kg Chain length: 715,00 m |
|
Cargo gear |
Gearless |
|
Manager |
Claus-Peter Offen Reederei |
|
Owner |
Claus-Peter Offen Reederei |
|
Registered owner |
KG MS 'SANTA PETRISSA' Offen Reederei GmbH & Co. |
|
Renamed |
MSC Bhaya - Liberia, Monrovia |
|
Latest data adjustment |
29 March 2014 |
