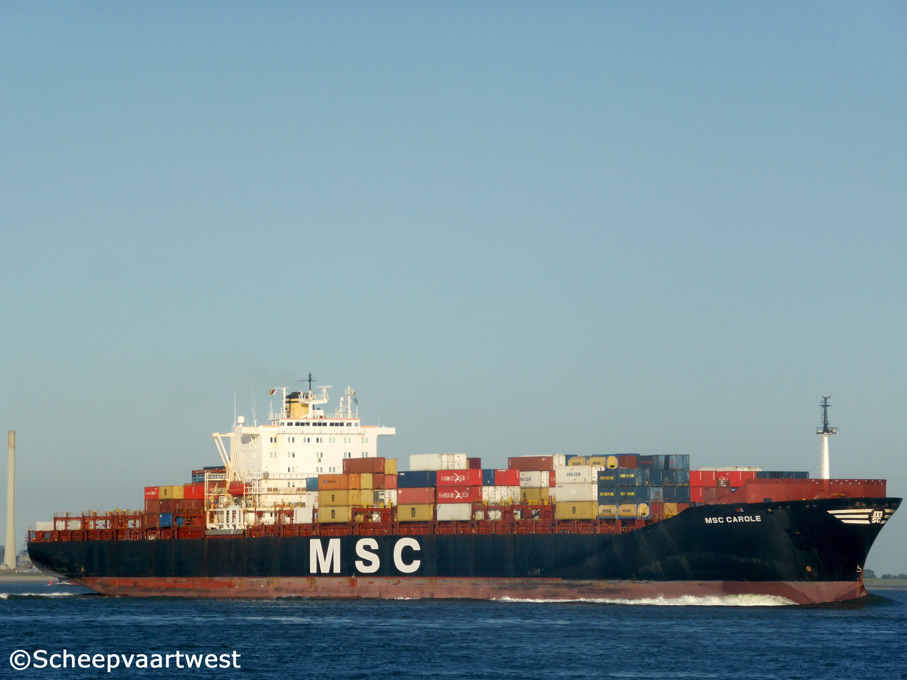

MSC Carole - IMO 8618308

Westerschelde 11 June 2014

Name

MSC CAROLE

Previous names

1989 - 12.2006 Mathilde Maersk

2006 - 08.2008 Maersk Moncton

2008 - 08.2010 MSC Ancona

2010 - 10.2011 Maersk Moncton

Type

Cellular containership

IMO-number

8618308

Call sign

3EUN6

Flag

Republic of Panama

Port of registry

Panama City

GT

52.191 t

DWT

67.610 t

NT

28.765 t

Number of 20ft containers

4.437

Container capacity 14t

4.200

Reefer capacity

500

Length

294,11 m overall

285,40 m registered

Breadth

32,22 m registered

Draught

14,35 m

Depth

21,50 m moulded

Speed

23,5 knots

Built

1989

Keel laid

30.01.1989

Launch date

23.06.1989

Date of completion

30.09.1989

Builder

Odense Staalskibsvaerft A/S
Lindoalleen 150
5330 Odense ,C
Kingdom of Denmark

Yard number

130

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

10

Continuous decks

1

Main engine

1x MAN-B&W 10K90MC Mk III - 2 stroke 10 cylinder 900 x 2.550 mm diesel engine - 39.415 kW / 57.700 hp at 90,0 rpm

Year of manufacture: 1988

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works
3-1-1, Tama
Tamano-city
Japan

Propellers

1x Solid propeller (Keyless) - aft at 90,0 rpm

Boilers

1x Steam boiler, oil fired - 12,0 bar

Heating surface: 87,0 m²

1x Steam boiler, exhaust gas heated - 12,0 bar

Heating surface: 1.150,0 m²

Year of manufacture: 1987

Manufacturer: Aalborg Boilers A/S
9100 Aalborg
Kingdom of Denmark

1x Steam boiler, steam drum - 8,0 bar

Heating surface: 0,4 m²

1x Steam boiler, steam drum - 11,0 bar

Heating surface: 1,1 bar

Manufacturer: VEB Dampfkesselbau Dresden-Übigau
Dresden
Federal Republic of Germany

Electric installations

3x Plants each 6.600 V - 2.000 kVA

1x Plant 6600 V - 4.900 kVA

1x Plant 6600 V - 3.500 kVA

1x Plant 6600 V - 500 kVA

Shaft generator

1x 3.500 kVA

Generators

1x Main diesel generatorset 4.900 kVA

2x MAN-B&W 8L28/32A main diesel generatorsets each 2.000 kVA

Emergency + Harbour gen.

1x 500 kVA

Compressed air receivers

2x Receivers each 15.500 litres - 30,0 bar

1x Receiver 400 litres - 30,0 bar

1x Receiver 2.000 litres - 10,0 bar

1x Receiver 500 litres - 10,0 bar

Bow thruster

1x 1.300 kW, aft

1x 1.300 kW, forward

Anchor equipment

3x Anchors weight each 12.300 kg

Chain length: 687,50 m

Cargo gear

Gearless

Crew

24

Manager

MSC Shipmanagement Ltd.
MSC House 8, Spyrou Kyprianou Avenue
3070 Limassol
Republic of Cyprus

Operator

MSC - Mediterranean Shipping Company

Registered owner

Seaspan Corporation
Unit 2, 7th Floor, Bupa Centre 141 Connought Road West
Hong Kong
Hong Kong Special Administration Region of P.R. China

Scrapped

2016 Alang - India

Latest data adjustment

16 July 2014
