Westerschelde 01 July 2014 |
|
Name |

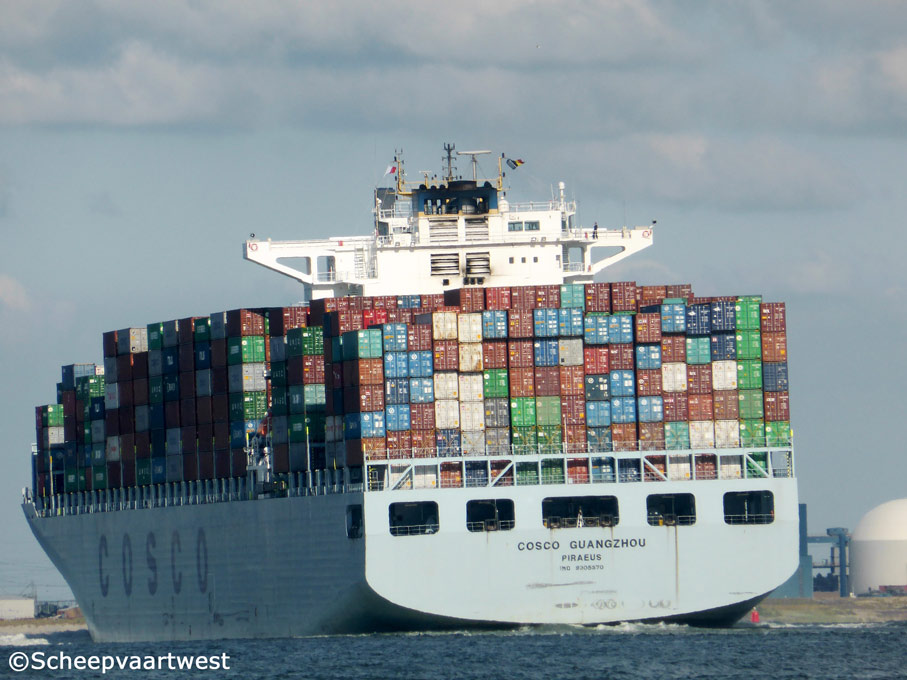

COSCO GUANGZHOU |
|
Type |
Cellular containership |
|
IMO-number |
9305570 |
|
Call sign |
SYIE |
|
Flag |
Greece |
|
Port of registry |
Piraeus |
|
GT |
109.149 t |
|
DWT |
107.526 t |
|
NT |
52.743 t |
|
Number of 20ft containers |
9.383 |
|
Container capacity 14t |
6.480 |
|
Reefer capacity |
700 |
|
Length |
350,56 m overall 336,75 m registered |
|
Breadth |
42,80 m registered |
|
Draught |
14,50 m |
|
Forecastle |
167,64 m |
|
Poop |
9,60 m |
|
Bridge |
158,04 m |
|
Freeboard |
5.749 mm |
|
Depth |
22,84 m |
|
Speed |
25,4 knots |
|
Built |
2006 |
|
Keel laid |
04.10.2005 |
|
Launch date |
09.12.2005 |
|
Date of completion |
22.02.2006 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. |
|
Yard number |
H1643 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
12 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 12K98MC - 2 stroke 12 cylinder 980 x 2.660 mm diesel engine - 74.760 kW at 97,0 rpm Year of Manufacture: 2005 Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propellers |
1x Solid propeller (Keyless) - aft at 97,0 rpm |
|
Boilers |
1x Steam boiler, exh.gas heated - 9,8 bar Heating surface: 1.041,3 m² Year of manufacture: 2005 Manufacturer: KangRim Industries Co., Ltd. (3rd Factory) 1x Steam boiler, oil fired - 10,0 bar Heating surface: 40,1 m² Year of manufacture: 2005 Manufacturer: Alfa Laval Qingdao Ltd. |
|
Electric installations |
3x Plants each 6.600/440 V - 2.933,5 kVA 2x Plants each 6.600/440 V - 3.733,5 kVA 1x Plant 440 V - 625 kVA 1x Plant 24 V - 92 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 200 Ah 1x Plant 24 V - 300 Ah 1x Plant 110 V - 125 Ah |
|
Generators |
3x Main diesel generatorsets each 2.933,5 kVA 2x Main diesel generatorsets each 3.933,5 kVA |
|
Emergency generator |
1x Diesel generatorset 625 kVA |
|
Batteries |
1x Battery for diesel control 200 Ah 1x Battery for UPS radio 200 Ah |
|
Compressed air receivers |
2x Receivers each 16.000 litres - 32,4 bar 1x Receiver 250 litres - 32,4 bar 1x Receiver 100 litres - 32,4 bar 1x Receiver 250 litres - 8,3 bar 1x Receiver 2.000 litres - 7,6 bar |
|
Bow thruster |
1x Transverse thruster 2.500 kW, forward |
|
Anchor equipment |
3x Anchors weight each 20.000 kg Chain Length: 770,00 m |
|
Cargo gear |
Gearless |
|
Crew size |
34 |
|
Manager |
Costamare Shipping Co., S.A. |
|
Operator |
COSCO - China Ocean Shipping Company |
|
Registered owner |
Rena Maritime Corp. |
|
Latest data adjustment |
03 August 2014 |
