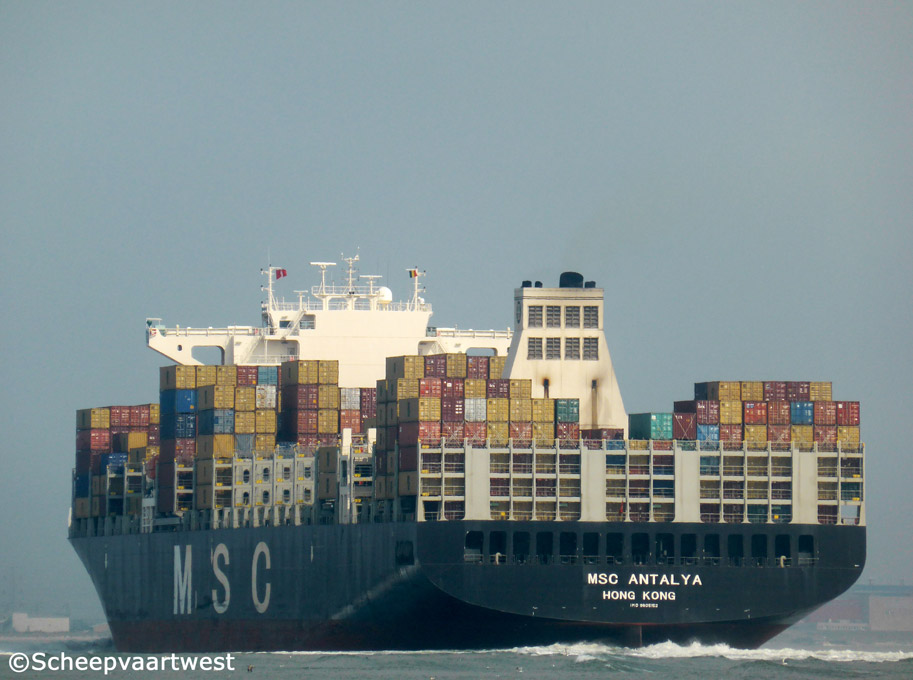

Westerschelde 29 July 2014 |
 |
 |
 |
 |
|||

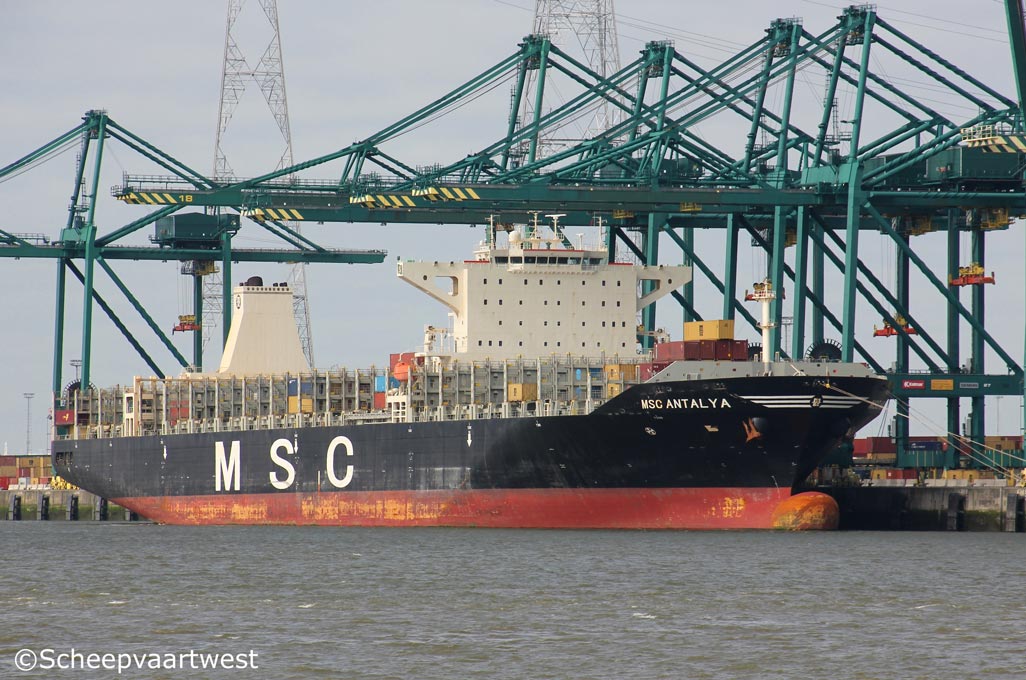

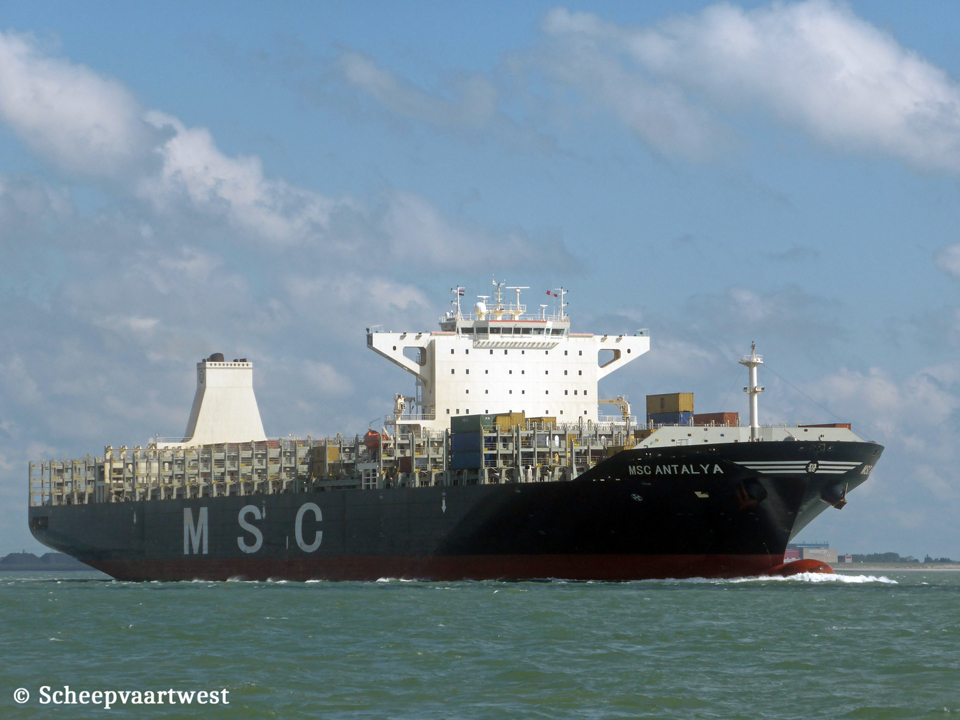

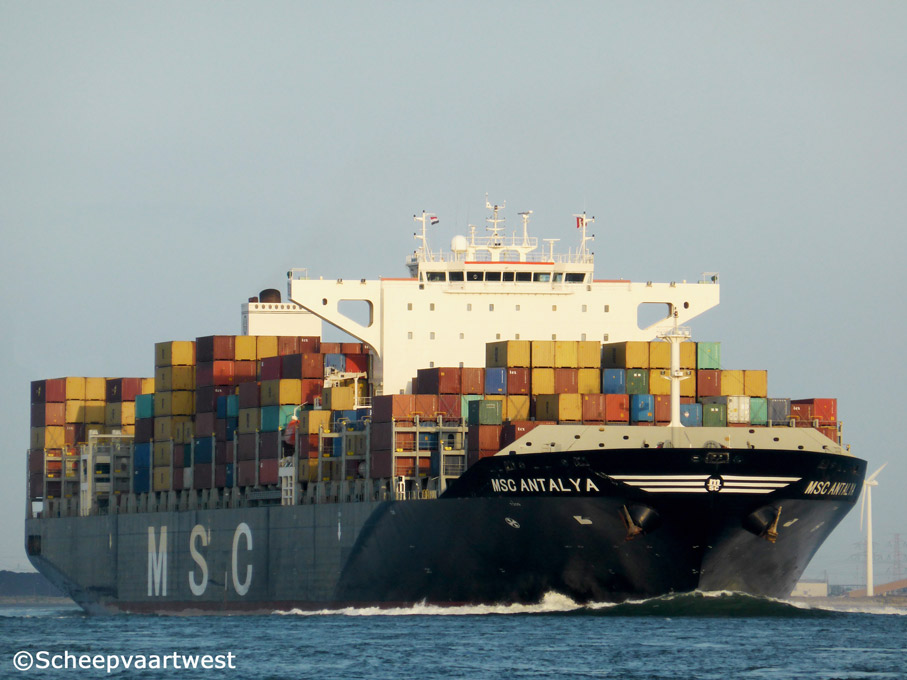

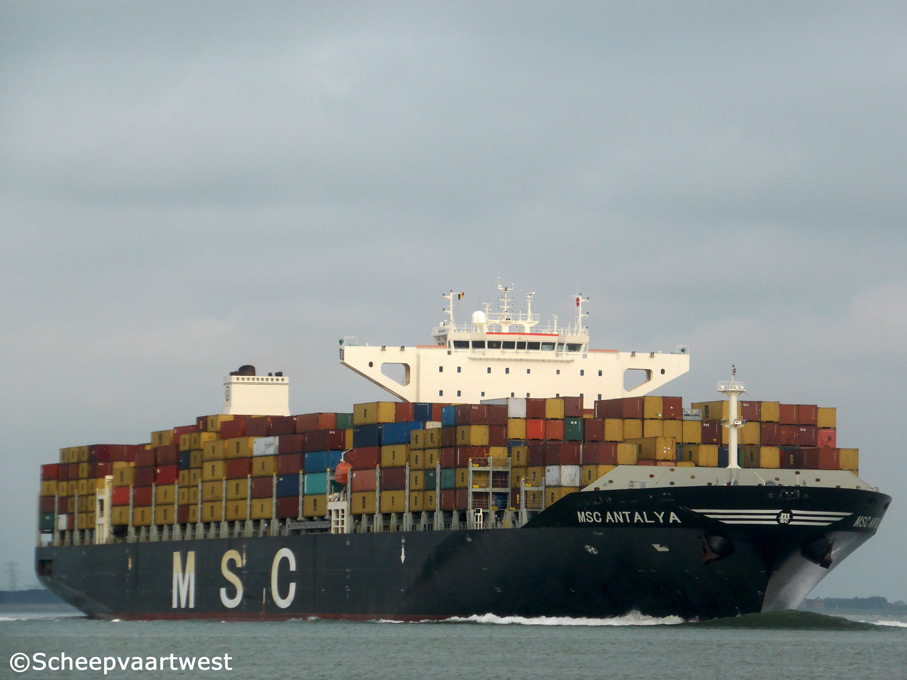

| Westerschelde 27/07/14 | Westerschelde 14/09/14 | Antwerpen 07/08/16 | Westerschelde 22/08/15 | |||
|
Name |
MSC ANTALYA |
|
Previous names |
2013 Joseph Schulte 2013 Judith Schulte |
|
Type |
Cellular containership |
|
IMO-number |
9605152 |
|
Call sign |
VRME8 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
94.402 t |
|
DWT |
Summer: 111.862 t |
|
NT |
52.968 t |
|
Number of 20ft containers |
9.403 |
|
Container capacity 14t |
7.100 |
|
Reefer capacity |
1.000 |
|
Length |
299,88 m overall 285,40 m registered |
|
Breadth |
48,20 m registered |
|
Draught |
14,50 m |
|
Depth |
24,80 m moulded |
|
Speed |
22,2 knots |
|
Built |
2013 |
|
Keel laid |
12/06/2012 |
|
Launch date |
12/12/2012 |
|
Date of completion |
29/07/2013 |
|
Builder |
Shanghai Jiangnan Changxing Heavy Industry Co., Ltd. 1888, Jiangnan Ave Changxing Island Shanghai People's Republic of China |
|
Yard number |
H1065A |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
8 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 9S90ME-C9.2 - 2 stroke 9 cylinder 900 x 3.260 mm combustion engine 52.290 kW / 71.093 hp at 84,0 rpm Year of manufacture: 2012 Manufacturer: Hyundai Heavy Industries Co., Ltd. 1, Jeonha-dong, Dong-gu Ulsan, Kyongsang-namdo Republic of Korea |
|
Propellers |
1x Solid propeller (Keyless) - aft at 84,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 63,96 m² Year of manufacture: 2012 1x Steam boiler, exhaust gas heated - 11,8 bar Heating surface: 1.420 m² Manufacturer: KangRim Industries Co., Ltd. (3rd Factory) 40, Wongnam-dong Changwon Republic of Korea |
|
Electric installations |
5x Plants each 6.600 V - 4.150 kVA 1x Plant 440 V - 375 kVA 1x Plant 24 V - 10 Ah 2x Plants each 24 V - 80 Ah 12x Plants each 24 V - 200 Ah 12x Plants each 24 V - 300 Ah 12x Plants each 24 V - 300 Ah 9x Plants each 108 V - 260 Ah |
|
Generators |
4x Main diesel generatorsets each 4.150 kVA |
|
Emergency generator |
1x Diesel generatorset 375 kVA |
|
Batteries |
12x Batteries for other purpose each 300 Ah 12x Batteries for UPS navigation each 300 Ah 12x Batteries for UPS radio each 200 Ah 9x Batteries for other purpose each 130 Ah 9x Batteries for other purpose each 130 Ah 2x Batteries for start emergency engine each 80 Ah 1x Battery for Other purpose 10 Ah |
|
Compressed air receivers |
2x Receivers each 16.500 litres - 30,0 bar 1x Receiver 300 litres - 30,0 bar 1x Receiver 300 litres - 10,0 bar 2x Receivers each 500 litres - 7,0 bar 1x Receiver 100 litres - 7,0 bar |
|
Bow thruster |
1x Transverse thruster 3.000 kW, forward |
|
Anchor equipment |
3x Anchors weight each 20.000 kg Chain length: 770,00 m Diameter: 111 mm |
|
Cargo gear |
Gearless |
|
Crew size |
27 |
|
Manager |
Bernhard Schulte Shipmanagement (Hong Kong) Ltd. 2602, K Wah Centre 191, Java Road North Point Hong Kong - China |
|
Operator |
MSC - Mediterranean Shipping Company S.A. |
|
Registered owner |
Darby Park Shipping Co. Pte. Ltd. 152 Beach Road #32-00 Gateway East Singapore City Republic of Singapore |
|
Renamed |
06/2020 Judith Schulte Hong Kong, China - call sign: VRME8 Owner & manager: Hanseatic Unity Chartering Gmbh & Co KG, Hamburg - Germany 08/2023 MSC Lagos X Portugal, Madeira - Call sign: CQ2074 Owner: Judith Oceanway Limited Manager: Bernhard Schulte Shipmanagement (Hong Kong) Limited Partnership |
|
Latest data adjustment |
20 May 2024 |
