Westerschelde 13 September 2019 |
 |
 |
 |
 |
 |
||||
| WS 13/09/19 | Westerschelde 13/07/16 | Westerschelde 19/09/16 | Westerschelde 21/04/17 | Westerschelde 26/06/17 | ||||
|
Name |

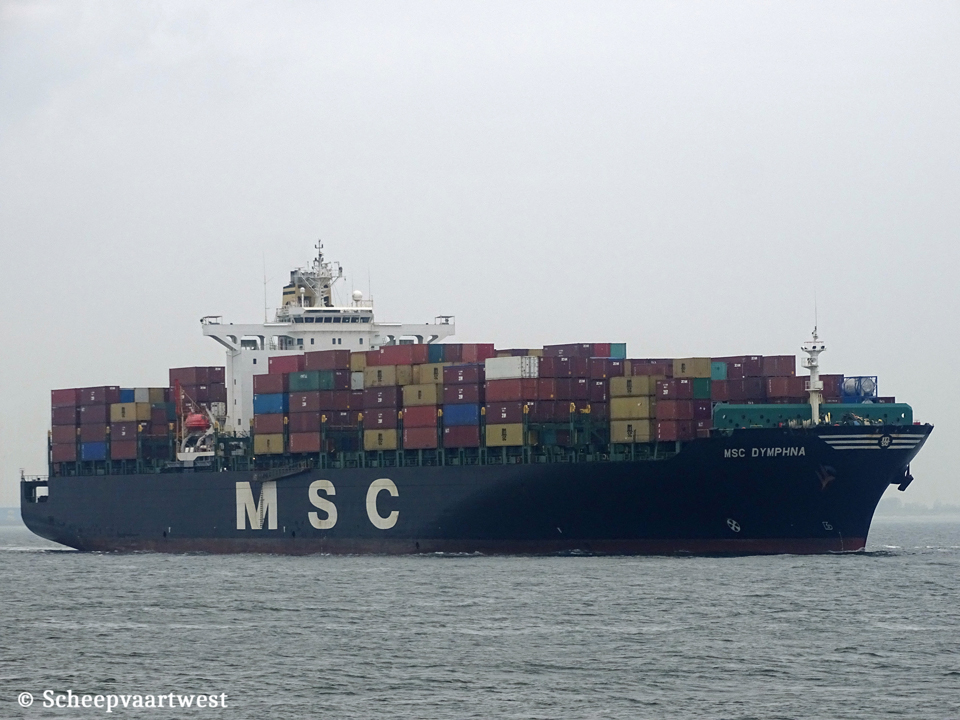

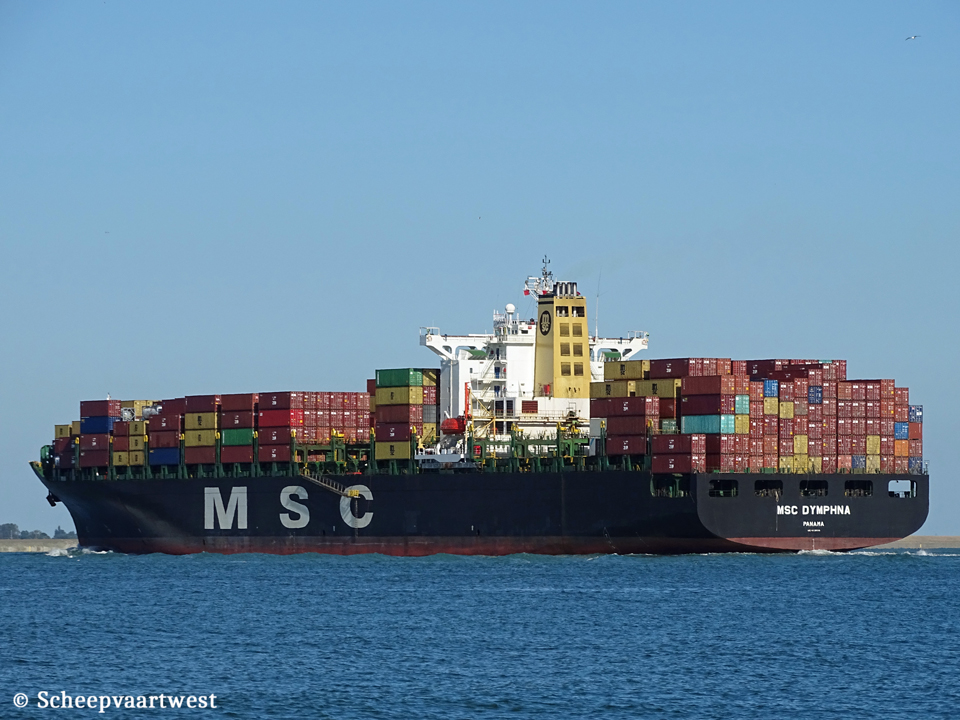

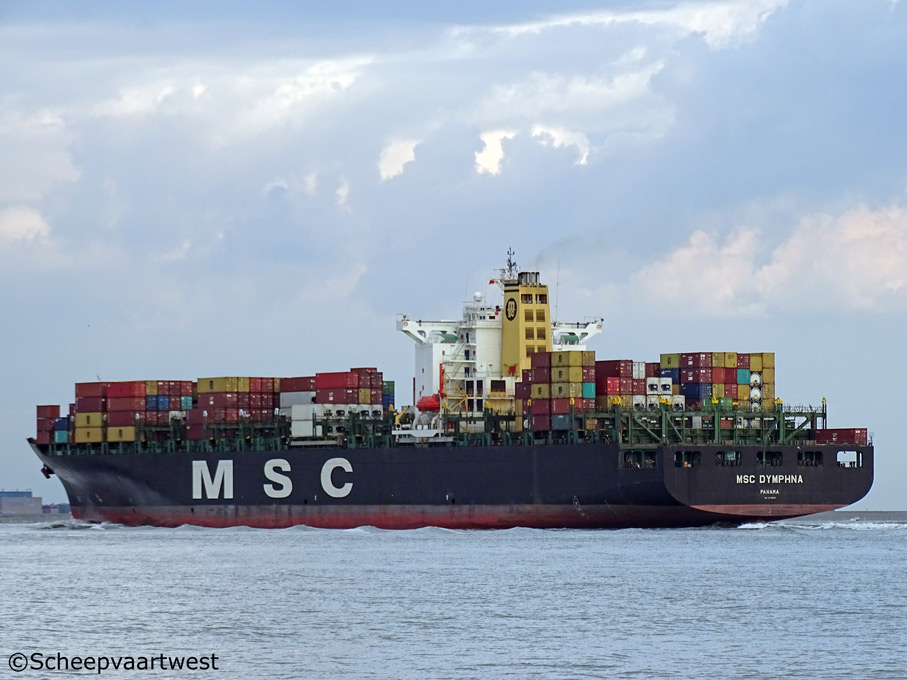

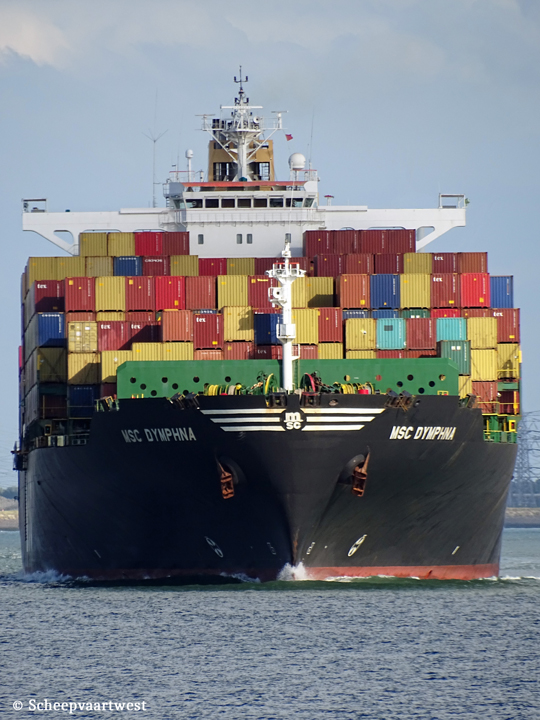

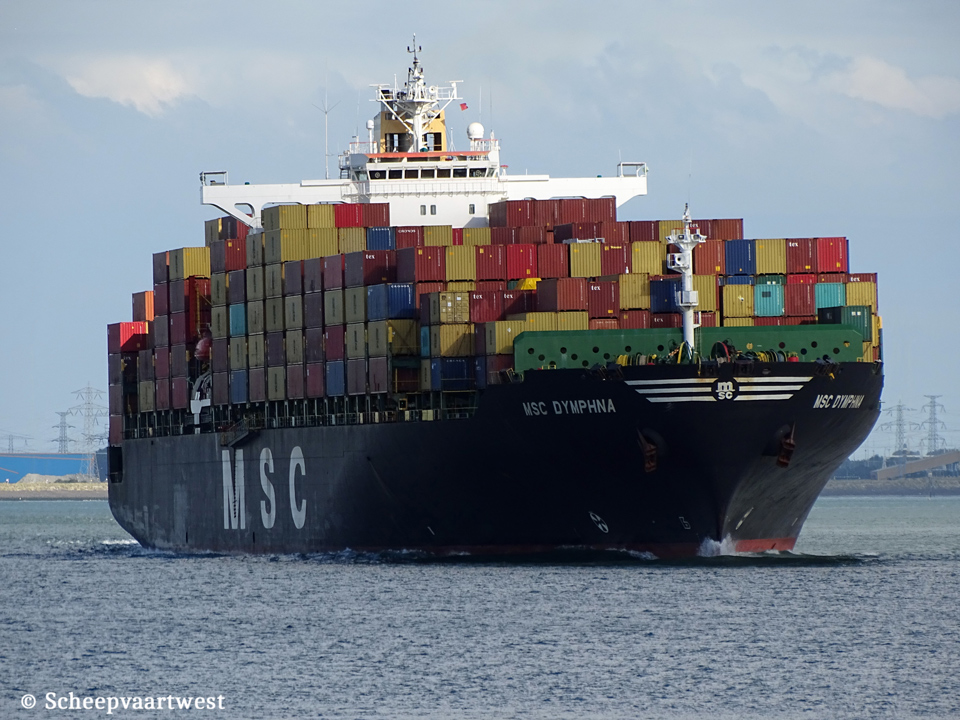

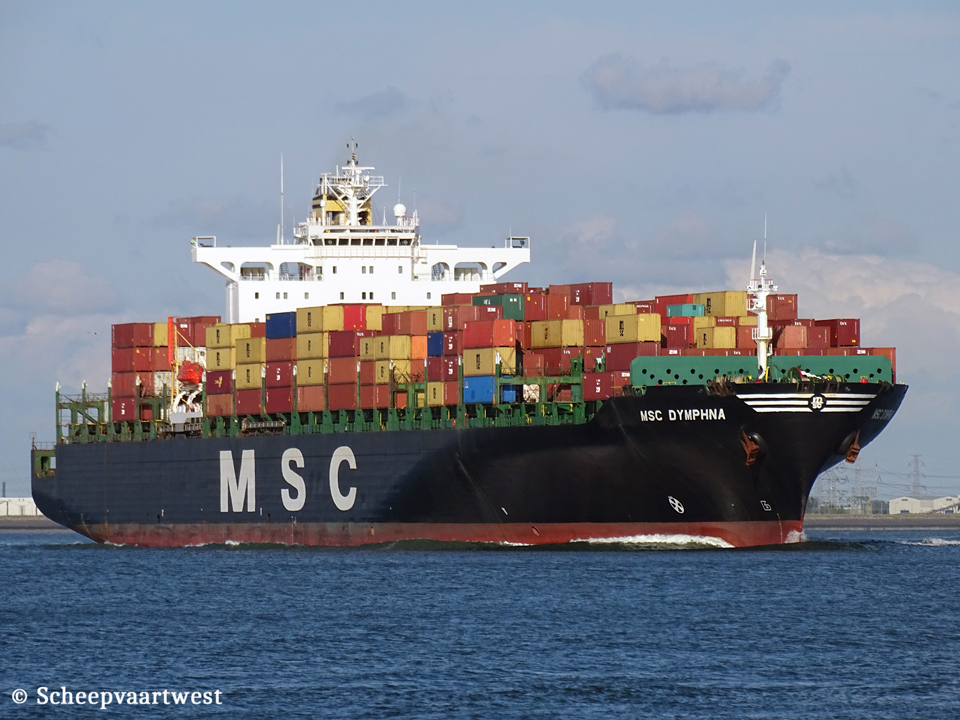

MSC DYMPHNA |
|
Previous names |
1996 - 04/2009 Hyundai Discovery 2009 - 03/2001 MSC Discovery 2001 - 02/2013 Hyundai Discovery |
|
Type |
Cellular containership |
|
IMO-number |
9110391 |
|
Call sign |
3EXN |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
Previous flag |
United Kingdom |
|
GT |
64.054 t |
|
DWT |
68.363 t |
|
NT |
32.490 t |
|
Light displacement |
23.050 t |
|
Number of 20ft containers |
5.551 |
|
Container capacity 14t |
4.360 |
|
Reefer capacity |
390 |
|
Length |
274,67 m overall 263,00 m between perpendiculars |
|
Breadth |
40,00 m |
|
Draught |
14,02 m |
|
Keel to mast end |
62,09 m |
|
Freeboard |
10.552 mm |
|
Depth |
24,20 m |
|
Speed |
Service: 17,0 knots Max.: 26,4 knots |
|
Built |
1996 |
|
Date of completion |
01/07/1996 |
|
Builder |
Hyundai Heavy Industries Co. Ltd. Ulsan South Korea |
|
Yard number |
H915 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 12K90MC-C - 2 stroke 12 cylinder 900 x 2.300 mm combustion engine 54.814 kW / 74.476 hp at 104,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x CHR 360,00 m² - 9,0 bar 1x CHO 40,00 m² - 7,0 bar |
|
Generators |
4x MAN-B&W/Holeby main diesel generatorsets each 2.219 kVA - 1.775 kW - 2.412 hp |
|
Bow thruster |
1x 2.000 kW |
|
Number of holds |
7 |
|
Total hold capacity |
138.000 m³ |
|
Tank capacities |
Fuel: 7.868 m³ |
|
Cargo gear |
Gearless |
|
Commercial manager |
MSC - Mediterranean Shipping Company S.A. chemin Rieu, 12-14 1208 Geneva Switzerland |
|
ISM manager |
MSC Shipmanagement Ltd. 8, Spyrou Kyprianou Avenue Limassol Cyprus |
|
Registered owner |
Marsint Shipping Inc. - Republic of Singapore Care of MSC Mediterranean Shipping Co SA chemin Rieu, 12-14 1208 Geneva Switzerland |
|
Latest data adjustment |
27 December 2021 |
