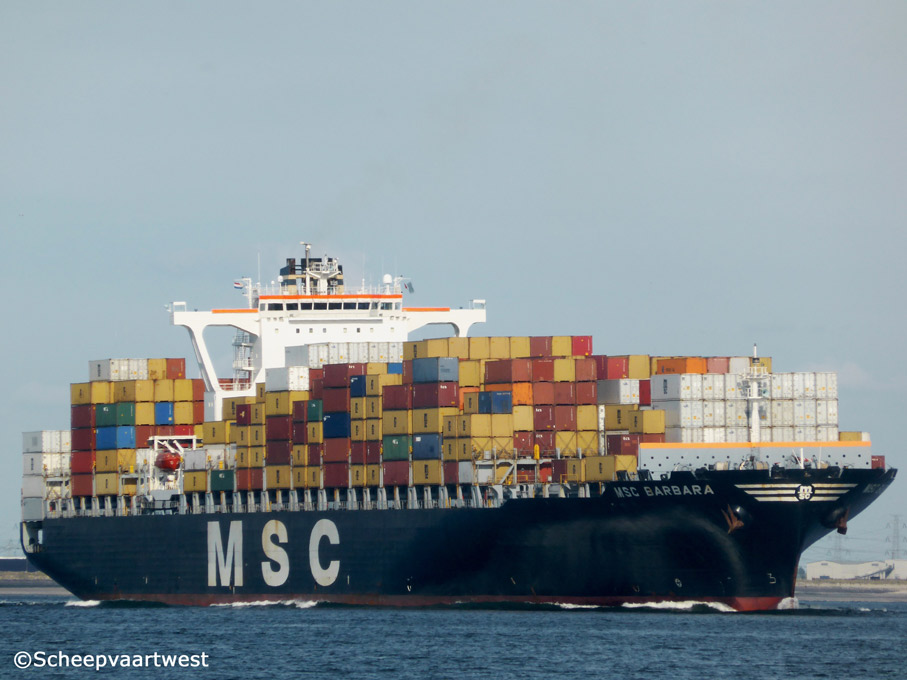

MSC Barbara 05

Westerschelde 22 June 2014

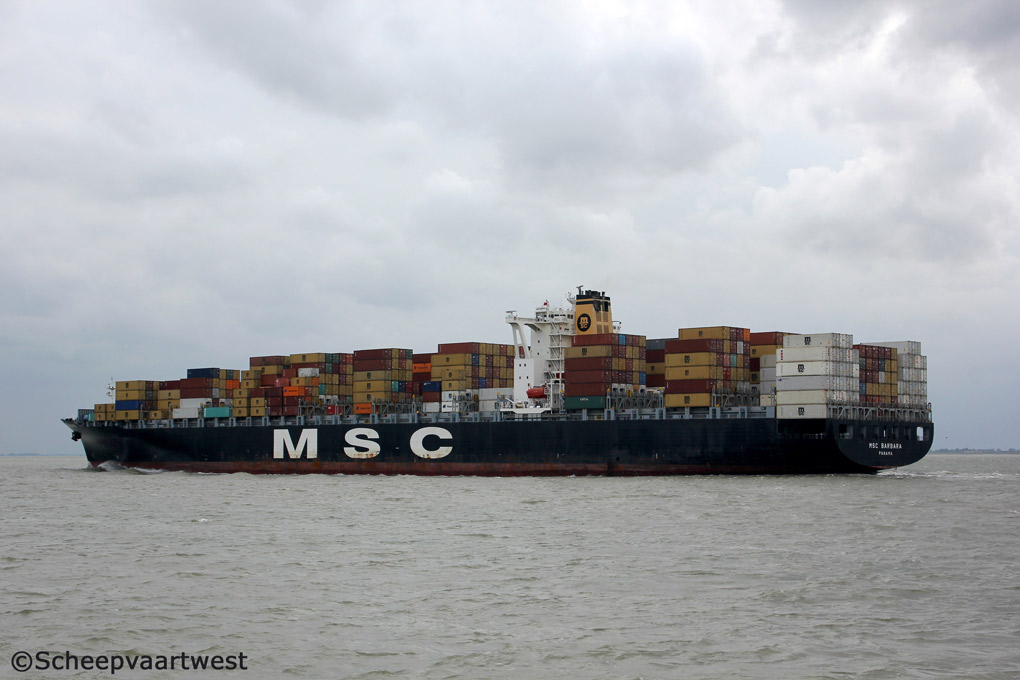

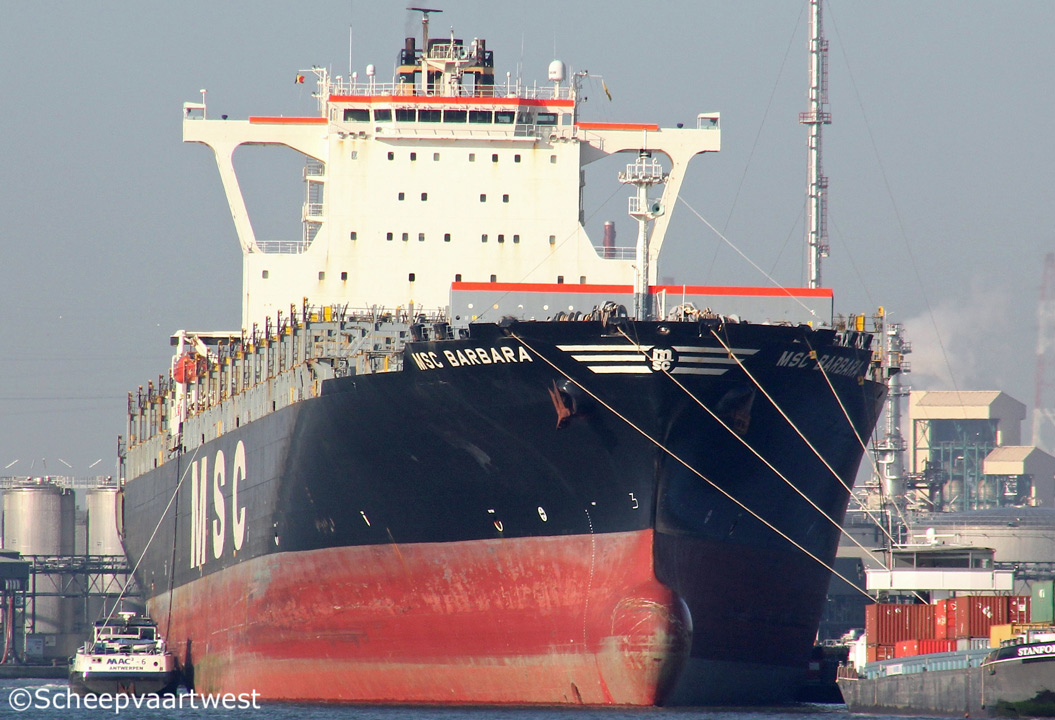

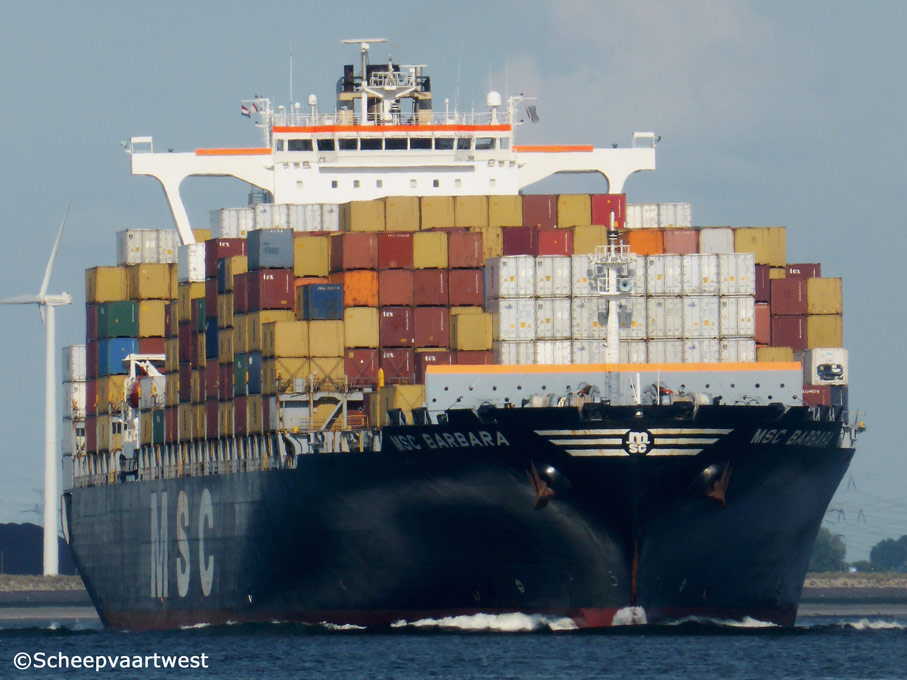

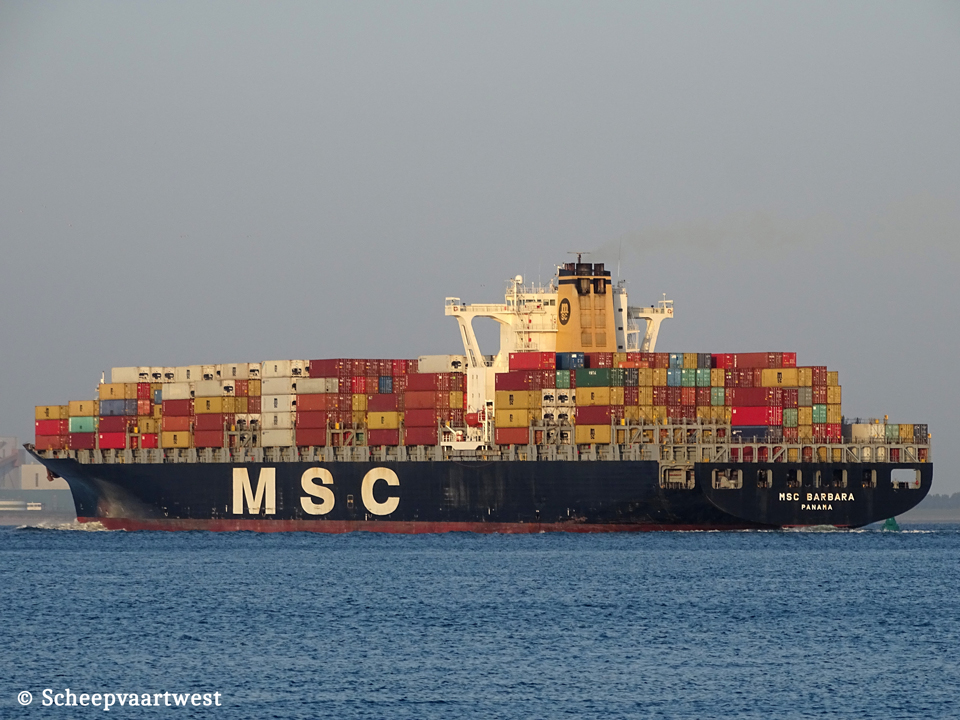

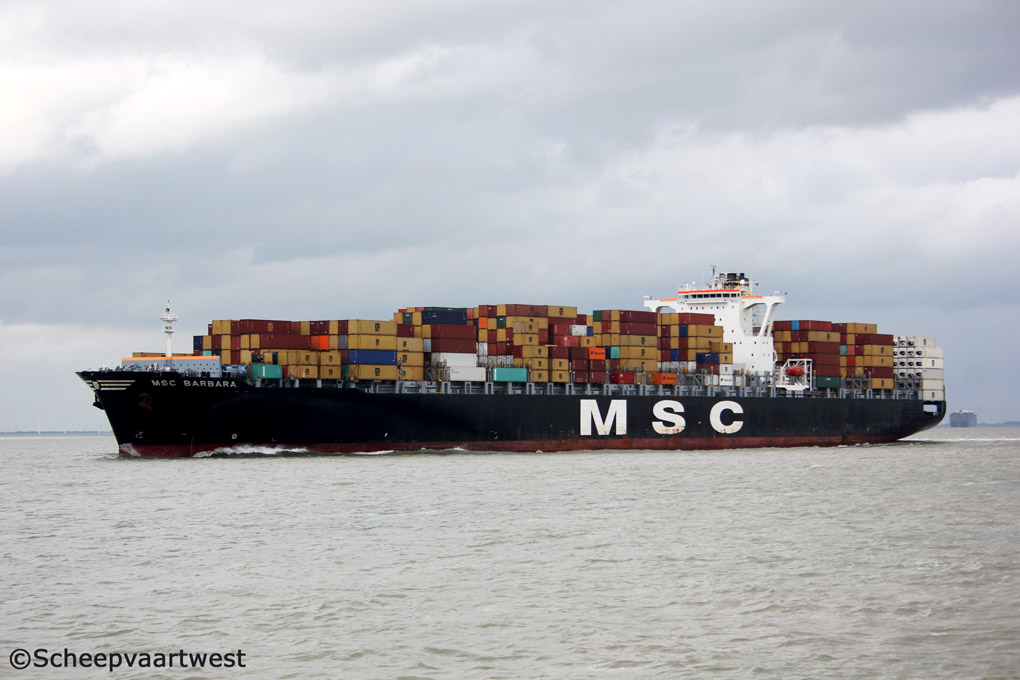

MSC Barbara 03   MSC Barbara 01   MSC Barbara 02   MSC Barbara 06   MSC Barbara 07   MSC Barbara IMO 9226932 08
Westerschelde 22/06/14 Westerschelde 17/08/14 Westerschelde 17/08/14 Westerschelde 25/05/15 Antwerpen 16/02/18   Westerschelde 05/06/18

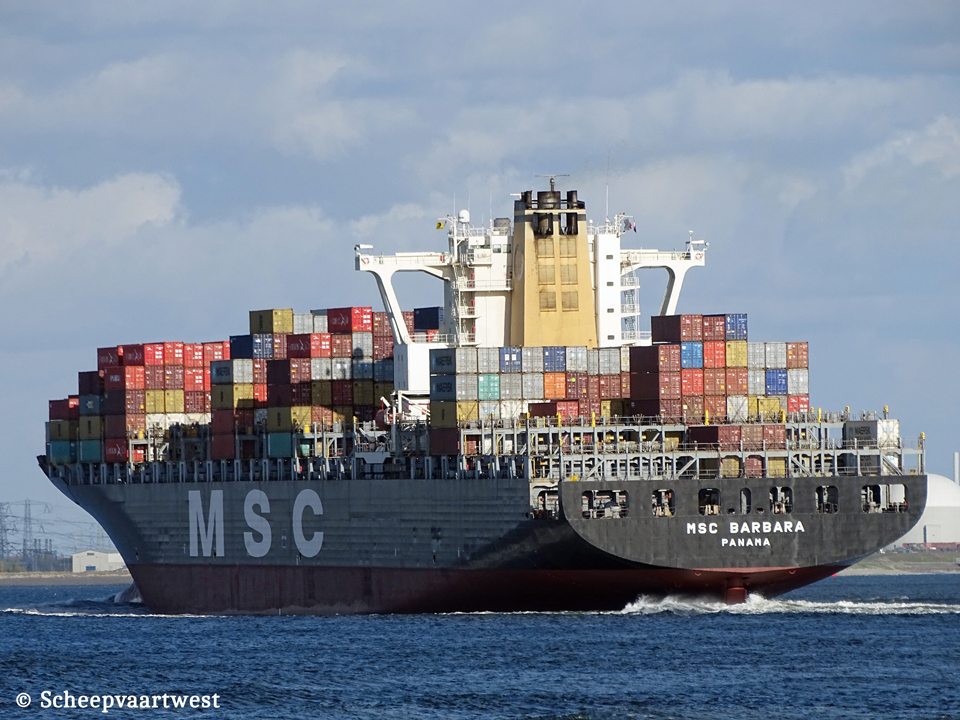

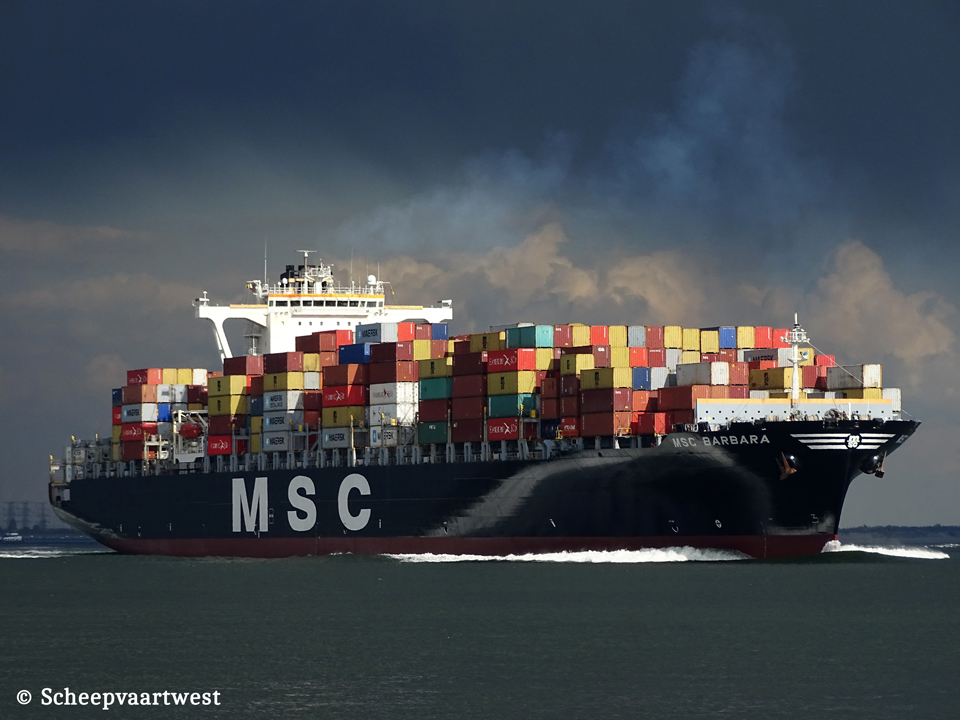

MSC Barbara IMO 9226932 09   MSC Barbara IMO 9226932 10
Westerschelde 18/04/17   Westerschelde 17/04/17


Name

MSC BARBARA

Type

Cellular containership

IMO-number

9226932

Call sign

HODU

Flag

Republic of Panama

Port of registry

Panama City

GT

73.819 t

DWT

Summer: 85.820 t

NT

47.138 t

Number of 20ft containers

6.730

Container capacity 14t

5.150

Reefer capacity

400

Length

303,94 m overall

293,42 m registered

Breadth

40,00 m registered

Draught

14,50 m

Keel to mast end

59,54 m

Freeboard

5.370 mm

Depth

24,20 m

Speed

Max.: 24,8 knots

Built

2002

Keel laid

04/12/2001

Launch date

16/03/2002

Date of completion

05/2002

Builder

Hyundai Heavy Industries Co., Ltd.

1, Cheonha-dong, Dong-gu

Ulsan, Kyongsang-namdo

Republic of Korea

Yard number

H 1354

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

8

Continuous decks

2

Main engine

1x MAN-B&W/Hyundai 10K98MC-C - 2 stroke 10 cylinder 980 x 2.400 mm combustion engine 57.700 kW / 70.291 hp at 104,0 rpm

Year of manufacture: 2001

Manufacturer: Hyundai Heavy Industries Co., Ltd.

1, Cheonha-dong, Dong-gu

Ulsan, Kyongsang-namdo

Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 104,0 rpm

Boilers

1x Steam boiler, oil fired - 9,8 bar

Heating surface: 68,0 m²

1x Steam boiler, exhaust gas heated - 9,8 bar

Heating surface: 894,0 m²

Year of manufacture: 2001

Manufacturer: KangRim Heavy Industries Co., Ltd. (1st Factory)

505, Sinpyung-dong, Saha-gu

Busan, Kyongsang-namdo

Republic of Korea

Electric installations

4x Plants each 440/220 V - 2.625 kVA

1x Plant 440 V - 625 kVA

2x Plants each 24 V - 42 Ah

2x Plants each 24 V - 200 Ah

4x Plants each 24 V - 200 Ah

12x Plants each 24 V - 200 Ah

12x Plants each 24 V - 500 Ah

Generators

4x MAN-B&W 8L27/38 main diesel generatorsets each 2.625 kVA

Emergency generator

1x Diesel generatorset 625 kVA

Compressed air receivers

2x Receivers each 22.000 litres - 33,0 bar

2x Receivers each 250 litres - 33,0 bar

1x Receiver 250 litres - 7,7 bar

Bow thruster

1x Variable pitch propeller LIPS - 2.500 kW, forward

Number of holds

8

Tank capacities

Ballast: 17.736 m³

Anchor equipment

3x Anchors weight each 16.900 kg

Chain length: 742,50 m

Cargo gear

Gearless

Crew size

32

Commercial manager

MSC - Mediterranean Shipping Co.

chemin Rieu, 12-14

1208 Geneva

Switzerland

ISM manager

MSC Shipmanagement Limited

MSC House, 8, Spyrou Kyprianou Avenue

Limassol

Cyprus

Registered owner

Xiang L40 HK International Ship Lease Co., Limited

Care of MSC Mediterranean Shipping Co SA

chemin Rieu, 12-14

1208 Geneva

Switzerland

Latest data adjustment

20 December 2022
