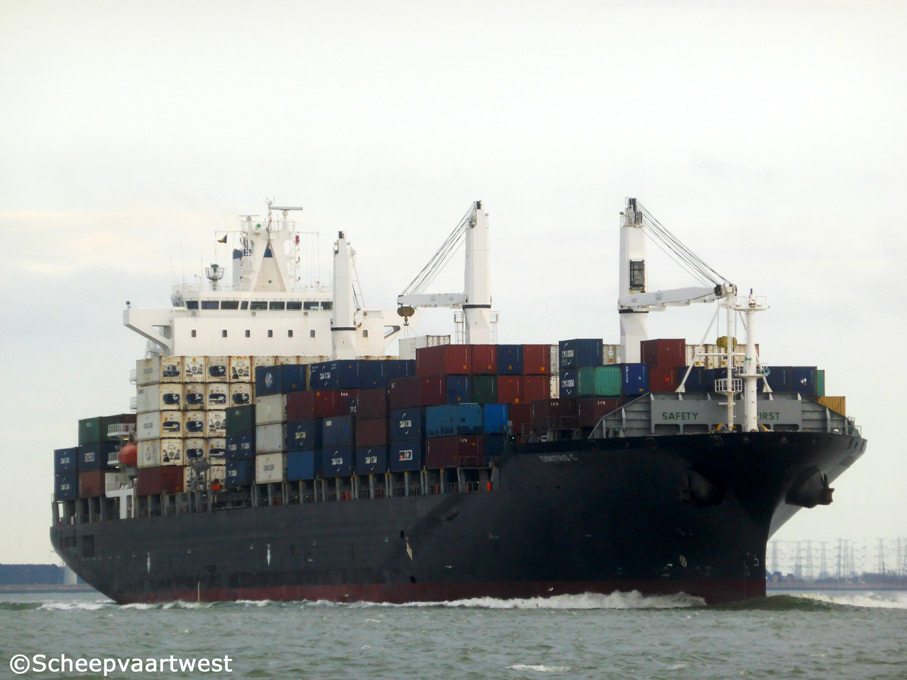

Dimitris C 01

Westerschelde 09 November 2014

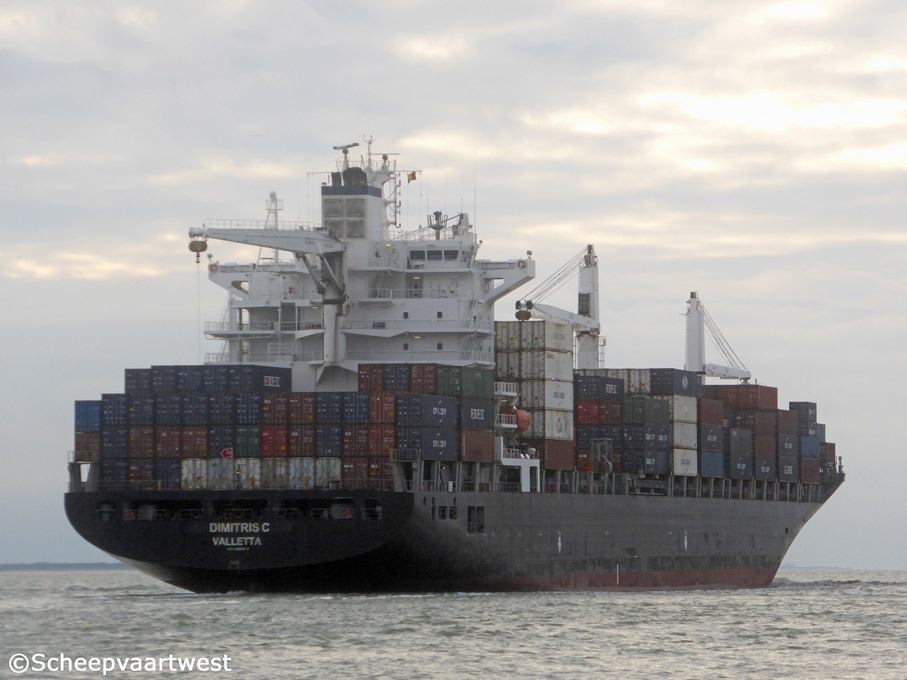

Dimitris C 02
Westerschelde 09/11/14



Name

DIMITRIS C

Previous names

Launch as: 2001 Santa Catalina

03.2001 11.2005 P&O Nedlloyd Dejima

11.2005 - 04.2001 Santa Catalina

04.2011 - 11.2013 Catalina Star

Type

Cellular containership

IMO-number

9210074

Call sign

9HA3500

Flag

Malta

Port of registry

Valletta

GT

37.113 t

DWT

Summer: 40.102 t

NT

18.650 t

Number of 20ft containers

3.430

Container capacity 14t

2.250

Reefer capacity

800

Length

243,12 m overall

231,35 m registered

Breadth

30,20 m registered

Draught

11,50 m

Depth

19,30 m

Speed

Max.: 22,9 knots

Built

2001

Keel laid

16.10.2000

Launch date

06.01.2001

Date of completion

05.03.2001

Builder

Samsung Heavy Industries Co., Ltd. Geoje Shipyard
530, Jangpyeong-ri, Sinhyeon-eup
Geoje, Kyongsang-namdo
Republic of Korea

Yard number

1316

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

8

Continuous decks

2

Main engine

1x Sulzer 7RTA84C - 2 stroke 7 cylinder 840 x 2.400 mm diesel engine - 28.385 kW at 102,0 rpm

Year of manufacture: 2001

Manufacturer: Samsung Heavy Industries Co., Ltd.
1339, Hyohaeng-ro
Hwaseong-si, Kyonggi-do
Republic of Korea

Propellers

1x Solid propeller (Keyless) - aft

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 75,0 m²

1x Steam boiler,exhaust gas heated - 9,0 bar

Heating surface: 469,0 m²

Year of manufacture: 2000

Manufacturer: Parat Anders Halvorsen AS
Tjoersvaagstrand 27
4401 Flekkefjord
Norway

Electric installations

4x Plants each 440/220 V - 2.250 kVA

1x Plant 440 V - 188 kVA

1x Plant 24 V - 400 Ah

1x Plant 24 V - 800 Ah

Generators

4x Main diesel generatorsets each 2.250 kVA

Emergency generator

1x diesel generatorset 188 kVA

Batteries

1x Battery for start emergency engine 400 Ah

1x Battery for start emergency engine 400 Ah

1x Battery for UPS radio 400 Ah

Compressed air receivers

2x Receivers each 6.900 litres - 31,0 bar

1x Receiver 300 litres - 9,0 bar

1x Receiver 100 litres - 7,7 bar

Bow thruster

2x Transverse thruster Nakashima - each 1300 kW, forward

Tank capacities

Fuel oil: 6.345 m³

Ballast water: 12.459 m³

Anchor equipment

3x Anchors weight each 11.100 kg
Chain length: 687,50 m

Cargo gear

4x Cranes - SWL 45 t each

Manager

Danaos Shipping
Athens
Greece

Latest data adjustment

15 December 2014
