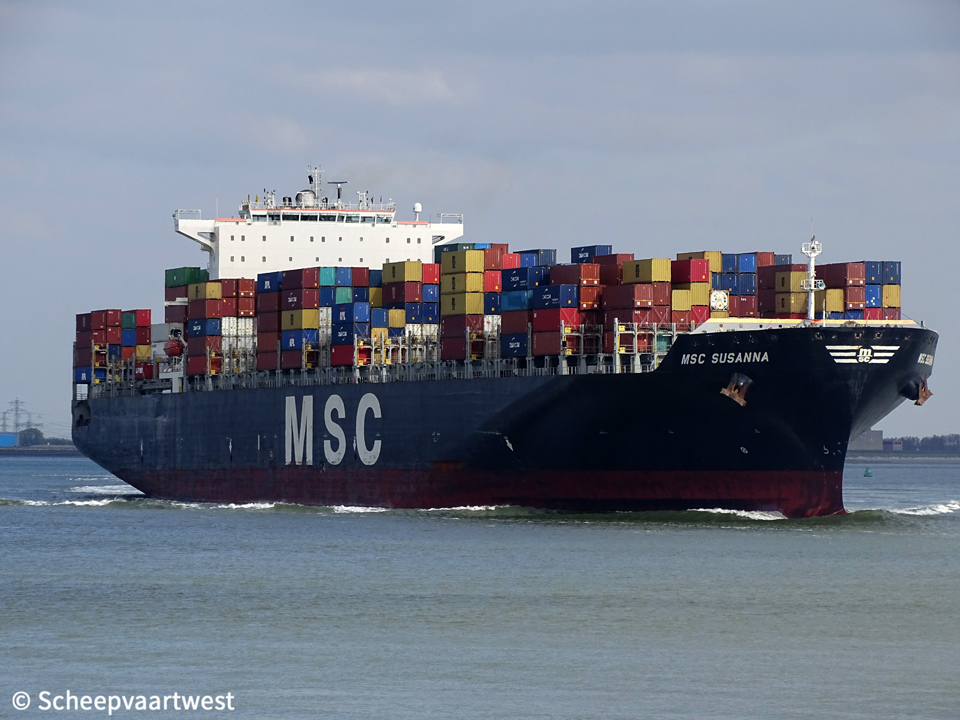

MSC Susanna 07

Westerschelde 14 April 2020

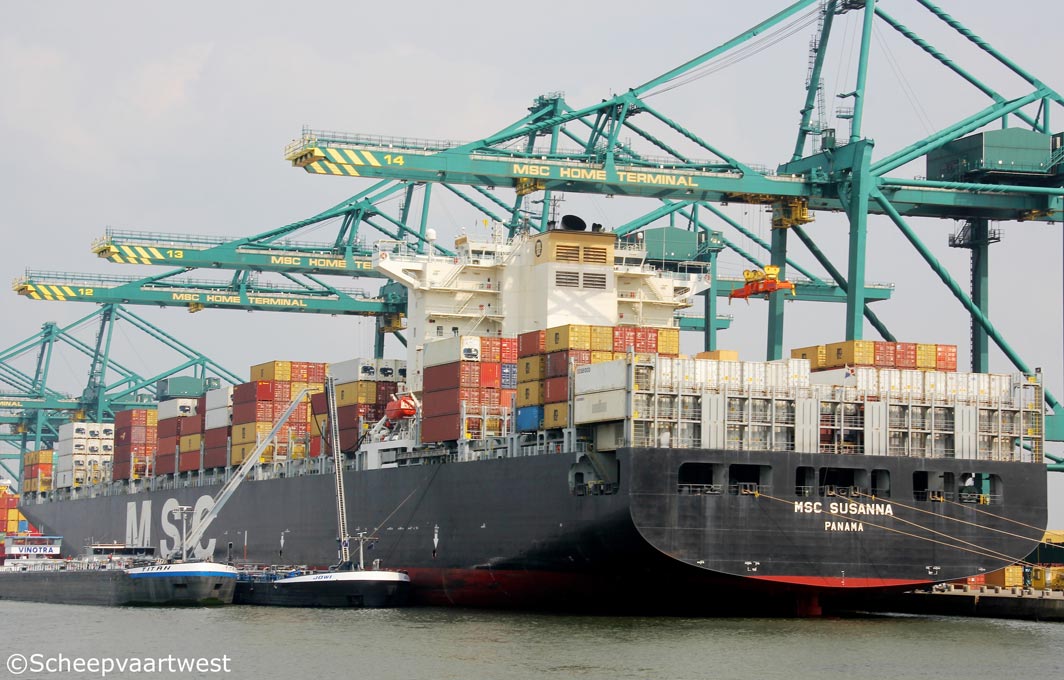

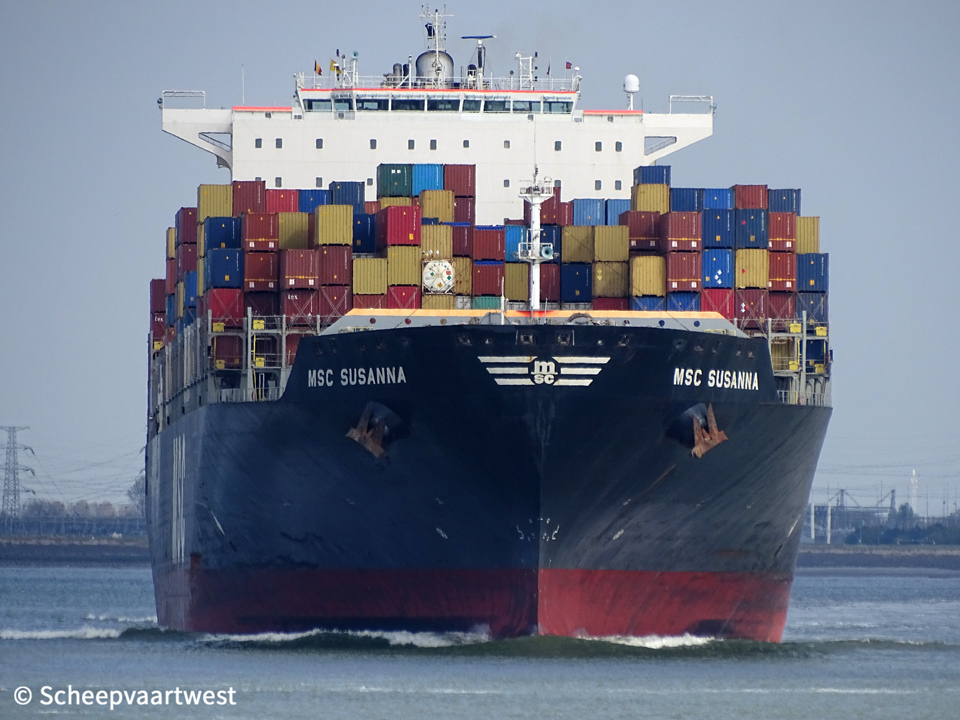

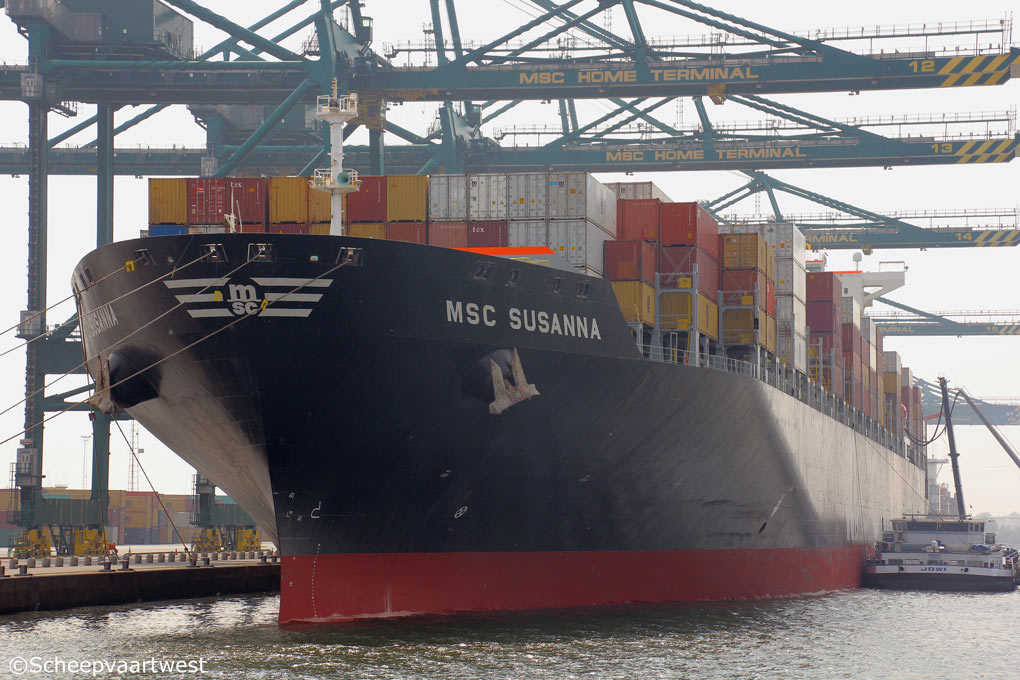

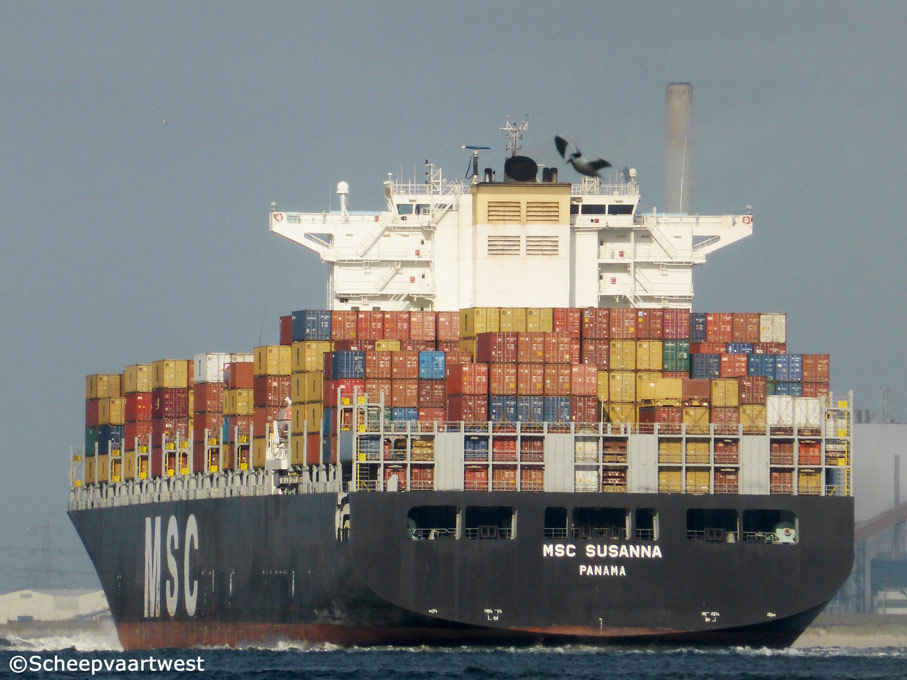

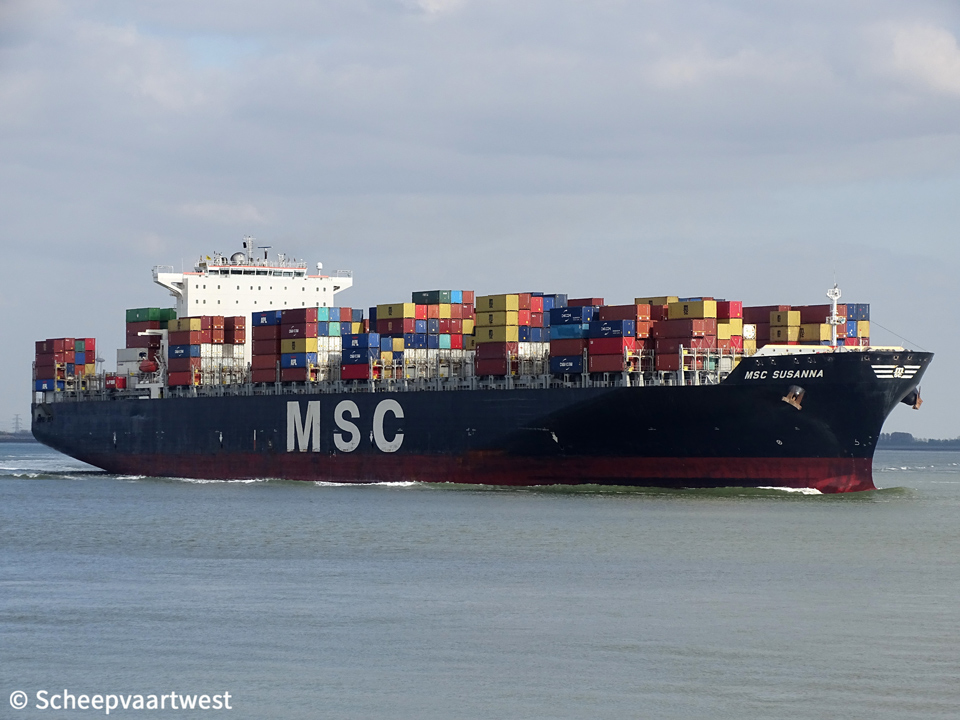

MSC Susanna 08   MSC Susanna 05   MSC Susanna 03   MSC Susanna 02   MSC Susanna 01
Westerschelde 14/04/20 Westerschelde 14/04/20 Antwerpen 26/05/16 Antwerpen 26/05/16   Westerschelde 17/06/14



Name

MSC SUSANNA

Type

Cellular containership

IMO-number

9290543

Call sign

3ECU4

Flag

Republic of Panama

Port of registry

Panama City

GT

107.849 t

DWT

Summer: 117.095 t

NT

61.479 t

Number of 20ft containers

9.178

Container capacity 14t

6.500

Reefer capacity

700

Length

336,67 m overall

323,24 m registered

Breadth

46,60 m registered

Draught

15,00 m

Forecastle

160,99 m

Bridge

150,59 m

Poop

10,39 m

Depth

27,20 m moulded

Speed

25,0 knots

Built

2005

Keel laid

22/04/2005

Launch date

25/06/2005

Date of completion

14/09/2005

Builder

Samsung Heavy Industries Co., Ltd. Geoje Shipyard

530, Jangpyeong-ri, Sinhyeon-eup

Geoje, Kyongsang-namdo

Republic of Korea

Yard number

1509

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

11

Continuous decks

2

Main engine

1x MAN-B&W 12K98MC-C - 2 stroke 12 cylinders 980 x 2.400 mm combustion engine 68.520 kW at 104,0 rpm

Year of manufacture: 2005

Manufacturer: HSD Engine Co., Ltd.

69 Sinchon-dong

Changwon, Kyungnam 641-370

Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 104,0 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 55,0 m²

1x Steam boiler, exhaust gas heated - 10,0 bar

Heating surface: 1.182,0 m²

Year of manufacture: 2005

Manufacturer: Alfa Laval Qingdao Ltd.

86 Guangzhou Road North Jiaozhou

Qingdao

People's Republic of China

Electric installations

4x Plants each 6.600/450 V - 3.437,5 kVA

1x Plant 450 V - 625 kVA

1x Plant 24 V - 92 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 200 Ah

1x Plan t24 V - 300 Ah

Generators

4x MAN-B&W 6L32/40 main diesel generatorsets each 3.437,5 kVA

Emergency generator

1x Diesel generatorset 625 kVA

Batteries

1x Battery for Start emergency engine 200 Ah

Compressed air receivers

2x Receivers each 14.500 litres - 33,0 bar

1x Receiver 300 litres - 33,0 bar

1x Receiver 250 litres - 7,7 bar

Bow thruster

1x Transverse thruster 3.000 kW - forward

Anchor equipment

3x Anchors weight each 20.000 kg

Chain length: 770,00 m

Lifting equipment

3x Cranes - SWL 12,5 t each

2x Cranes - SWL 4,0 t each

Cargo gear

Gearless

Crew size

34

Manager

MSC Mediterranean Shipping Company S.r.l.

Via Francesco Ciampa, 29

80063 Piano di Sorrento

Naples

Italy

Operator

MSC - Mediterranean Shipping Company S.A.

Registered owner

Compania Naviera Susanna S.A.

Eskildsen & Eskildsen 4 Edifico Uni ersal Calle 50 No. 102

Panama City

Republic of Panama

Latest data adjustment

26 June 2020
