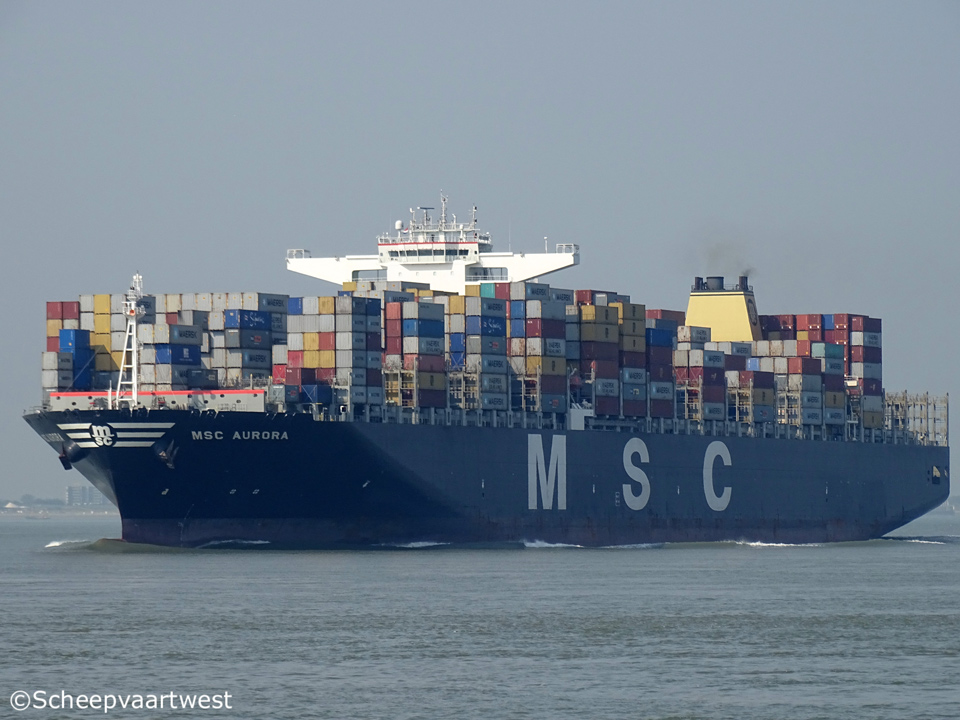

MSC Aurora 11

Westerschelde June 2016

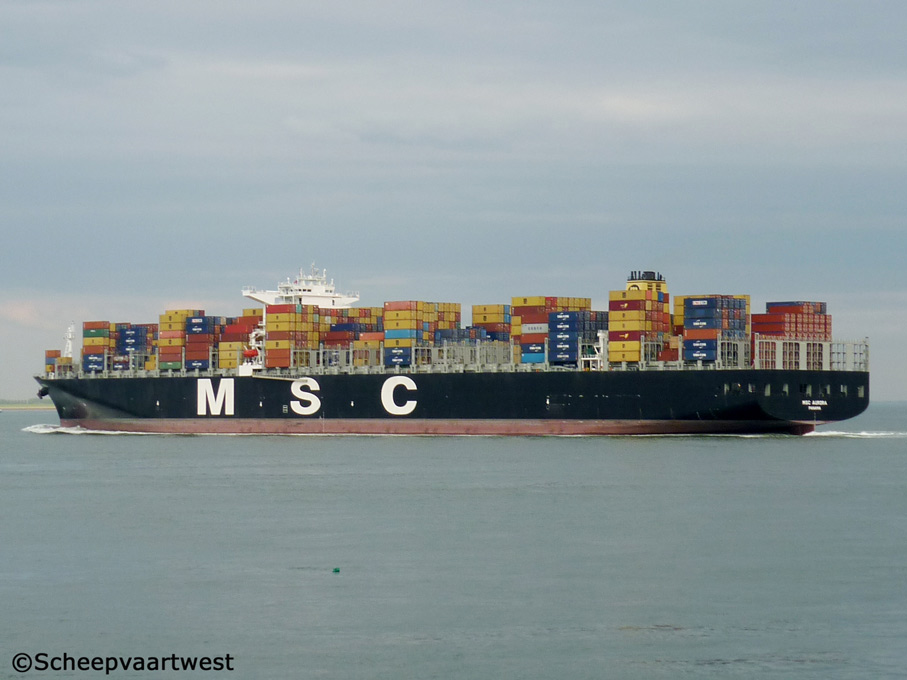

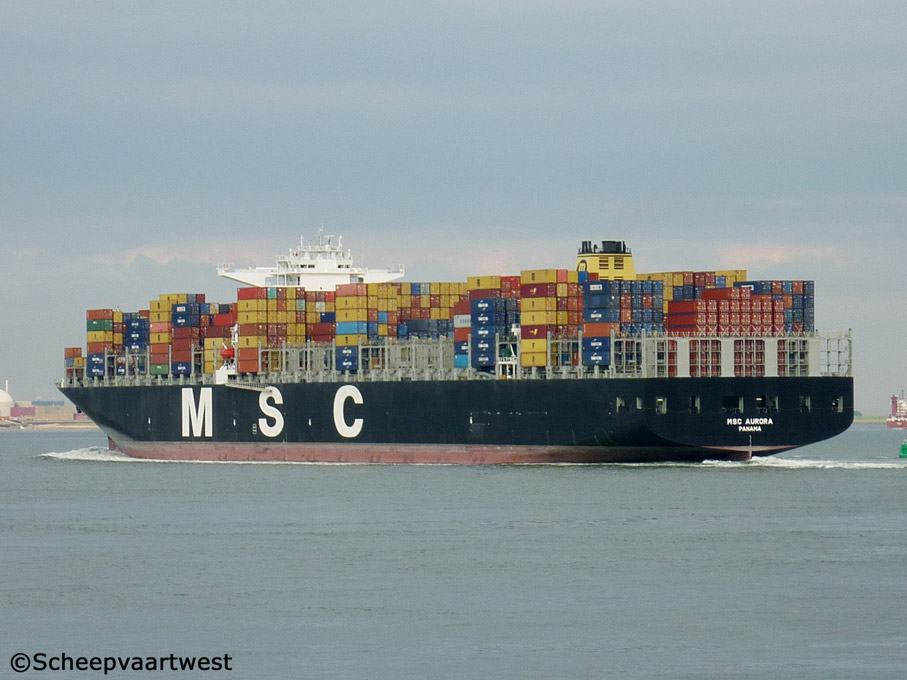

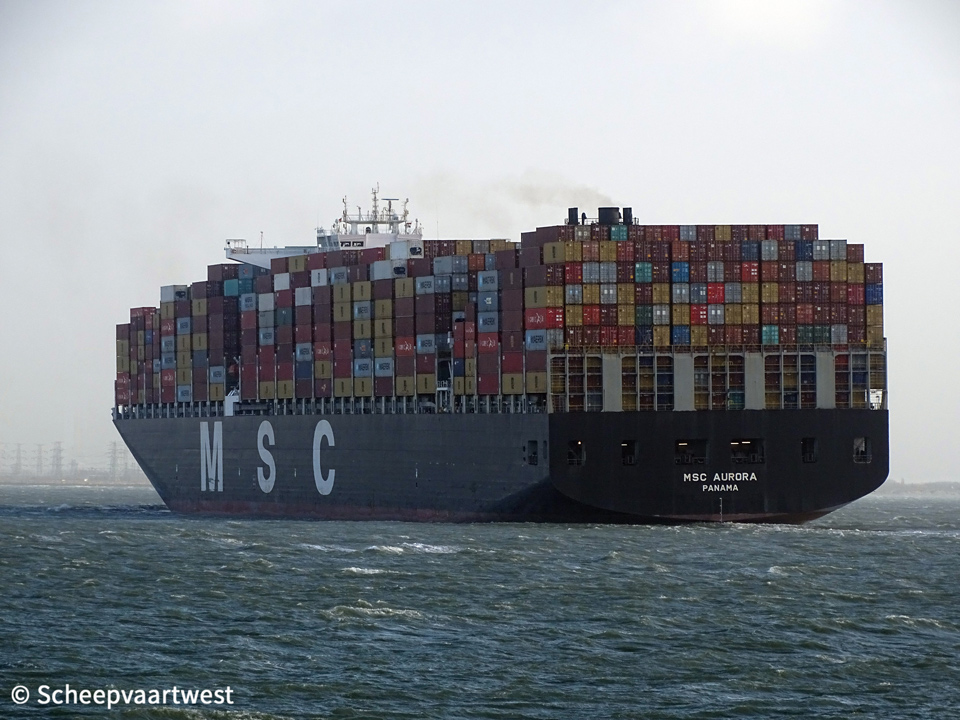

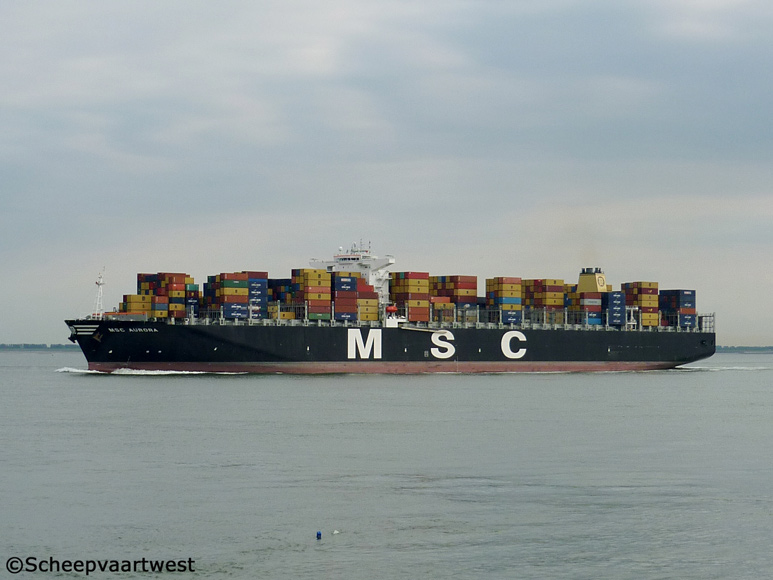

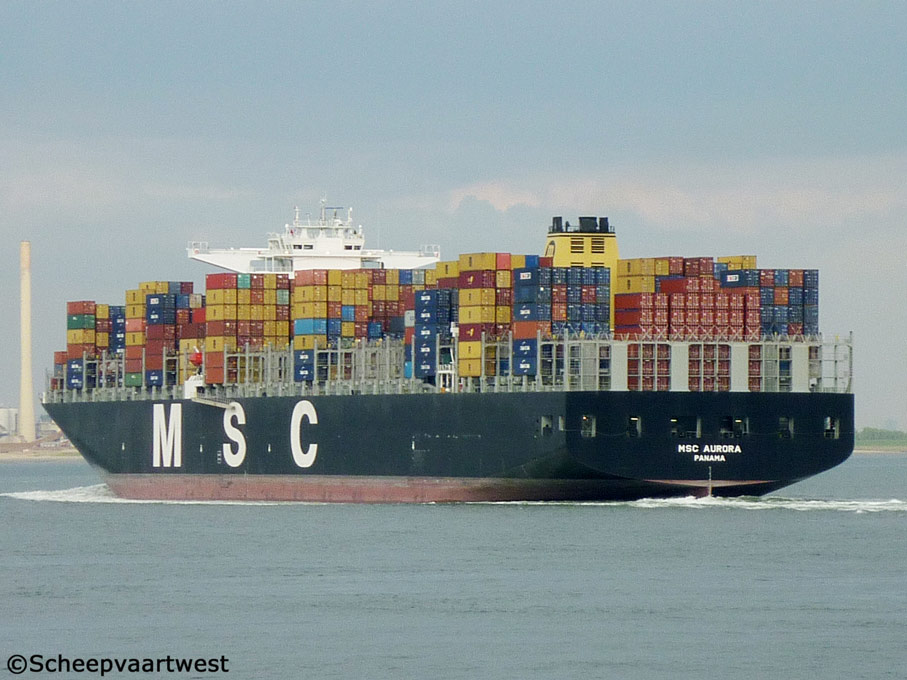

MSC Aurora 02   MSC Aurora 05   MSC Aurora 06   MSC Aurora 08   MSC Aurora 10   MSC Aurora 12
Westerschelde 02/07/12 Westerschelde 02/07/12 Westerschelde 02/07/12 Westerschelde 02/07/12   Westerschelde 02/07/12   Westerschelde 24/12/19

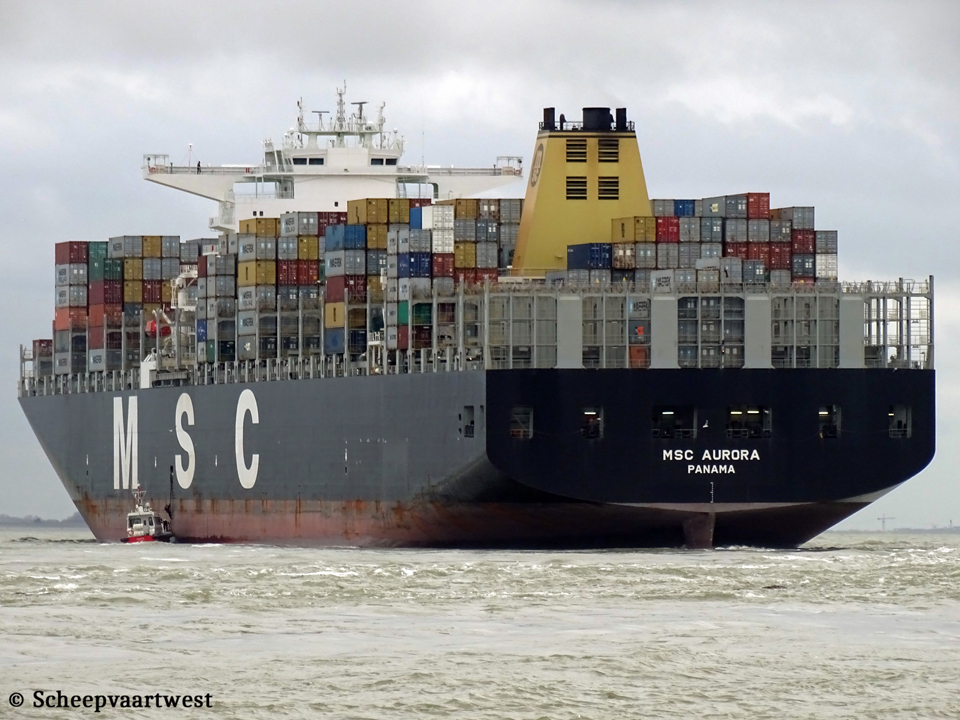

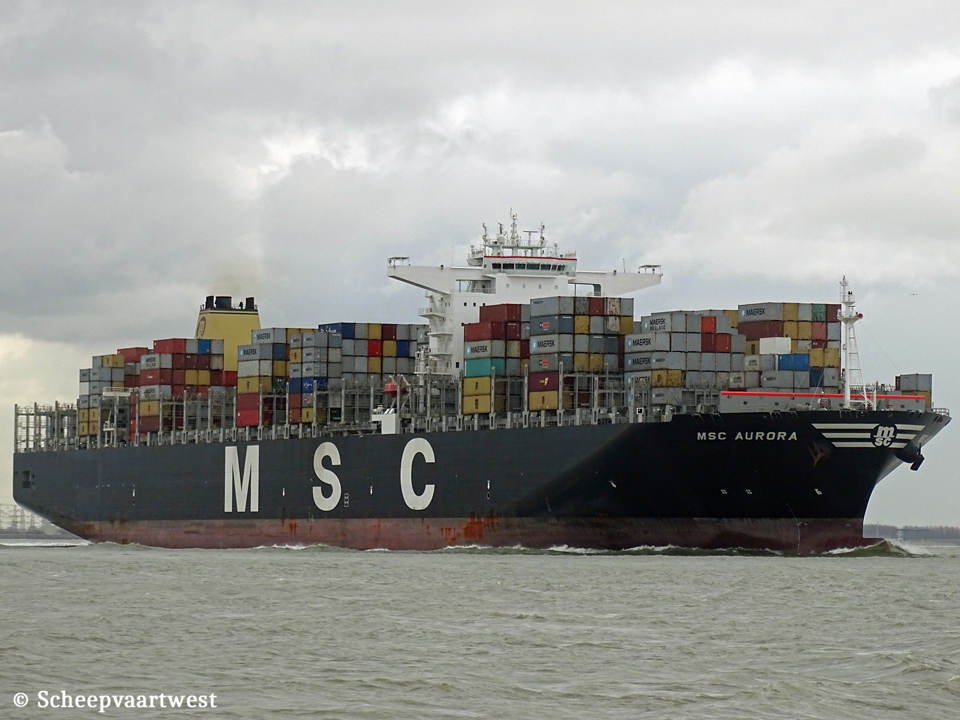

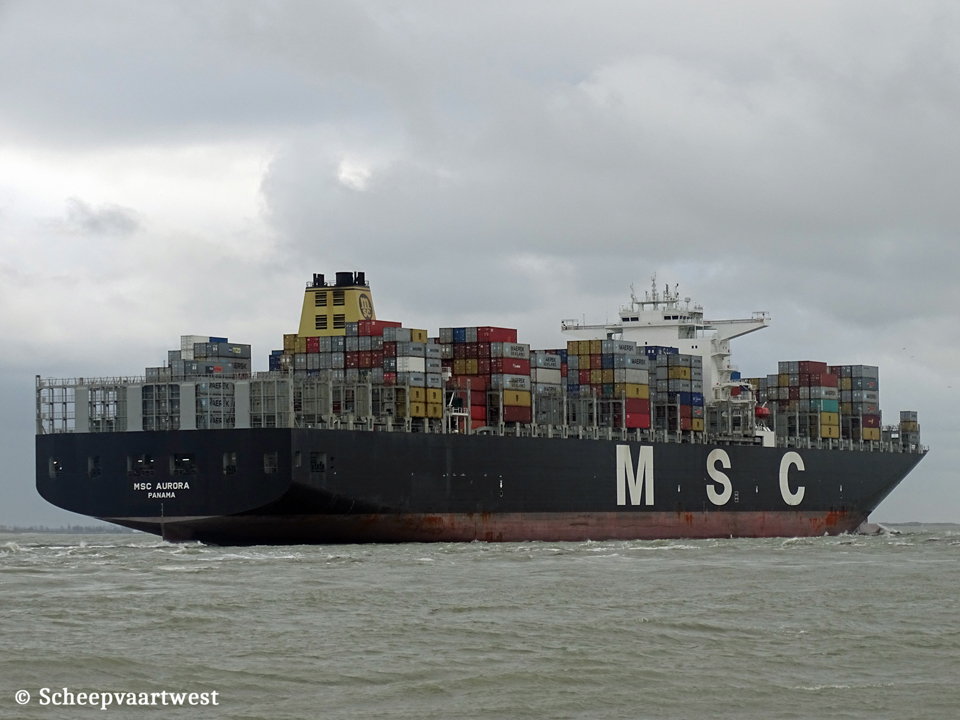

MSC Aurora IMO 9484481 13   MSC Aurora IMO 9484481 14   MSC Aurora IMO 9484481 15
Westerschelde 10/02/12   Westerschelde 10/02/12   Westerschelde 10/02/12


Name

MSC AURORA

Type

Cellular containership

IMO-number

9484481

Call sign

3FAT3

Flag

Republic of Panama

Port of registry

Panama City

GT

143.521 t

DWT

Summer: 154.494,3 t

NT

83.512 t

Number of 20ft containers

13.050

Container capacity 14t

9.400

Reefer capacity

2.000

Length

365,80 m overall

351,80 m registered

Breadth

48,40 m registered

Draught

16,00 m

Depth

29,90 m moulded

Speed

24,0 knots

Built

2012

Keel laid

07/10/2011

Launch date

19/11/2011

Date of completion

07/03/2012

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd. Okpo Shipyard

3370, Geoje-daero

Geoje-si

Republic of Korea

Yard number

4203

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Partly double bottom (e.g. interrupted in way of machinery space)

Watertight bulkheads

10

Continuous decks

2

Main engine

1x MAN-B&W/Doosan 12K98MC-C - 2 stroke 12 cylinder 980 x 2.400 mm combustion engine 72.240 kW at 104,0 rpm

Year of manufacture: 2011

Manufacturer: Doosan Engine Co., Ltd.

18, Gongdanro21-gil, Sungsan-gu

Changwon

Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 104,0 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 46,2 m²

1x Steam boiler, exhaust gas heated - 10,0 bar

Heating surface: 679,0 m²

Year of manufacture: 2011

Manufacturer: Alfa Laval Aalborg A/S

Gasvaerksvej 24

9100 Aalborg

Kingdom of Denmark

Electric installations

4x Plants each 6.600 V - 5.120 kVA

1x Plant 450 V - 625 kVA

1x Plant 24 V - 15 Ah

1x Plant 24 V - 63 Ah

1x Plant 24 V - 92 Ah

1x Plant 24 V - 300 Ah

1x Plant 24 V - 300 Ah

2x Plants each 108 V - 40 Ah

Generators

4x MAN 8L32/40 main diesel generatorsets each 5.120 kVA

Emergency generator

1x Cummins QSK19-DM diesel generatorset 625 kVA

Batteries

1x Battery for UPS navigation 300 Ah

1x Battery for UPS radio 300 Ah

1x Battery for automation 92 Ah

1x Battery for diesel control 63 Ah

2x Batteries for automation each 40 Ah

1x Battery for diesel control 15 Ah

Compressed air receivers

2x Receivers each16.500 litres - 33,0 bar

1x Receiver 540 litres - 33,0 bar

1x Receiver 200 litres - 33,0 bar

1x Receiver 2.000 litres - 7,7 bar

1x Receiver 350 litres - 7,7 bar

Bow thruster

2x Transverse thruster each 1.800 kW, forward

Anchor equipment

3x Anchors weight each 24.500 kg

Chain length: 782,7 m

Diameter: 122 mm

Cargo gear

Gearless

Crew size

30

Manager

MSC Mediterranean Shipping Company S.r.l.

Via Francesco Ciampa, 29

80063 Piano di Sorrento

Naples

Italy

Operator

MSC - Mediterranean Shipping Company

Registered owner

Aenas Holdings S.A.

PH Torre Panama, Piso 15 Boulevard Costa del Este y

Avenida la Roton

Panama City

Republic of Panama

Latest data adjustment

23 September 2020
