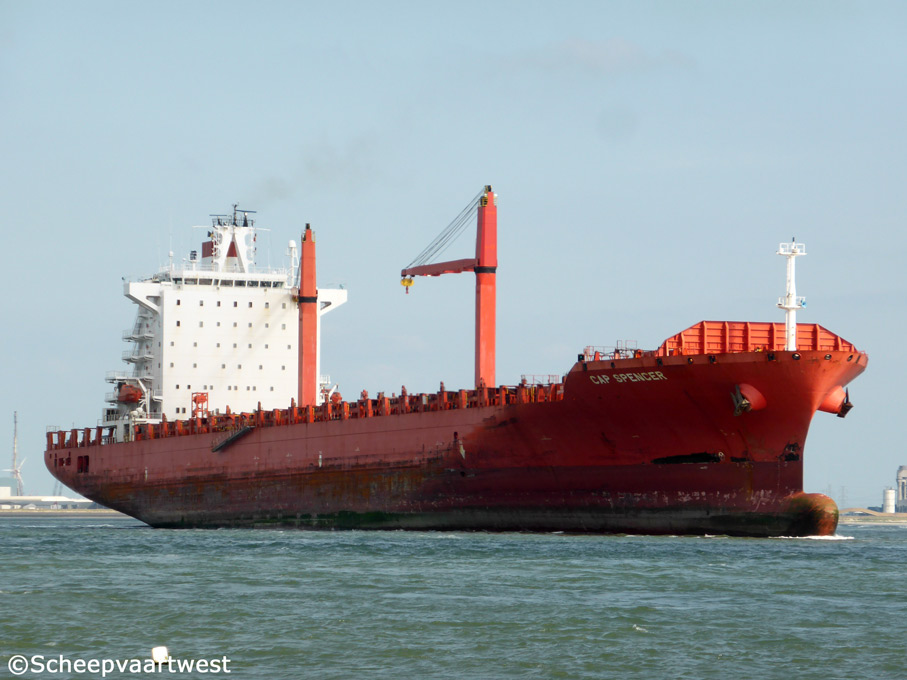

Cap Spencer 03

Westerschelde 09 September 2015

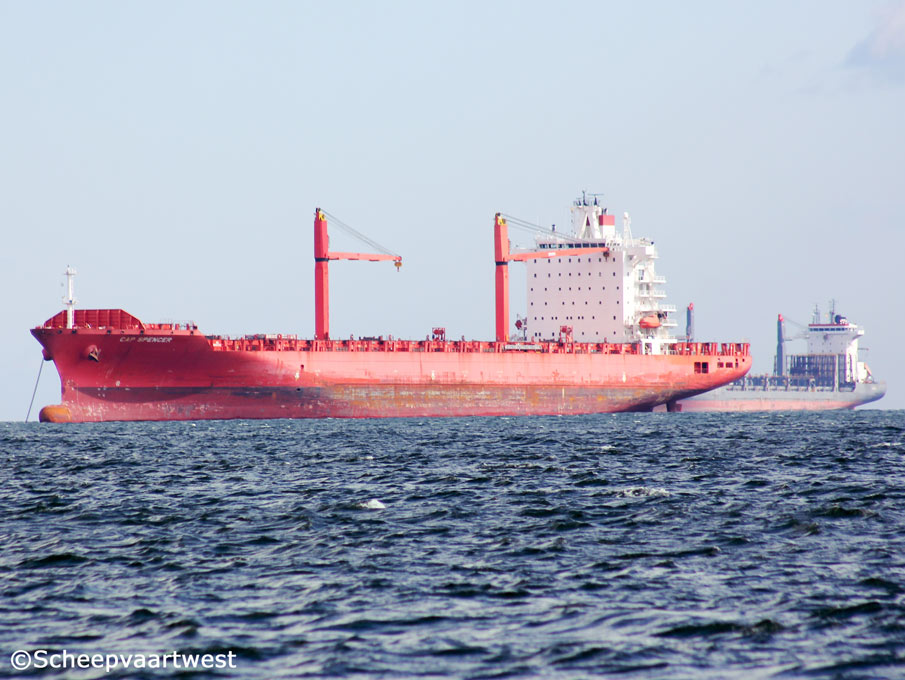

Cap Spencer 02
Malaga - Spain 21/02/15



Name

CAP SPENCER

Previous names

2001 - 09.2012 Cap San Augustin

Type

Cellular containership

IMO-number

9215696

Call sign

ELZO4

Flag

Liberia

Port of registry

Monrovia

GT

40.085 t

DWT

Summer: 51.087 t

NT

24.319 t

Number of 20ft containers

3.799

Container capacity 14t

2.800

Reefer capacity

800

Length

257,37 m overall

245,59 m registered

Breadth

32,20 m registered

Draught

12,50 m

Depth

16,83 m

Speed

22,0 knots

Built

2001

Keel laid

26.03.2001

Launch date

06.06.2001

Date of completion

14.08.2001

Builder

Samsung Heavy Industries Co., Ltd. Geoje Shipyard
530, Jangpyeong-ri, Sinhyeon-eup
Geoje, Kyongsang-namdo
Republic of Korea

Yard number

1332

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

10

Continuous decks

2

Main engine

1x Sulzer-Doosan 7RTA84C - 2 stroke 7 cylinder 840 x 2.400 mm diesel engine - 28.350 kW at 102,0 rpm

Transmission: Main propulsion acts directly on the propellershaft

Starter type: Compressed air direct

Year of manufacture: 2001

Manufacturer: HSD Engine Co., Ltd.
69 Sinchon-dong
Changwon, Kyungnam 641-370
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 102,0 rpm

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 75,0 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 469,0 m²

Year of manufacture: 2000

Manufacturer: Parat Anders Halvorsen AS
Tjoersvaagstrand 27
4401 Flekkefjord
Norway

Electric installations

4x Plants each 440/220 V - 2.250 kVA

1x Plant 440 V - 188 kVA

12x Plants each 24 V - 200 Ah

2x Plants each 24 V - 400 Ah

Generators

4x MAN-B&W 9L28/32H main diesel generatorsets each 2.250 kVA / 1.800 kW

Emergency generator

1x Diesel generatorset 188 kVA

Compressed air receivers

2x Receivers each 6.900 litres - 31,0 bar

1x Receiver 300 litres - 9,0 bar

1x Receiver 100 litres - 7,7 bar

Bow thruster

1x Transverse thruster NAKASHIMA - 1.300 kW, forward

Tank capacities

Fuel oil: 6.248 m³

Ballast water: 14.146 m³

Anchor equipment

3x Anchors weight each 11.700 kg

Chain length: 687,50 m

Cargo gear

2x Cranes - SWL 45,0 t each

Crew

22

Manager

Bernhard Schulte Shipmanagement (Hong Kong) Ltd.
2602, K Wah Centre 191, Java Road North Point
Hong Kong
Hong Kong Special Administration Region of P.R. China

Registered owner

Sugarloaf Key Ltd.
80, Broad Street
1000 Monrovia
Republic of Liberia

Latest data adjustment

02 April 2015
