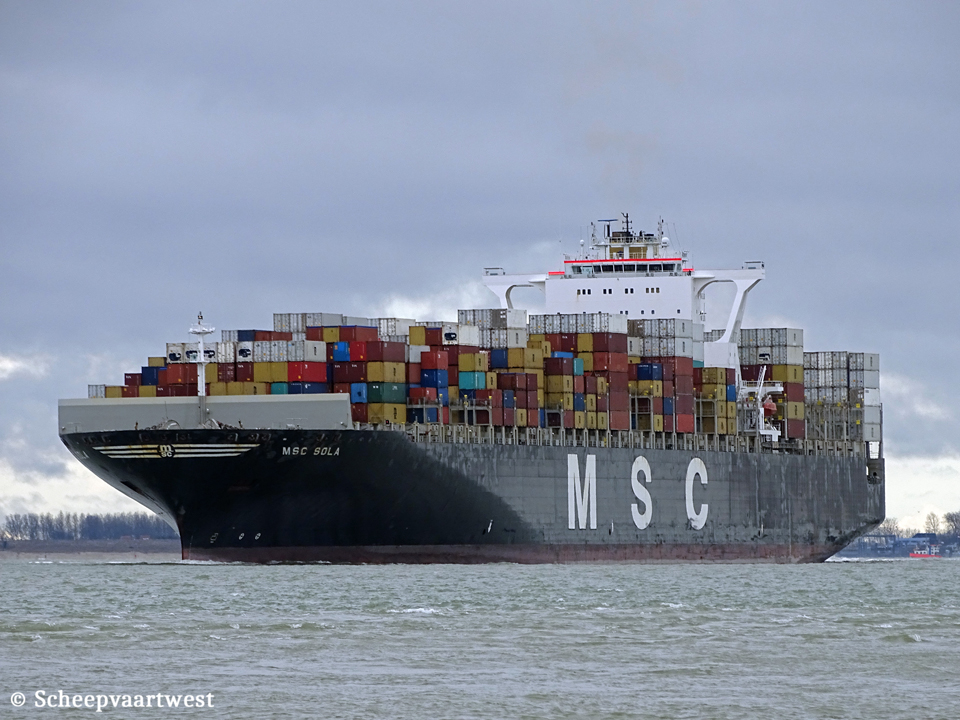

Westerschelde 28 February 2017 |
 |
|

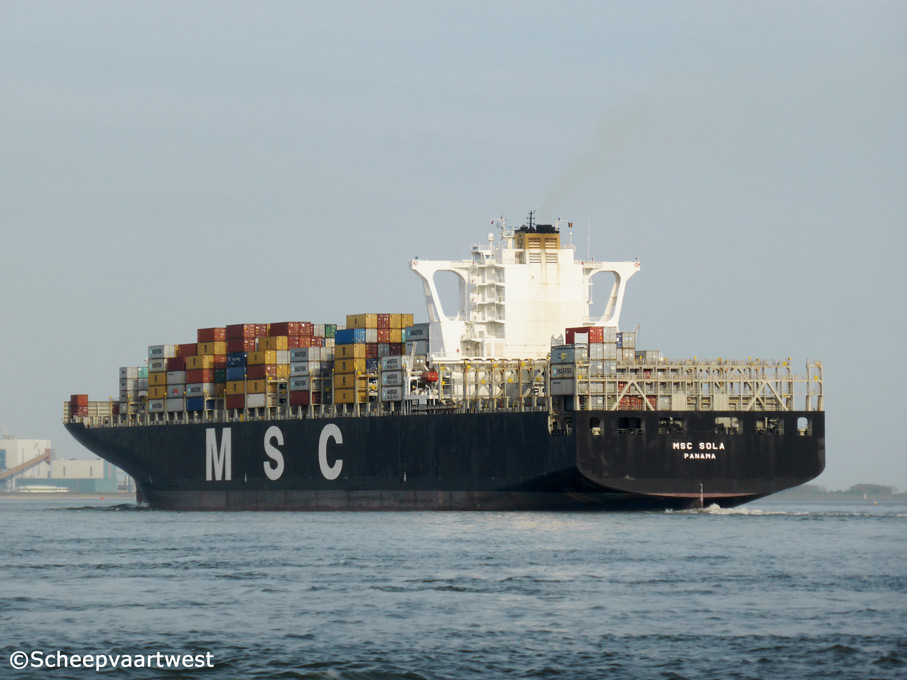

| Westerschelde 10/05/15 | |
|
Name |
MSC SOLA |
|
Type |
Cellular containership |
|
IMO-number |
9401104 |
|
Call sign |
3FER7 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
131.771 t |
|
DWT |
Summer: 138.377 t |
|
NT |
64.192 t |
|
Number of 20ft containers |
11.300 |
|
Container capacity 14t |
8.100 |
|
Reefer capacity |
700 |
|
Length |
363,58 m overall 351,31 m registered |
|
Breadth |
45,60 m registered |
|
Draught |
16,00 m |
|
Depth |
29,74m moulded |
|
Speed |
24,8 knots |
|
Built |
2008 |
|
Keel laid |
25/06/2008 |
|
Launch date |
13/09/2008 |
|
Date of completion |
19/11/2008 |
|
Builder |
Hyundai Samho Heavy Industries Co., Ltd. 93, Daebul-ro, Samho-eup Yeongam-gun Jeollanam-do Republic of Korea |
|
Yard number |
S343 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
11 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 12K98ME - 2 stroke 12 cylinder combustion engine 68.640 kW at 94,0 rpm Reduced power: 44.616 kW Year of manufacture: 2008 Manufacturer: Hyundai Engine & Machinery Co., Ltd. Ulsan Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 94,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 7,85 bar Heating surface: 66,0 m² 1x Steam boiler, exhaust gas heated - 7,85 bar Heating surface: 1.126,0 m² Year of manufacture: 2008 Manufacturer: KangRim Heavy Industries Co., Ltd. 40, Wongnam-dong Changwon Republic of Korea |
|
Electric installations |
5x Plants each 6.600 V - 3.333,3 kVA 1x Plant 450 V - 625 kVA 6x Plants each 12 V - 24 Ah 2x Plants each 12 V - 92 Ah 4x Plants each 12 V - 215 Ah 1x Plant 24 V - 12 Ah 12x Plants each 24 V - 200 Ah 12x Plants each 24 V - 500 Ah 9x Plants each 110 V - 80 Ah |
|
Generators |
5x Main diesel generatorsets each 3.333,3 kVA |
|
Emergency generator |
1x Diesel generatorset 625 kVA |
|
Batteries |
12x Batteries for other purpose each 500 Ah 4x Batteries for start emergency engine each 215 Ah 12x Batteries for UPS radio each 200 Ah 2x Batteries for automation each 92 Ah 9x Batteries for other purpose each 40 Ah 9x Batteries for other purpose each 40 Ah 6x Batteries for automation each 24 Ah 1x Battery for diesel control 12 Ah |
|
Compressed air receivers |
2x Receivers each 20.000 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 2.000 litres - 7,8 bar 1x Receiver 300 litres - 7,0 bar |
|
Bow thruster |
2x Transverse thruster each 2.000 kW, forward |
|
Anchor equipment |
3x Anchors weight each 23.000 kg Chain length: 770.00 m Diameter: 117 mm |
|
Cargo gear |
Gearless |
|
Crew size |
31 |
|
Manager |
MSC Mediterranean Shipping Company S.r.l. Via Francesco Ciampa, 29 80063 Piano di Sorrento , Naples Italy |
|
Operator |
MSC - Mediterranean Shipping Company S.A |
|
Registered owner |
Danges Sun Trading Inc. Calle 50, Edificio Universal 50 No. 102, Planta Baja, Local 6 Panama City Republic of Panama |
|
Latest data adjustment |
08 November 2024 |
