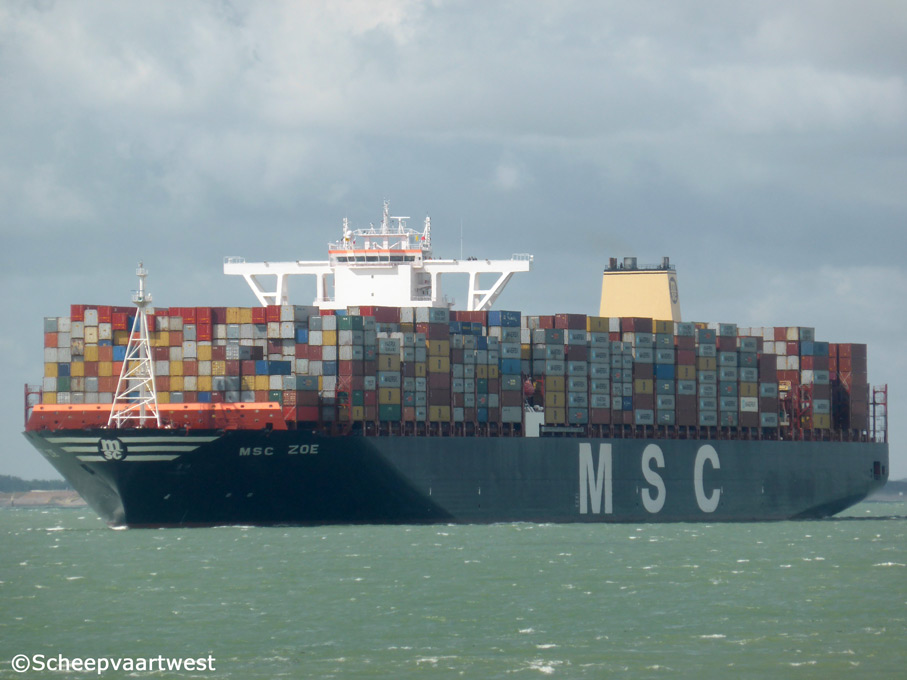

MSC Zoe 01

Westerschelde 29 July 2015

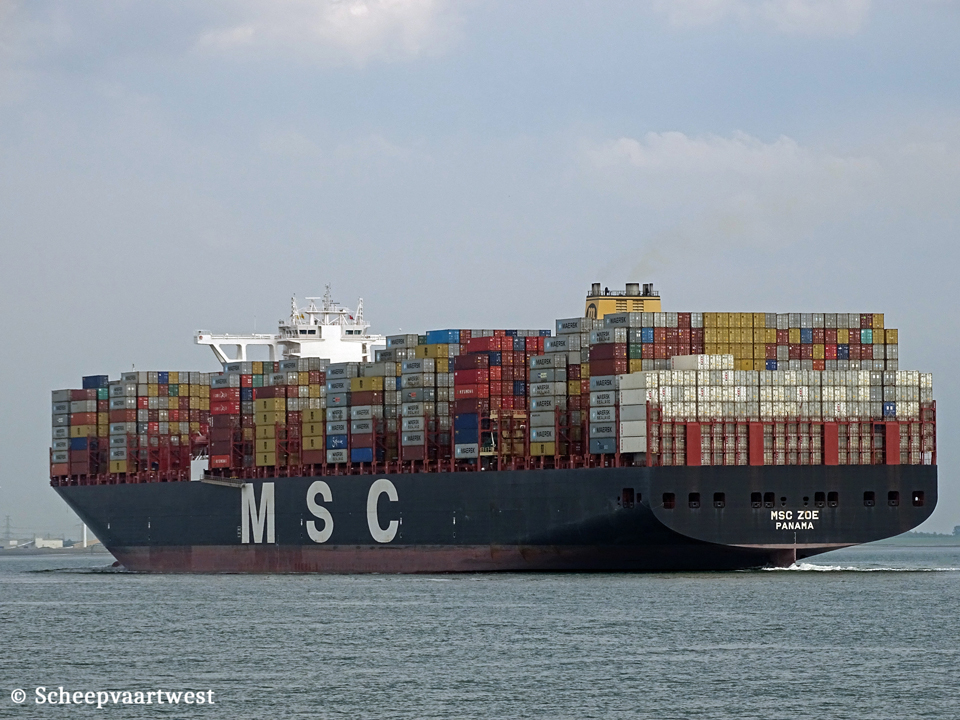

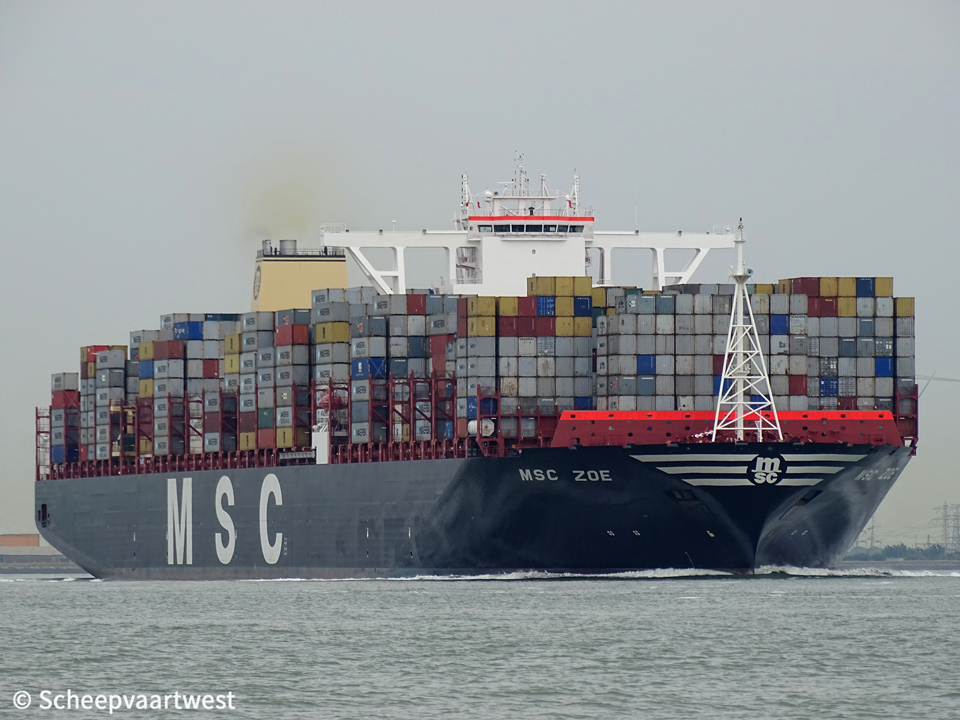

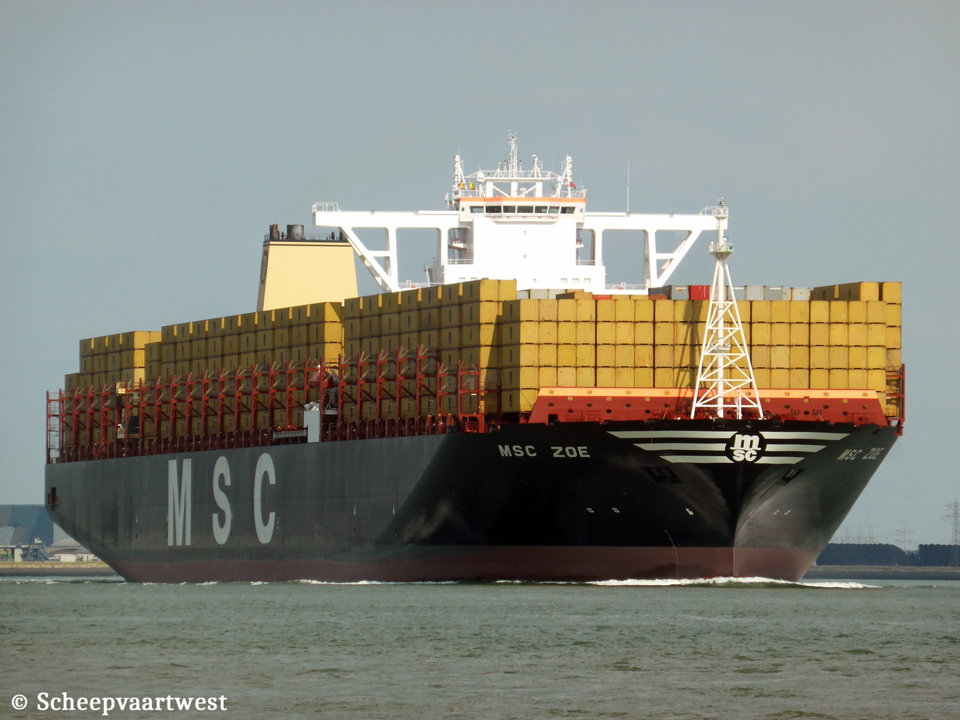

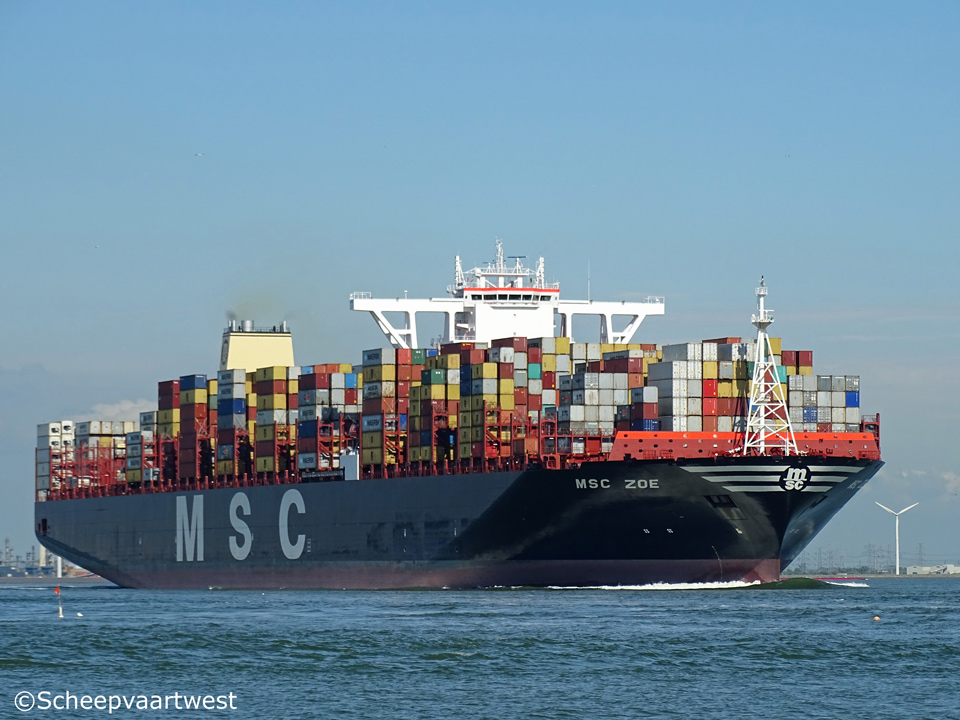

MSC Zoe 02   MSC Zoe 03   MSC Zoe IMO 9703318 05   MSC Zoe IMO 9703318 06
Westerschelde 24/06/16 Westerschelde 07/07/16   Westerschelde 31/07/15   Westerschelde 16/08/17


Name

MSC ZOE

Type

Cellular containership

IMO-number

9703318

Call sign

3FQA

Flag

Republic of Panama

Port of registry

Panama City

GT

192.237

DWT

Summer: 199.272 t

NT

111.423 t

Number of 20ft containers

On deck: 11.258

In hold: 7.966

Total: 19.224

Contaier capacity 14t

13.500

Reefer capacity

1.800

Length

395,46 m overall

379,40 m between perpendiculars

Breadth

59,08 m extreme

Draught

16,00 m

Depth

30,30 m moulded

Deckhouse

6,40 m

Bridge

372,02 m

Freeboard

6.479 mm

Speed

Service: 19,0 knots

Max: 22,8 knots

Built

2015

Keel laid

26/12/2014

Launch date

11/04/2015

Delivery date

24/06/2015

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd., Okpo Shipyard

Geoje

South Korea

Yard number

4279

Hull material

Steel

Bulkheads

13

Number of decks

2x Upper deck / 2nd deck

Main engine

1x MAN-B&W/Hyundai 11S90ME-C10 - 2 stroke single acting 11 cylinder 900 x 3.260 mm combustion engine - 62.500 kW / 84.975 hp hp at 82,2 rpm

manufacturer: Hyundai Heavy Industries Co., Ltd. - South Korea

Propellers

1x Fixed pitch single five-blade propeller - aft at 82,2 rpm

Diameter: 10,50 m

Boilers

Auxiliary boiler, oil/gas fired

3x Auxiliary boiler, exhaust gas heated

Generators

2x MAN-B&W 8L32/40 - 4 stroke 8 cylinder 320 x 400 mm combustion engine each 4.000 kW connected with 2 generators each 3.900 ekW

2x MAN-B&W 9L32/40 - 4 stroke 9 cylinder 320 x 400 mm combustion engine each 4.500 kW connected with 2 generators each 4.000 ekW

Emergency generator

1x MAN D2842LE201 diesel generatorset

Bow thruster

2x Tunnel thruster each 2.500 kW / 3.399 bhp, forward

Number of holds

11

Tank capacities

Ballast: 33.572,2 m³

Anchor equipment

Length: 770,00 m

Diameter: 132 mm

Gear

Gearless

Crew size

32

Manager

MSC - Mediterranean Shipping Company S.r.l.

40. Avenue Eugène-Pittard

CH-1206 Geneva

Switzerland

Operator

MSC - Mediterranean Shipping Company S.A

Register owner

Xiangxing International Ship Lease Co., Limited

Latest data adjustment

01 April 2024
