Westerschelde 06 April 2016 |
 |
 |
 |
||
| Westerschelde 12/11/15 | Westerschelde 12/11/15 | Westerschelde 13/07/16 | ||
|
Name |

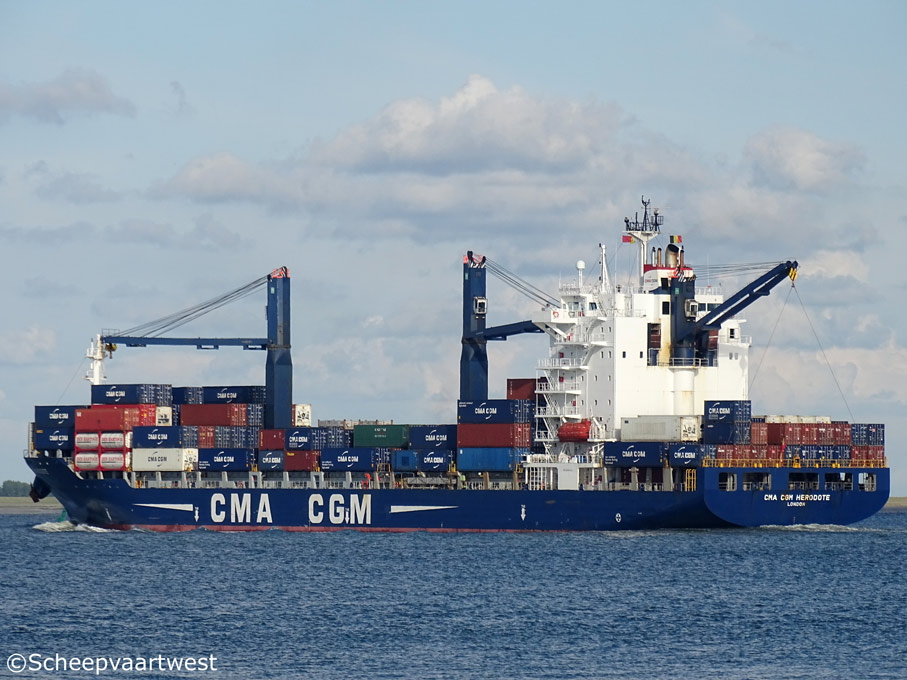

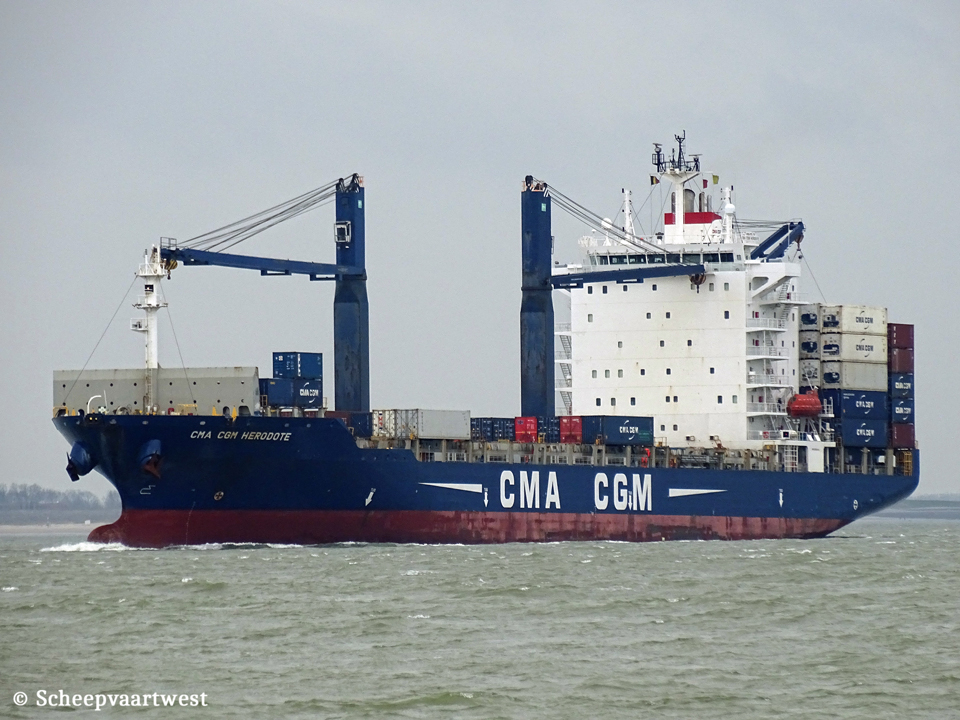

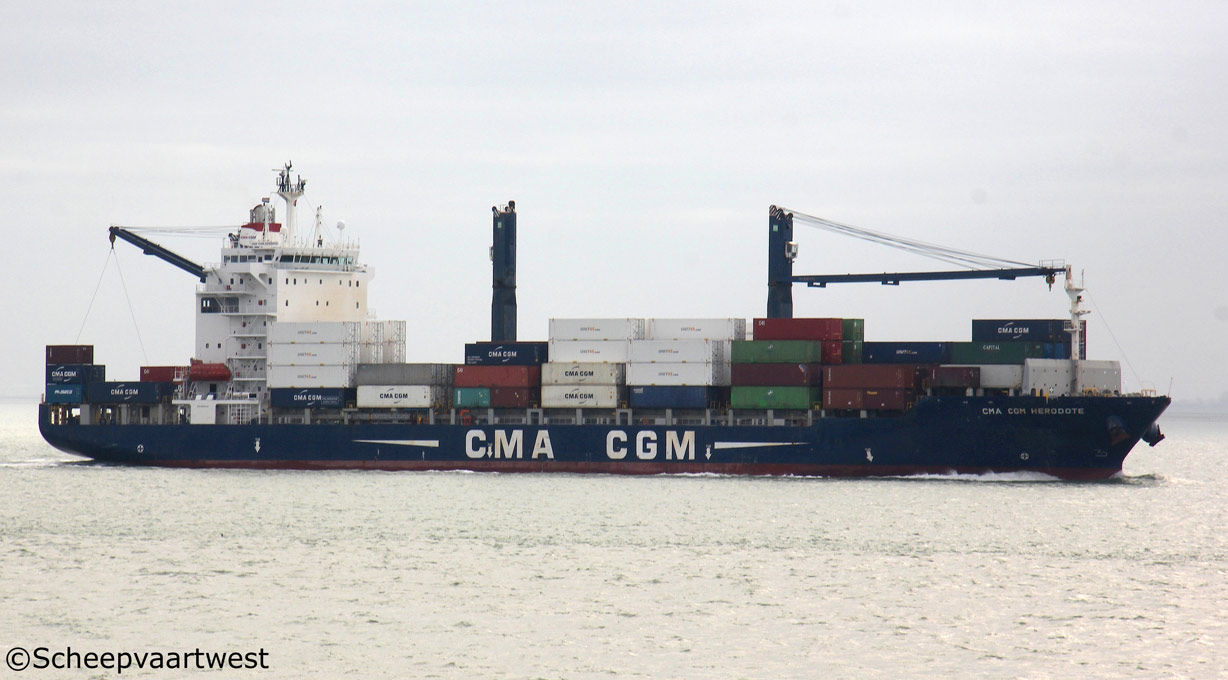

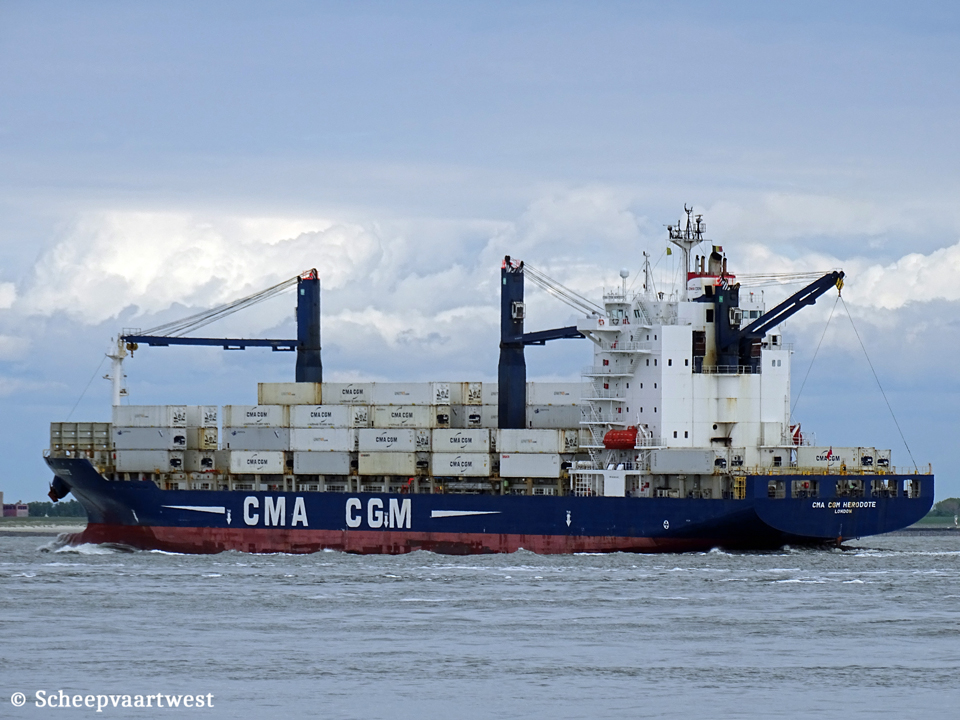

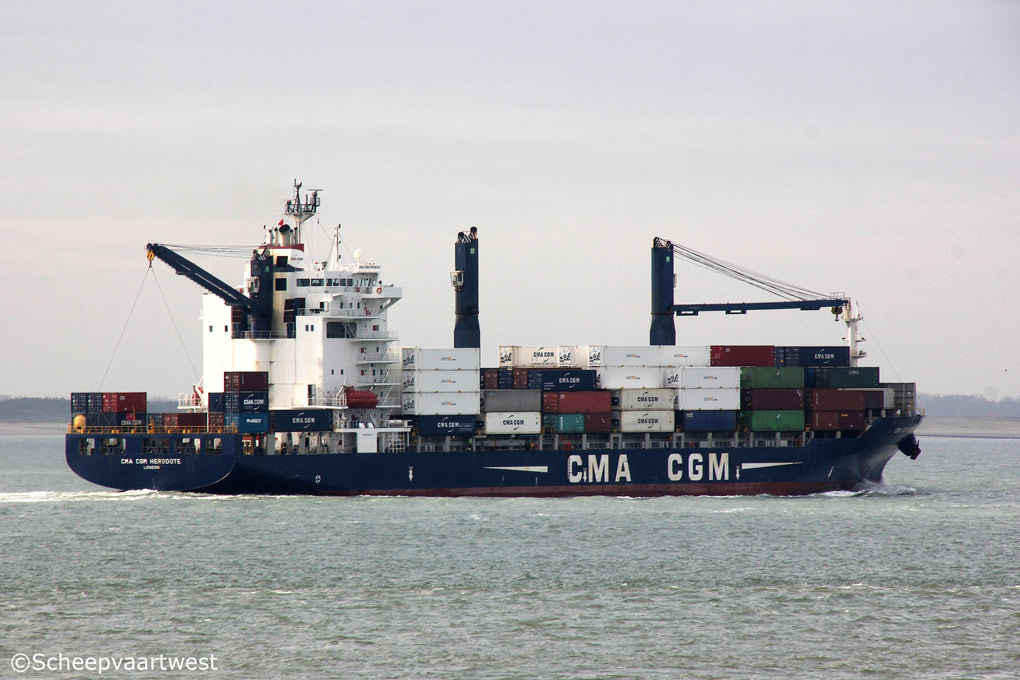

CMA CGM HERODOTE |
|
Type |
Cellular containership |
|
IMO-number |
9360142 |
|
Call sign |
KGMQ |
|
Flag |
United States of America |
|
Port of registry |
Wilmington, DE |
|
Previous flags |
2007 - 2019 United Kingdom, London - Call sign: MFEP 2019 - 2021 Malta, Valletta - Call sign: 9HA4983 |
|
GT |
17.594 t |
|
DWT |
Summer: 21.257 |
|
NT |
7.181 t |
|
Number of 20ft containers |
1.713 |
|
Container capacity 14t |
1.149 |
|
Reefer capacity |
402 |
|
Length |
170,06 m overall 154,60 m between perpendiculars |
|
Breadth |
27,22 m extreme |
|
Draught |
9,36 m |
|
Freeboard |
4.676 mm |
|
Depth |
14,00 m |
|
Speed |
Max.: 21,0 knots Service: 19,4 knots |
|
Built |
2007 |
|
Keel laid |
02/10/2006 |
|
Launch date |
19/01/2007 |
|
Date of completion |
14/02/2007 |
|
Builder |
Hyundai Heavy Industries Co. Ltd. Ulsan South Korea |
|
Yard number |
1870 |
|
Hull material |
Steel |
|
Watertight compartments |
11 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 7S60MC-C - 2 stroke 7 cylinder 600 x 2.400 mm combustion engine 15.820 kW / 21.495 hp at 105,0 rpm Built: 2006 Builder: Hyundai Heavy Ind. Co., Ltd. - Engine & Mach. Div., Ulsan - South Korea |
|
Propellers |
1x Mono-block propeller solid - aft at 105,0 rpm |
|
Boilers |
1x Auxiliary boiler, composite Aalborg 364,00 m² - 10,0 bar |
|
Electric installations |
Power voltage: 450 V Lighting voltage: 220 V Frequency: 60 Hz |
|
Generators |
3x Hyundai 8H21/32 main diesel generatorsets each 1.875 kVA - 1.500 kW - 2.174 hp |
|
Emergency generator |
1x Stamford UCM274FI diesel generatorset 156 kVA - 125 kW - 190 hp |
|
Bow thruster |
1x 800 kW, forward 1x 800 kW, stern |
|
Number of holds |
6 |
|
Cargo hatchways |
8 6x 12,60 x 23,10 m 1x 12,60 x 17,90 m 1x 12,60 x 7,80 m |
|
Tank capacities |
Fuel oil: 2.832,1 m³ Ballast: 6.851,6 m³ |
|
Anchor equipment |
Length: 632,50 m Diameter: 68 mm |
|
Cargo gear |
2x Cranes - SWL 45,0 t each 1x Cranes - SWL 25,0 t |
|
Crew size |
36 |
|
Manager |
CMA CGM - Compagnie Maritime D'Affrètement - Compagnie Générale Maritime 4 Quai d'Arenc Marseille France |
|
Operator |
CMA CGM - Compagnie Maritime D'Affrètement - Compagnie Générale Maritime |
|
Owner |
Provence Shipowner 2007 - 1 Ltd. |
|
Renamed |
2023 APL Islander United States of America, Wilmington, DE - Call sign: KGMQ Owner: APL Islander Trust Manager: APL Maritime Ltd. |
|
Latest data adjustment |
18 February 2024 |
