Westerschelde 07 September 2015 |
 |
 |
 |
||
| Westerschelde 07/09/15 | Westerschelde 23/02/16 | Westerschelde 01/12/15 | ||
|
Name |

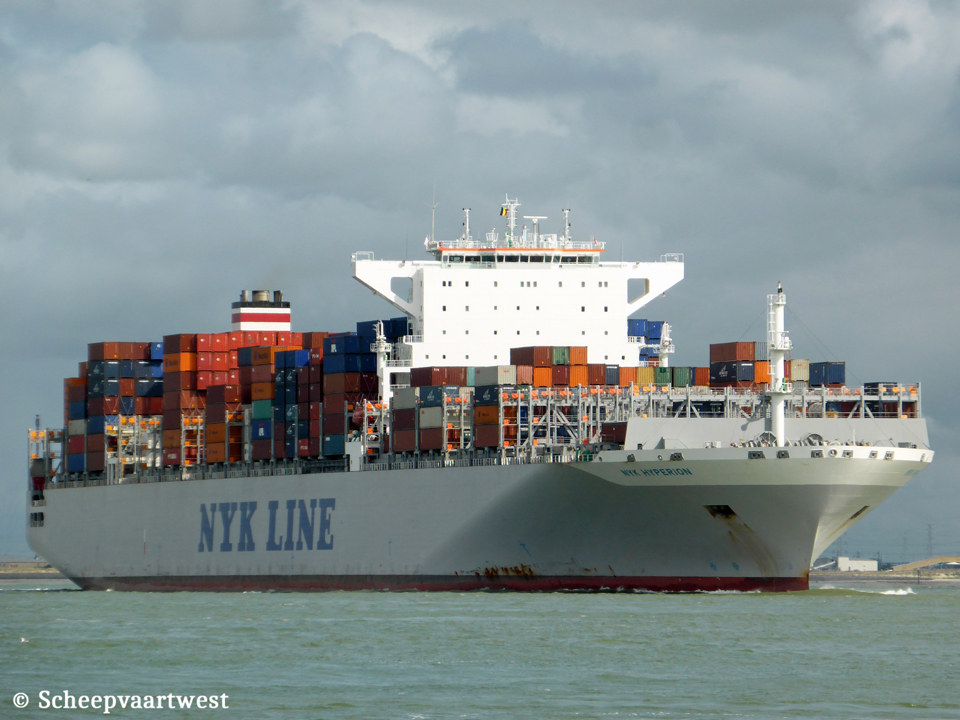

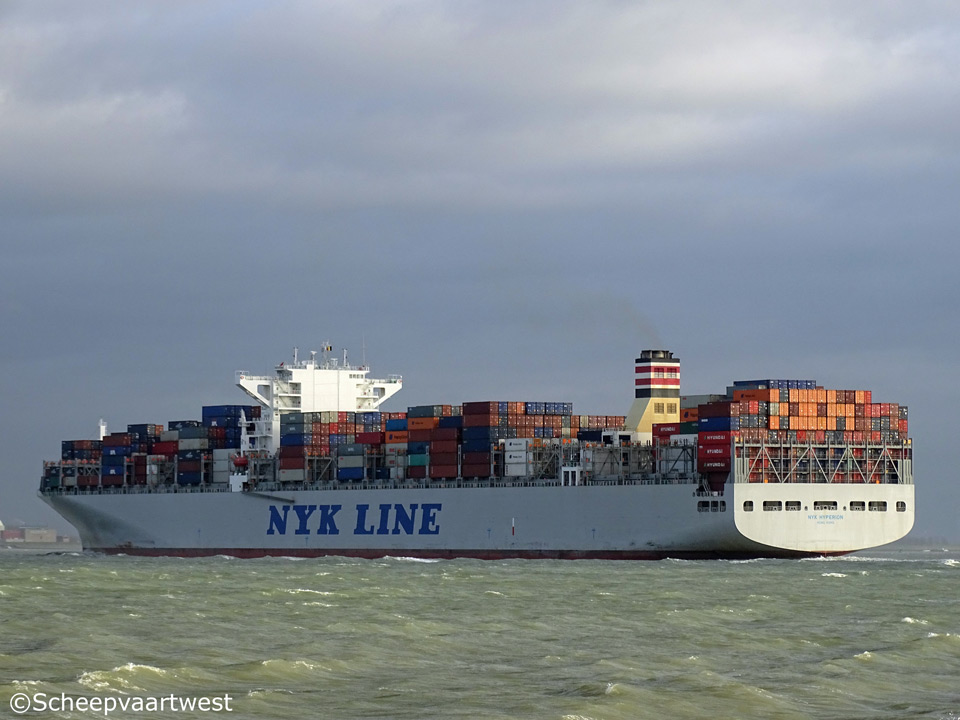

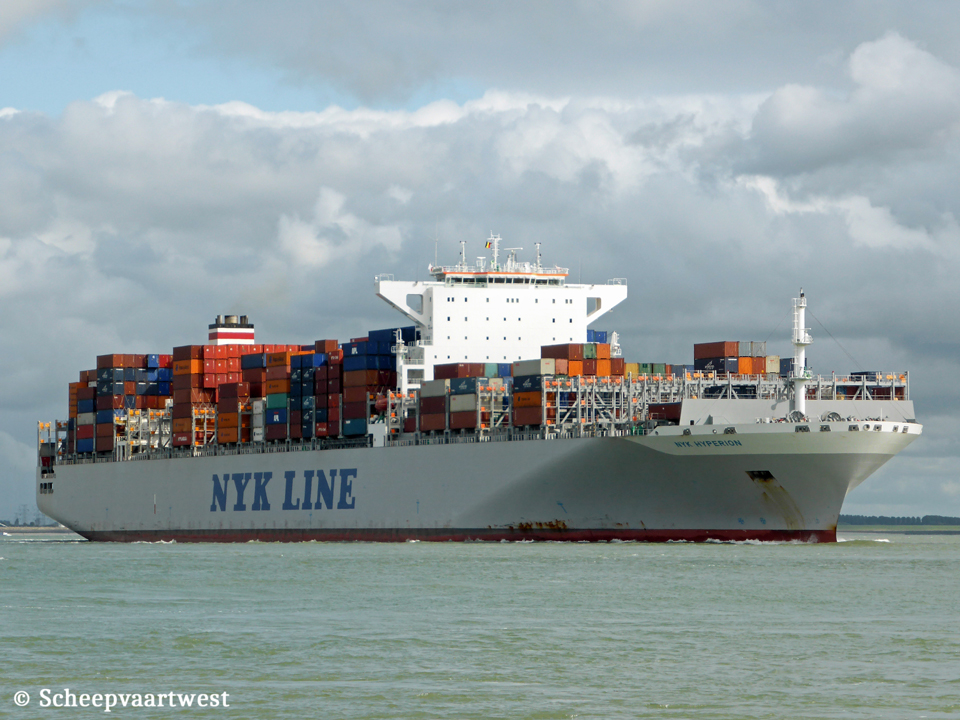

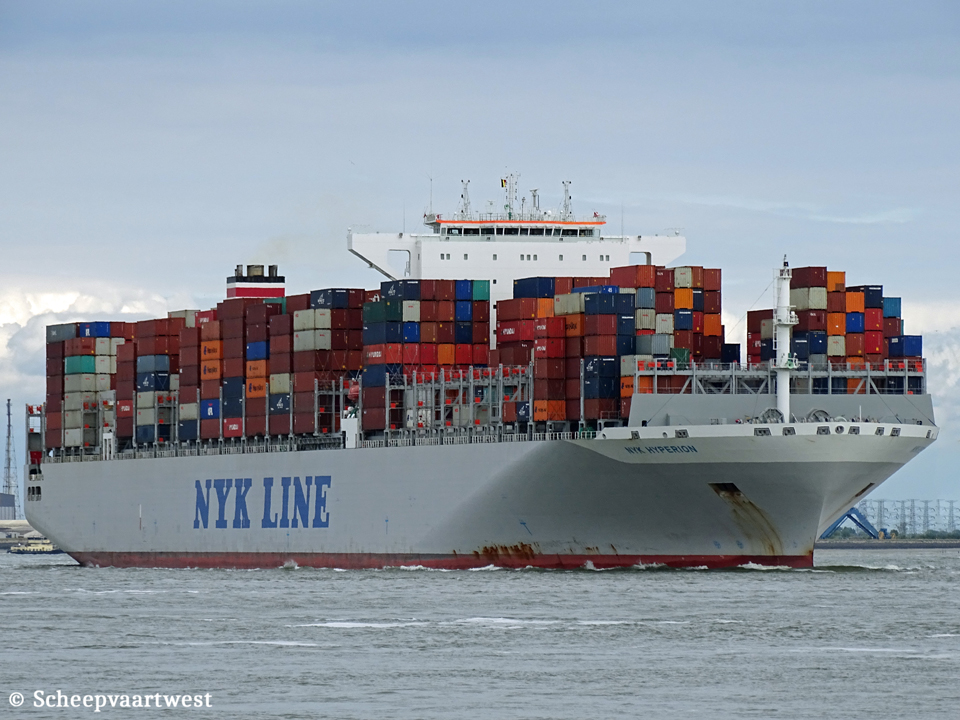

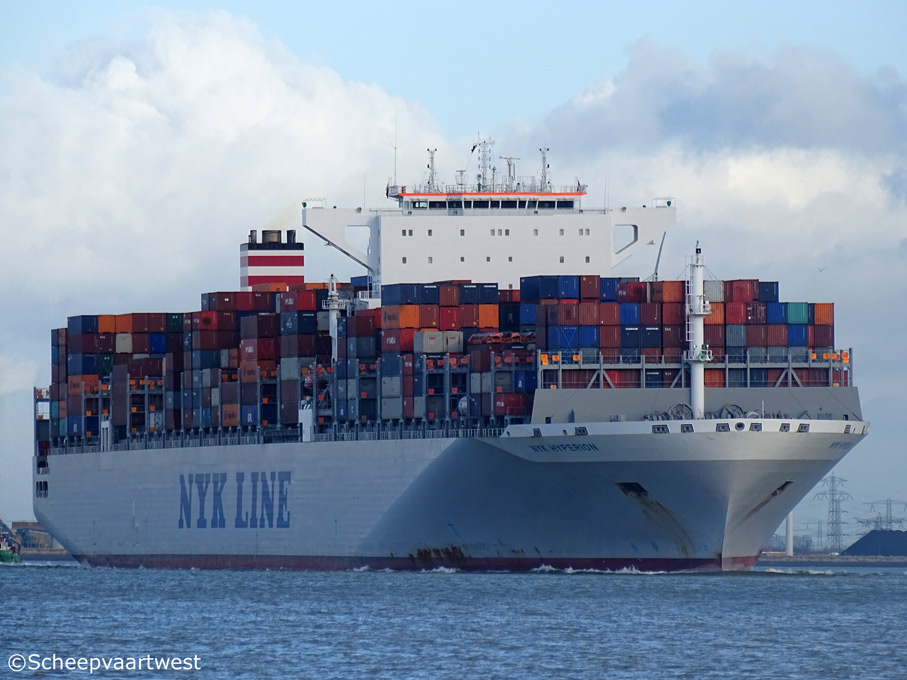

NYK HYPERION |
|
Type |
Cellular containership - Carriage of dangerous goods |
|
IMO-number |
9627980 |
|
Call sign |
VRME7 |
|
Flag |
Hong Kong - Special Administrative Region of the People's Republic of China |
|
Port of registry |
Hong Kong |
|
GT |
141.003 t registered |
|
DWT |
Summer: 144.162,3 t |
|
NT |
69.987 t registered Panama: 144.368 t |
|
Displacement |
Summer: 186.922,2 t |
|
Light weight |
42.759 t |
|
Number of 20ft containers |
13.208 |
|
Container capacity 14t |
9.080 |
|
Reefer capacity |
1.150 |
|
Length |
366,47 m overall 350,00 m between perpendiculars |
|
Breadth |
48,20 m moulded |
|
Draught |
Summer: 15,52 m |
|
Freeboard |
7.424 mm |
|
Depth |
29,80 m moulded |
|
Speed |
Max.: 23,0 knots |
|
Built |
2013 |
|
Keel laid |
01/04/2013 |
|
Launch date |
15/06/2013 |
|
Delivery date |
16/10/2013 |
|
Builder |
Samsung Heavy Industries Co., Ltd. 80 Jangpyeong 3-Ro, Geoje-Si Gyeongsangnam-Do, 53261 South Korea |
|
Yard number |
2009 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Watertight bulkheads |
11 |
|
Main engine |
1x MAN-B&W 12S90ME-C9.2 - 12 cylinder 900 x 3.260 mm combustion engine 54.200 kW / 73.691 hp at 77,2 rpm Manufacturer: HHI Engine & Machinery Div. |
|
Propellers |
1x Manufacturer: Nakashima Propeller Co., Ltd. |
|
Boilers |
1x Exhaust gas boiler 1x Fired boiler Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Shaft generator |
1x 3.300 kW |
|
Generators |
4x Main diesel generatorsets each 3.650 kW Manufacturer: Nishishiba Electric Co., Ltd. |
|
Bow thruster |
3.000 kW |
|
Number of holds |
7 |
|
Number of tanks |
Ballast: 23 Lubricating oil: 16 Fuel oil: 12 Waste water: 7 Diesel oil: 6 Sludge: 5 Chain: 2 Fresh water: 2 Potable water: 2 |
|
Tank capacities 100% |
Diesel oil: 614,8 m³ Freshwater: 870,5 m³ Fuel oil: 10.763 m³ Lube oil: 599,6 m³ Tank ballast: 44.300,2 m³ |
|
Lifting equipment |
1x Deck crane, monorail crane - SWL 13,0 t 2x Engine room crane - SWL 12,5 t each 2x Provision crane - SWL 4,0 t each Manufacture: Oriental Prec & Eng'g Co. |
|
Cargo gear |
Gearless |
|
Manager |
Newcontainer NO.70 (Marshall Islands) Shipping Inc. 33/F, Harbour Centre 25 Harbour Road Wanchai Hong Kong |
|
Operator |
NYK Line |
|
Registered owner |
Newcontainer NO.70 (Marshall Islands) Shipping Inc. |
|
Renamed |
2016 OOCL Malaysia Hong Kong - China - Call sign: VRME7 Manager: Orient Overseas Container Line Reg. owner: FPG Shipholding Panama 36 S.A. |
|
Latest data adjustment |
07 July 2023 |
