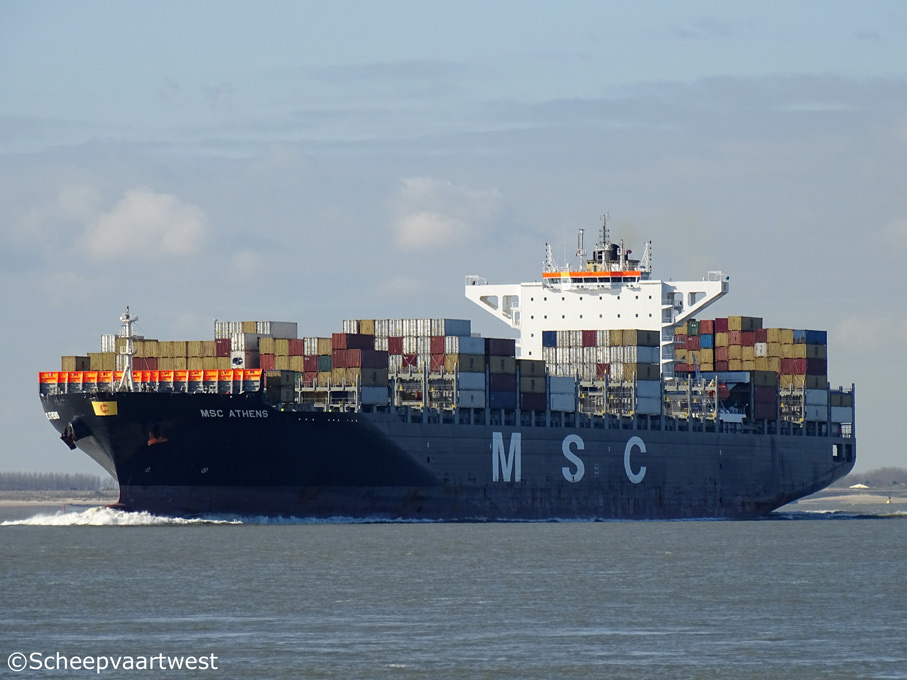

MSC Athens 01

Westerschelde 29 February 2016

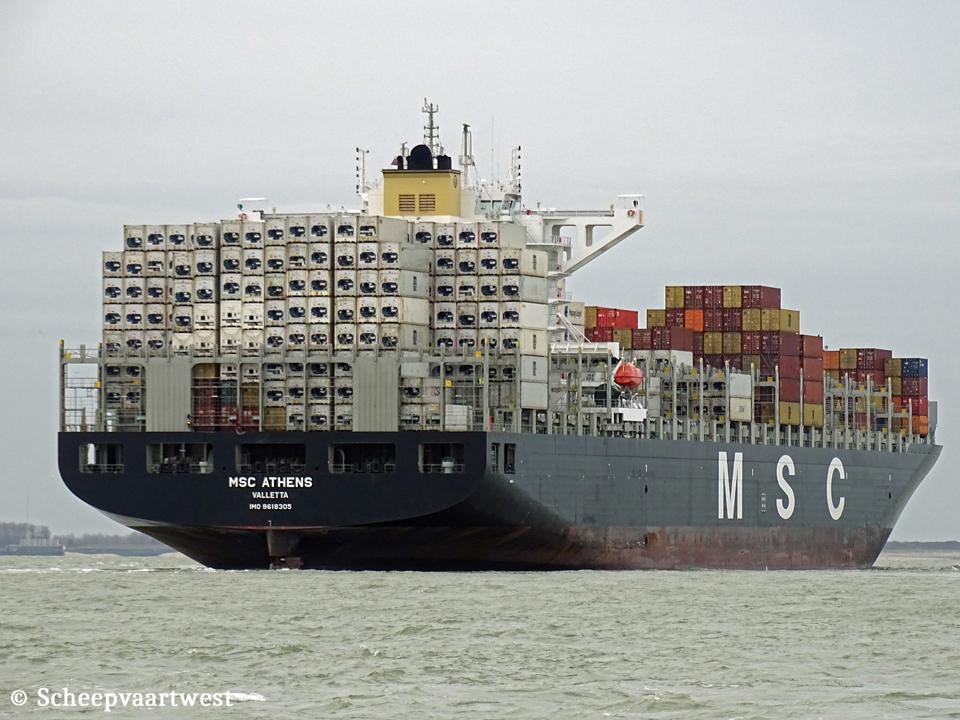

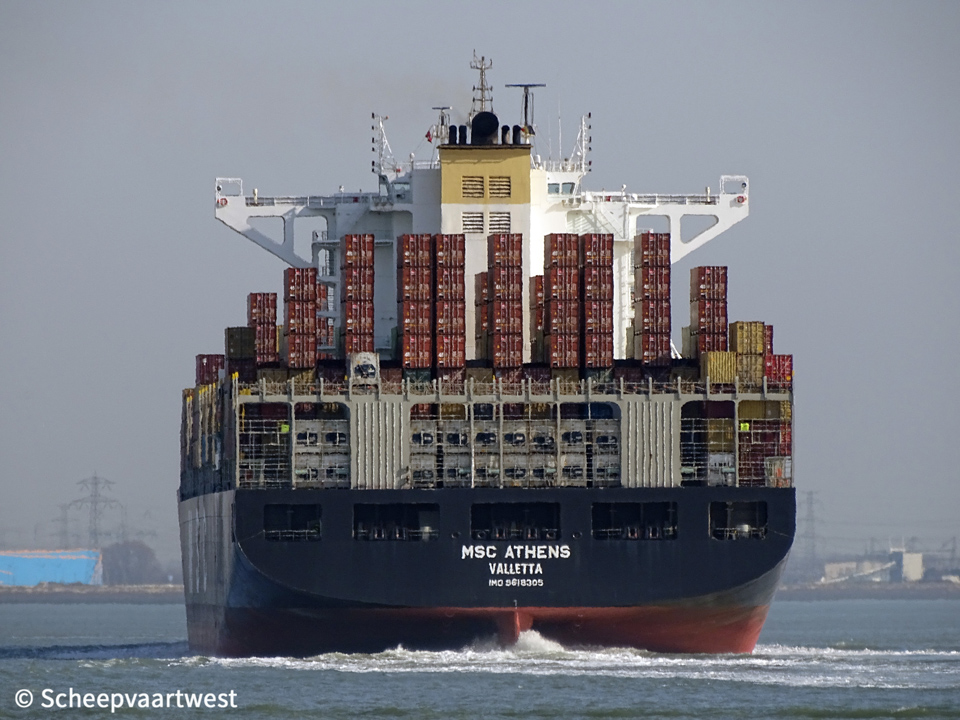

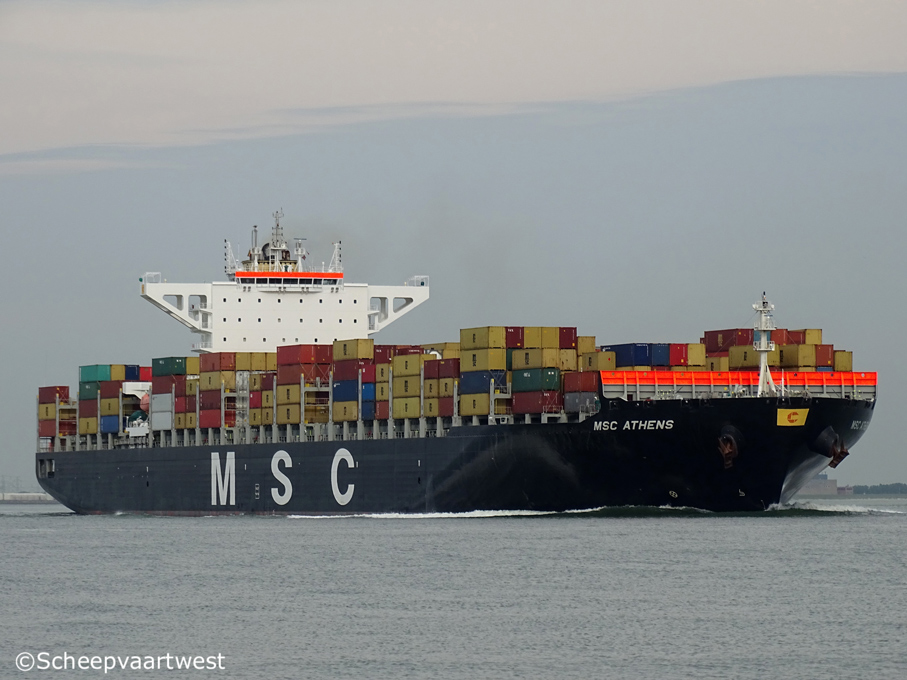

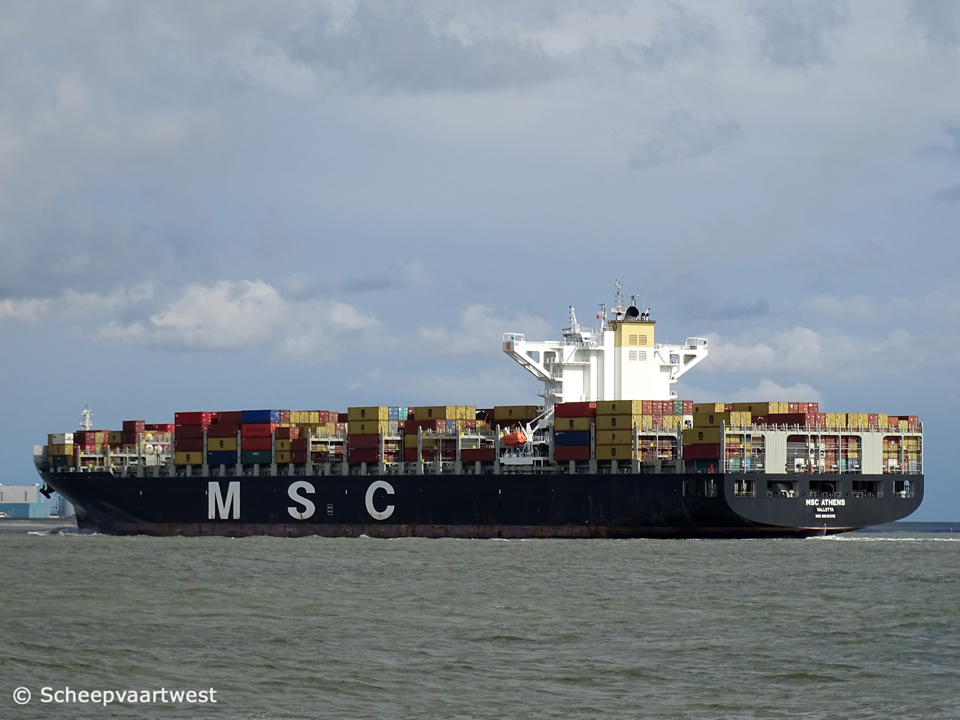

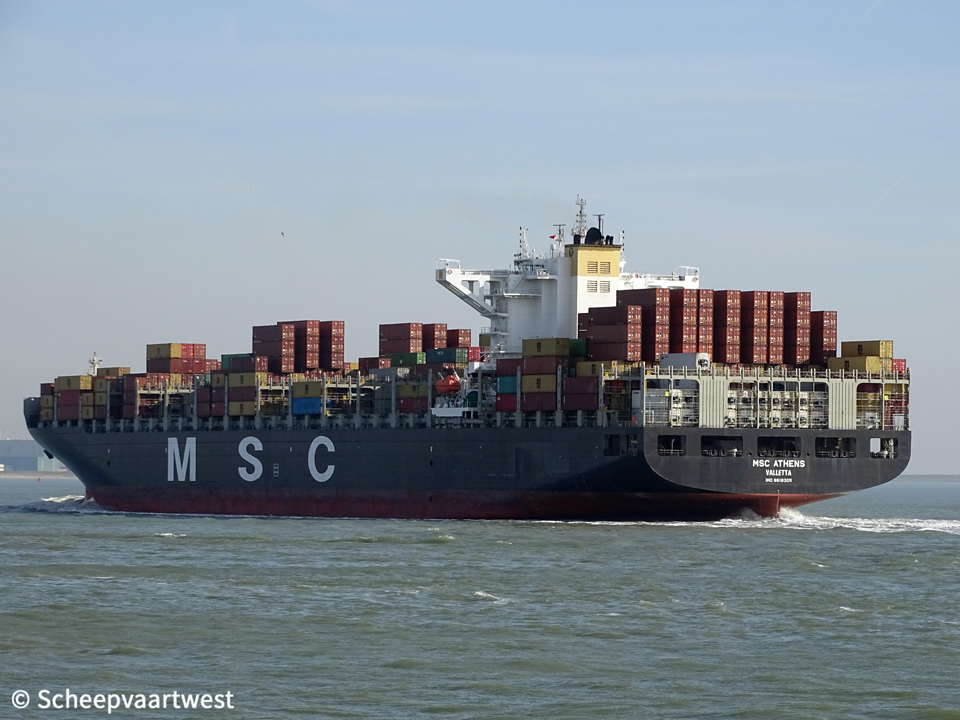

MSC Athens 02   MSC Athens 03   MSC Athens 04   MSC Athens 05   MSC Athens IMO 9618305 06   MSC Athens IMO 9618305 07
Westerschelde 07/06/16 Westerschelde 17/02/19 Westerschelde 17/02/19 Westerschelde 17/02/19   Westerschelde 16/04/16   Westerschelde 03/01/16


Name

MSC ATHENS

Type

Cellular containership

IMO-number

9618305

Call sign

5LKV5

Flag

Liberia

Port of registry

Monrovia

Previous flags

2013 - 2015 Greece, Piraeus - Call sign: SVBR7

2015 - 2023 Malta, Valletta - Call sign: 9HA4025

GT

95.390 t

DWT

Summer: 110.852,8 t

NT

56.260 t

Number of 20ft containers

8.827

Reefer capacity

1.462

Length

300,01 m overall

288,50 m between perpendiculars

Breadth

48,33 m extreme

48,19 m moulded

Draught

14,50 m

Depth

24,60 m

Speed

Max.: 22,0 knots

Built

2013

Keel laid

24/05/2012

Launch date

07/12/2012

Date of completion

14/03/2013

Builder

Sungdong Shipbuilding & Marine Engineering Co., Ltd.
940, Gongdan-ro, Gwangdo-myeon

Tongyeong-si

Republic of Korea

Yard number

S4010

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Partly double bottom

Watertight bulkheads

9

Continuous decks

2

Main engine

1x MAN-B&W/HHI 9S90ME-C8.2 - 2 stroke 9 cylinder 900 x 3.188 mm combustion engine 47.430 kW at 78,0 rpm

Year of manufacture: 2013

Manufacturer: Hyundai Heavy Industries Co., Ltd. Engine & Machinery Division

1000 Bangeojinsunhwan-doro Dong-gu

Ulsan

Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 78,0 rpm

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 47,1 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 392,0 m²

Year of manufacture: 2013

Manufacturer: Alfa Laval Aalborg A/S

Gasvaerksvej 24

9100 Aalborg

Kingdom of Denmark

Electric installations

2x Plants each 6.600 V - 5.146,7 kVA

2x Plants each 6600 V - 5.800 kVA

1x Plant 450 V - 625 kVA

1x Plant 7 V - 3 Ah

1x Plant 12 V - 2 Ah

1x Plant 12 V - 9 Ah

1x Plant 12 V - 17 Ah

2x Plants each 12 V - 20 Ah

1x Plant 12 V - 40 Ah

1x Plant 12 V - 100 Ah

1x Plant 24 V - 12 Ah

1x Plant 24 V - 65 Ah

1x Plant 24 V - 200 Ah

2x Plants each 24 V - 200 Ah

1x Plant 24 V 300 Ah

Generators

2x MAN-B&W 9L32/40 main diesel generatorsets each 5.800 kV / 4.640 kW

2x MAN-B&W 8L32/40 main diesel generatorsets each 5.146,7 kVA / 4.117 kW

Emergency + harbour gen.

1x MAN D2842LE201 diesel generatorset 625 kVA

Batteries

1x Battery for UPS navigation 300 Ah

1x Battery for UPS radio 200 Ah

2x Batteries for other purpose each 200 Ah

1x Battery for UPS navigation 100 Ah

1x Battery for other purpose 65 Ah

1x Battery for other purpose 40 Ah

2x Batteries for other purpose each 20 Ah

1x Battery for other purpose 17 Ah

1x Battery for other purpose 12 Ah

1x Battery for automation 9 Ah

1x Battery for other purpose 3 Ah

1x Battery for other purpose 2 Ah

Compressed air receivers

2x Receivers each 15.500 litres - 32,4 bar

1x Receiver 500 litres - 32,4 bar

1x Receiver 200 litres - 7,7 bar

1x Receiver 2.000 litres - 7,6 bar

Bow thruster

1x 3.000 kW

Tank capacities

Ballast: 32.753,4 m³

Anchor equipment

3x Anchors weight each 20.000 kg

Length: 770,00 m

Diameter: 111 mm

Cargo gear

Gearless

Crew size

31

Manager

Costamare Shipping Co. S.A.

Athens

Greece

Operator

MSC - Mediterranean Shipping Company S.A.

Registered owner

Jodie Shipping Co.

Latest data adjustment

11 July 2023
