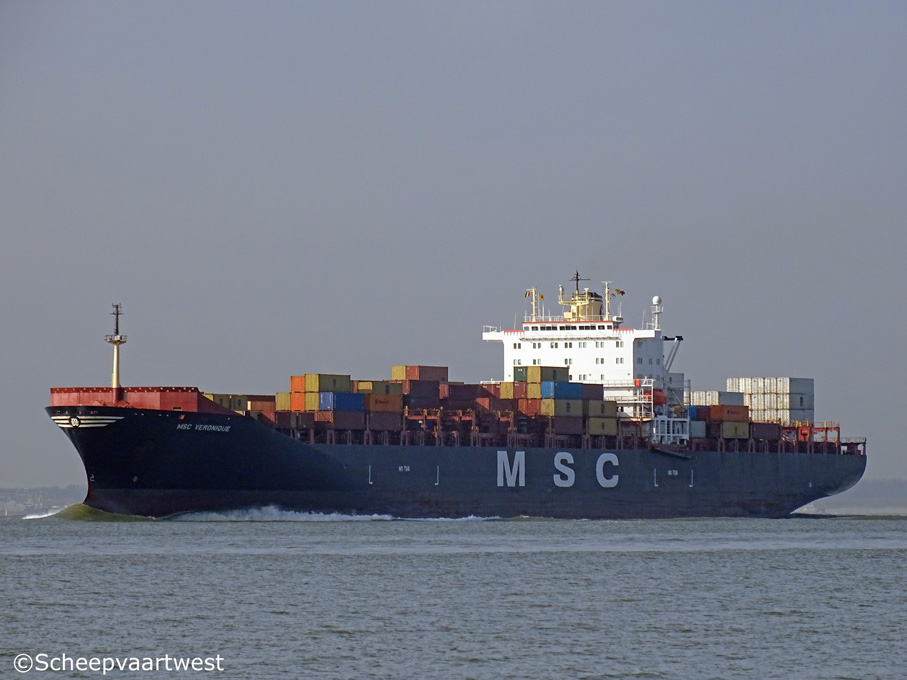

MSC Veronique 01

Westerschelde 01 April 2016

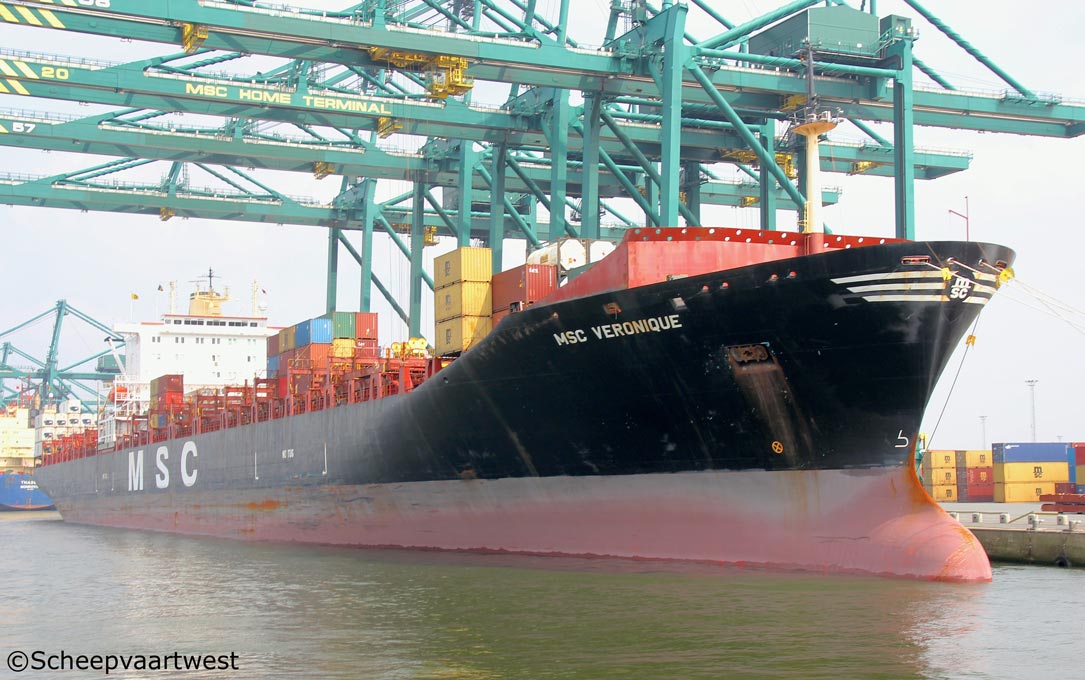

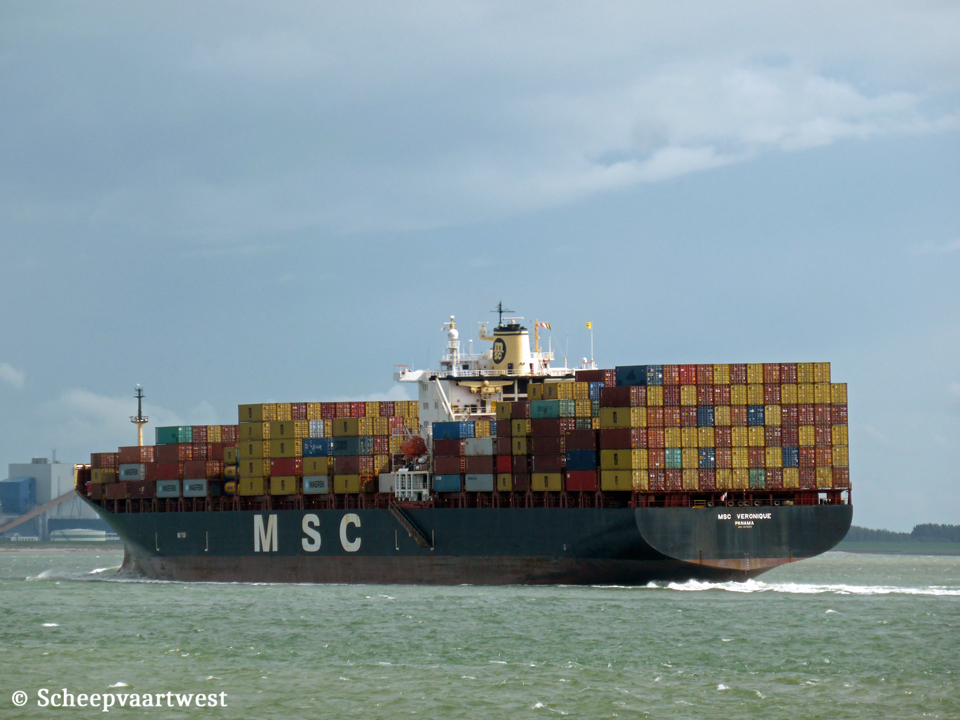

MSC Veronique 02   MSC Veronique IMO 8618293 03
Antwerpen 26/05/16   Westerschelde 14/09/15


Name

MSC VERONIQUE

Previous names

1989 - 11/2006 Mette Maersk

11/2006 - 01/2007 Maersk Merritt

01/2007 - 05/2010 WSC Sweden

05/2010 - 11/2011 Maersk Merritt

11/2011 - 12/2011 Maersk Meritt

Type

Cellular containership

IMO-number

8618293

Call sign

3EYX

Flag

Republic of Panama

Port of registry

Panama City

GT

52.191 t

DWT

Summer: 67.639 t

NT

28.765 m

Number of 20ft containers

4.437

Container capacity 14t

4.200

Reefer capacity

500

Length

294,11 m overall

284,37 m between perpendiculars

Breadth

32,28 m extreme

Draught

13,34 m

Depth

21,52 m

Speed

Max.: 23,5 knots

Built

1989

Keel laid

03/10/1988

Launch date

01/02/1989

Date of completion

26/04/1989

Builder

Odense Staalskibsvaerft A/S

Lindø

Denmark

Yard number

129

Hull material

Shipbuilding steel

Hull type

Double bottom, continuous from peak to peak bulkhead

Main engine

1x MAN-B&W/Mitsui 10K90MC Mk III - 2 stroke 10 cylinder combustion engine 42.425 kW / 57.681 hp at 90,0 rpm

Builder: Mitsui Engineering & Shipbuilding C Ltd - Japan

Propellers

1x Fixed propeller - aft at 90,0 rpm

Boilers

  • 1x Auxiliary boiler, exhaust gas heated type AV-6N Eco

  • 1x Auxiliary boiler, exhaust gas heated type AV-6N Superheater

  • 1x Auxiliary boiler, exhaust gas heated type AV- 6N HP

  • 1x Auxiliary boiler, exhaust gas heated type AV-6N LP

  • 1x Auxiliary boiler, exhaust gas heated type Q5 LP Steam Drum

  • 1x Auxiliary boiler, oil/gas fired type AQ-10/12W

Turbo generator

3.600 kW

Generators

3x Man-B&W 8L28/32 A main diesel generatorsets each 2.000 kVA / 1.600 kW

Emergency generator

1x MWM TBD 234 V 12 diesel generatorset 1.337,5 kVA

Compressed air receivers

2x Receivers each 15.500 litres - 30,0 bar

1x Receiver 400 litres - 30,0 bar

1x Receiver 2.000 litres - 10,0 bar

1x Receiver 500 litres - 10,0 bar

Bow thruster

1x Transverse thruster - 1500 kW / 2.038 bhp, forward

1x Transverse thruster - 860 kW / 1.169 bhp, aft

Tank capacities

Ballast: 21.637,1 m³

Anchor equipment

3x Anchors weight each 12.300 kg

Length: 687,50 m

Diameter: 87 mm

Cargo gear

Gearless

Manager

MSC Shipmanagement Ltd.

Geneva

Switzerland

Operator

MSC - Mediterranean Shipping Company

Registered owner

Seaspan Corporation

Scrapped

21/04/2023 Beached at Alang - India

Alang Shipbreaking Yards

Latest data adjustment

12 July 2024
