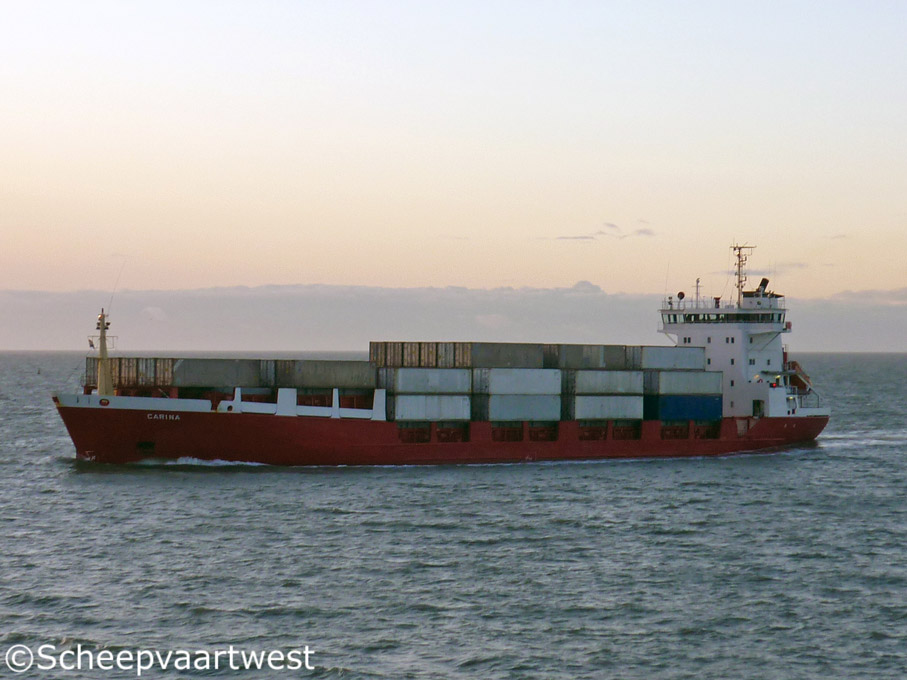

Carina 05
Westerschelde 19 January 2012

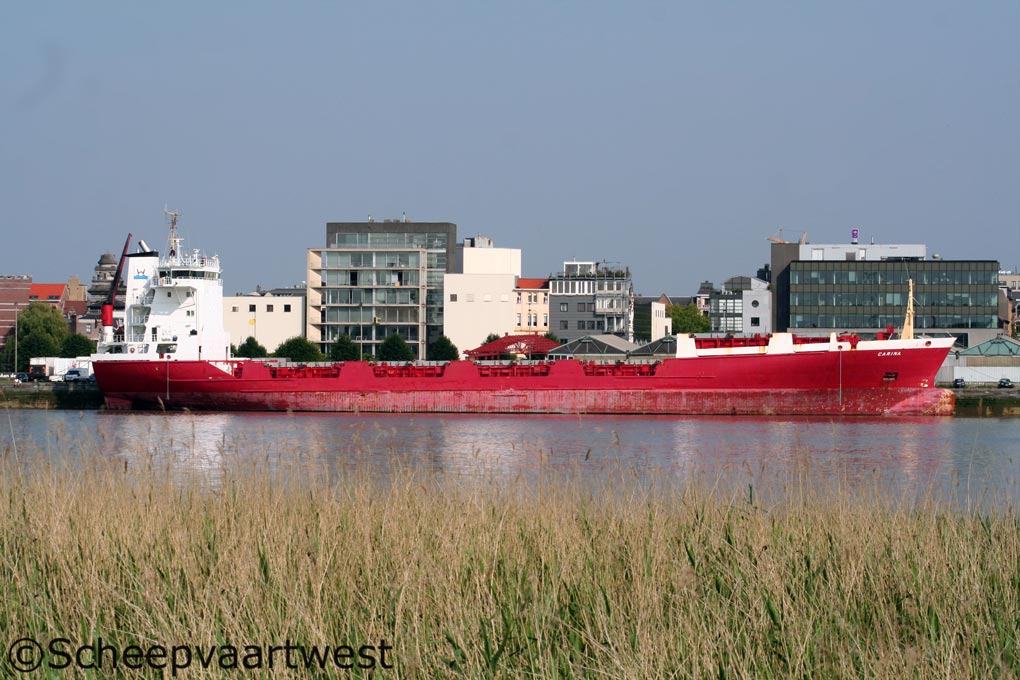

Carina 01
Antwerpen 05/07/11



Name

CARINA

Previous names

1990 Carina

1990-1999 Containerships III

Type

Containership

IMO-number

8908545

Call sign

DNCW

Flag

Germany

Port of registry

Hamburg

GT

5.796 t

DWT

6.350 t

NT

3.451 t

Number of 20ft containers

503

Container capacity 14t

357

Reefer plugs

50

Length

122,02 m overall

114,57 m registered

Breadth

18,70 m registered

Draught

6,948 m

Depth

8,80 m

Speed

16,5 knots

Built

1990

Keel laid

23.03.1989

Launch date

21.02.1990

Date of completion

04.1990

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.
Neuenfelder Fährdeich 88
21129 Hamburg
Federal Republic of Germany

Yard number

1001

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom

Watertight bulkheads

5

Continuous decks

2

Main engine

1x Mak 8 M 552 C - 4 stroke 9 cylinder 450 x 520 mm diesel engine - 5.400 kW at 500 rpm

Reduced power: 3.590 kW

Built: 1989

Builder: Krupp Mak Maschinenbau GmbH
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propeller

1x Controllable pitch propeller - aft at 145 rpm

Boilers

1x Thermal oil heater, oil fired - 8,0 bar

Heating surface: 30,0 m²

Built: 1998

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 150,0 m²

Built: 2002

Electric Installations

1x Plant 400/220 V - 135 kVA

1x Plant 400/220 V - 135 kVA

1x Plant 400/220 V - 135 kVA

1x Plant 400 V - 1.090 kVA

1x Plant 400 V - 40 kVA

Shaft generator

1x 1.090 kVA

Diesel generators

3x Volvo diesel generatorsets each 135 kVA

Emergency generator

1x Diesel generatorset 40 kVA

Compressed air receivers

2x Receivers each 500 litres - 30,0 bar

Bow thruster

1x Fixed pitch propeller PLEUGER - 500 kW, forward

Tank capacities

Fresh water: 80 t

Gas oil: 90 t

Fuel oil: 490 t

Water ballast: 2.400 t / 2.292 m³

Anchor equipment

3x Anchors weight each 3.300 kg

Chain length: 495,00 m

Cargo gear

None

Manager

Wegener Bereederungsges. mbH & Co. KG
Groß Hove 82a
21635 Jork
Federal Republic of Germany

Owner

MS "CARINA" Hans-Peter Wegener KG
Groß Hove 82a
21635 Jork
Federal Republic of Germany
