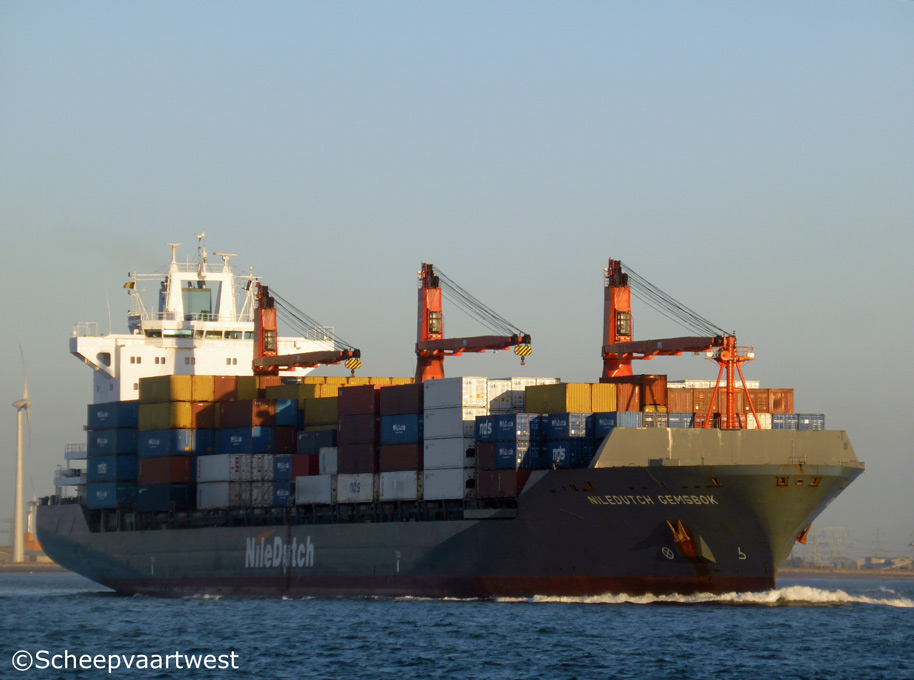

Niledutch Gemsbok 01

Westerschelde 18 October 2014



Name

NILEDUTCH GEMSBOK

Previous names

2003 Launch as: Nordbatic

11.2003 - 12.2008 CMA CGM Romania

12.2008 - 05.2011 Nordbatic

05.2011 - 12.2012 Baltic

Type

Cellular containership
"MTW 2500" Sub-Panamax Size, Selfsust. Cell. Cont. Vessel

IMO-number

9241475

Call sign

P3QN9

Flag

Cyprus

Port of registry

Limassol

GT

25.407 t

DWT

33.767 t

NT

12.733 t

Number of 20ft containers

2.478

Container capacity 14t

1.912

Reefer capacity

In hold: 100

On deck: 300

Total: 400

Length

207,40 m overall

195,40 m between perpendiculars

Breadth

29,80 m extreme

Draught

11,40 m

Depth

16,40 m

Speed

20,0 knots

Economic: 12,5 knots

Built

2003

Keel laid

01.04.2003

Launch date

05.07.2003

Date of completion

05.09.2003

Builder

Aker MTW Werft GmbH
Wismar
Germany

Yard number

018

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

7

Continuous decks

2

Main engine

1x Wärtsilä 7RTA72U-B - 2 stroke 7 cylinder 720 x 2.500 mm diesel engine - 21.560 kW at 99,0 rpm

Year of manufacture: 2002

Manufacturer: Wartsila Italia S.p.A.
Bagnoli della Rosandra, 334
34018 San Dorligo della Valle
Italy

Propellers

1x Solid propeller (keyless) aft at 99,0 rpm

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 18,0 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 262,0 m²

Year of manufacture: 2002

Manufacturer: Alfa Laval Aalborg A/S Marine & Offshore Systems Marine Boilers & Heaters
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

Electric installations

3x Plants each 440/220 V - 1.880 kVA

1x Plant 440 V - 220 kVA

2x Plants each 24 V - 120 Ah

2x Plants each 24 V - 130 Ah

Generators

3x Wärtsilä 9L20C main diesel generatorsets each 1.880 kVA / 1.582 kW

Emergency generator

1x MAN D2866TE diesel generatorset 220 kVA

Batteries

2x Batteries for automation each 130 Ah

2x Batteries for automation each 120 Ah

Compressed air receivers

2x Receivers each 6.500 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

1x Receiver 30 litres - 30,0 bar

Bow thruster

1x Transverse thruster BRUNVOLL - 1.100 kW, forward

Tank capacities

Fuel oil: 2.443 m³
Diesel oil: 246 m³

Ballast: 9.333 m³

Anchor equipment

3x Anchors weight each 9.300 kg

Length: 660,00 m

Diameter: 76 mm

Cargo gear

3x Cranes - 45,0 t each

Operator

Nile Dutch Africa Line BV
Rotterdam
The Netherlands

Owner

NORD GmbH Reederei
Hambourg
Germany

Previous Names & owners

2003 Nordbaltic- Isle of Man, Douglas - Nordbaltic Shipping Co. Ltd.

2003 CMA CGM Romania - CMA CGM

2008 Nordbaltic - Nordbaltic Shipping Co. Ltd.

2011 Baltic - Cyprus, Limassol - Schiffahrtsgesellschaft MS Baltic GmbH

2012 Nileducht Gemsbok - Niledutch

2015 Nordbaltic - Nordbaltic Shipping Co. Ltd.

Renamed

2015 Nordbaltic - Cyprus, Limassol - Call sign: P3QN9

Owner: Schifffahrtsgesellschaft MS "BALTIC" mbH & Co.

Manager: Reederei Nord GmbH

Latest data adjustment

12 August 2016
