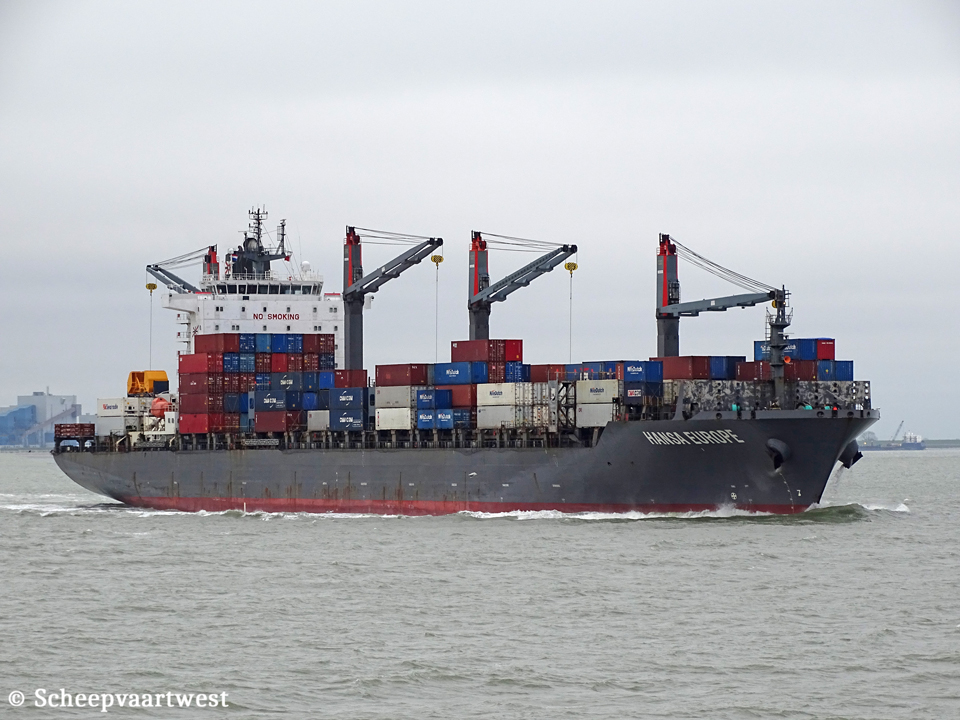

Westerschelde 31 January 2020 |
 |
 |
 |
 |
 |
|
|||||
| Westerschelde 31/01/20 | Westerschelde 31/01/20 | Westerschelde 02/01/17 | Westerschelde 15/07/16 | Westerschelde 29/06/14 | Westerschelde 21/03/20 | |||||
 |
||||||||||
| Westerschelde 29/01/20 | ||||||||||
|
Name |
HANSA EUROPE |
|
Type |
Cellular containership |
|
IMO-number |
9459412 |
|
Call sign |
D5RG3 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flags |
2012 - 2014 Liberia, Monrovia - Call sign: A9ZZ4 2014 - 2018 Germany,Hamburg- Call sign: DISM2 |
|
GT |
38.388 t |
|
DWT |
Summer: 47.266,8 t |
|
NT |
16.631 t |
|
Number of 20ft containers |
3.649 |
|
Container capacity 14t |
2.273 |
|
Reefer capacity |
550 |
|
Length |
239,47 m overall 223,47 m between perpendiculars |
|
Breadth |
32,26 m extreme 32,17 m moulded |
|
Draught |
12,50 m |
|
Keel to mast end |
54,44 m |
|
Depth |
19,20 m |
|
Speed |
Max.: 23,4 knots |
|
Built |
2012 |
|
Keel laid |
27/12/2010 |
|
Launch date |
20/08/2011 |
|
Date of completion |
27/06/2012 |
|
Builder |
Shanghai Shipyard Co., Ltd. 3F No. 10 Building 468, Yangshupu Road Yangpu District Shanghai People's Republic of China |
|
Yard number |
S1160 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x Hyundai/MAN-B&W 7K90MC-C9 - 2 stoke 7 cylinder 800 x 2.600 mm combustion engine 31.710 kW / 43.113 hp at 104,0 rpm Year of manufacture: 2011 Manufacturer: Hyundai Heavy Industries Co., Ltd. Engine & Machinery Division 1000 Bangeojinsunhwan-doro Dong-gu Ulsan Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 104,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 90, bar Heating surface: 20,0 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 451,8 m² Year of manufacture: 2011 Manufacturer: Saacke VKK Marine Boilers GmbH Kaiserstr. 4 24143 Kiel Federal Republic of Germany |
|
Electric installations |
4x Plants each 450 V - 2.250 kVA 1x Plant 450 V - 212,5 kVA 2x Plants each 24 V - 2 Ah 2x Plants each 24 V - 7 Ah 1x Plant 24 V - 12 Ah 2x Plants each 24 V - 65 Ah 1x Plant 24 V - 70 Ah 2x Plants each 24 V - 70 Ah 2x Plants each 24 V - 200 Ah 12x Plants each 24 V - 300 Ah 12x Plants each 24 V - 300 Ah |
|
Generators |
4x Hyundai/Himsen 7H25/33 main diesel generatorsets each 1.800 kW / 2.250 kVA |
|
Emergency generator |
1x Sisu diesel 645 DSBIG diesel generatorset 212,5 kVA |
|
Batteries |
12x Batteries for other purpose each 300 Ah 12x Batteries for automation each 300 Ah 2x Batteries for UPS radio each 200 Ah 2x Batteries for start emergency engine each 70 Ah 1x Battery for other purpose 70 Ah 2x Batteries for diesel control each 65 Ah 1x Battery for automation 12 Ah 2x Batteries for other purpose each 7 Ah 2x Batteries for other purpose each 2 Ah |
|
Bow thruster |
1x Transverse thruster 1.200 kW, forward |
|
Tank capacities |
Ballast: 16.734,9 m³ |
|
Anchor equipment |
3x Anchors weight each 11.700 kg Length: 687,50 m Diameter: 84 mm |
|
Cargo gear |
4x Deck cranes - SWL 45,0 t each |
|
Crew size |
30 |
|
ISM & commercial manager |
Leonhardt & Blumberg Reederei GmbH & Co. KG Neumühlen 13 22763 Hamburg Germany |
|
Registered owner |
MS Hansa Flottbek Feeder I GmbH & Co. KG Care of Leonhardt & Blumberg Schiffahrtsgesellschaft mbH & Co KG Neumuehlen 13 22763 Hamburg Germany |
|
Latest data adjustment |
22 July 2022 |
