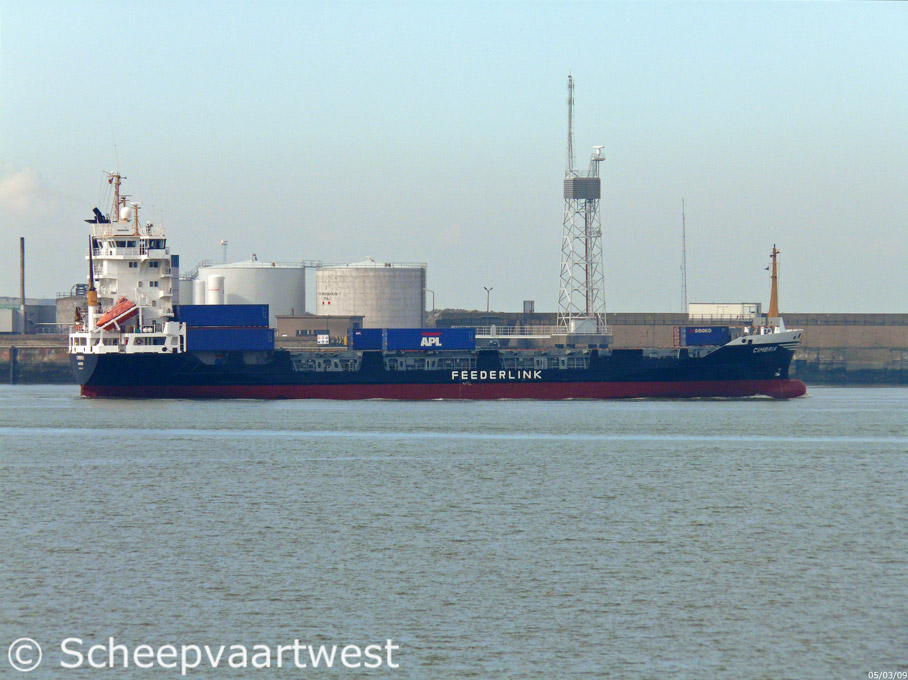

| Zeebrugge 05 March 2009 |
 |

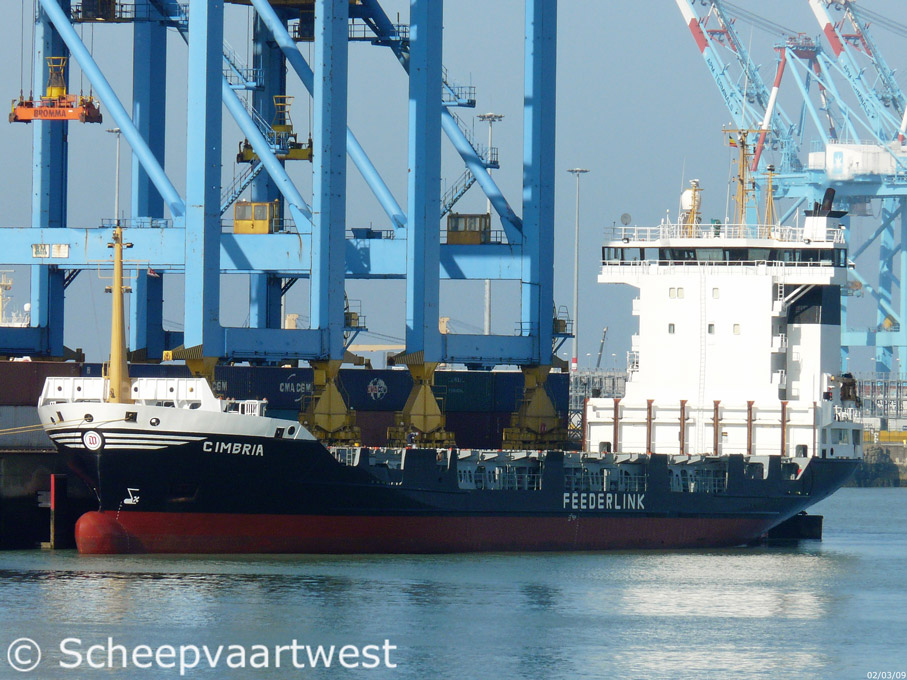

| Zeebrugge 02/03/09 |
|
Name |
CIMBRIA |
|
Previous names |
1998-15.03.2008 Comet |
|
Type |
Cellular Containership |
|
IMO-number |
9183415 |
|
Call sign |
DPGI |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
GT |
3.999 t |
|
DWT |
Summer: 5.330 t |
|
NT |
2.176 t |
|
Number of 20ft containers |
508 |
|
Reefer point |
120 |
|
Length |
101,16 m overall |
|
Breadth |
18,20 m registered |
|
Draught |
Summer: 6,547 m |
|
Forecastle |
9,33 m |
|
Poop |
9,00 m |
|
Freeboard |
1.700 mm |
|
Depth |
8,25 m moulded |
|
Speed |
15,0 knots |
|
Built |
1998 |
|
Keel laid |
09.12.1997 |
|
Launch date |
08.05.1998 |
|
Date of completion |
06.1998 |
|---|---|
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. |
|
Yard number |
1169 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
1x Deutz-MWM TBD645L9 - 4 stroke single acting 9 cylinder 330 x 450 mm diesel engine- 3.825 kW |
|
Propeller |
1x Controllable pitch propeller - aft |
|
Electric Installations |
1x Plant 380/220 V - 650 kVA |
|
Shaft generator |
1x 850 kVA |
|
Generators |
2x Main diesel generatorsets each 325 kVA |
|
Emergency generator |
1x Diesel generatorset 40 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster - 400 kW, forward |
|
Cargo capacity |
Grain: 7.247 m³ |
|
Tank capacities |
Bunker: 370 t |
|
Anchor Equipment |
3 Anchors weight each 3.300 kg |
|
Crew |
11 |
|
Manager |
Reederei Gebr. Winter GmbH & Co. KG |
|
Operator |
Feederlink |
|
Owner |
MS "COMET" Gebr. Winter Reedereigesellschaft mbH & Co. KG |
