Zeebrugge 06 September 2016 |
|
Name |

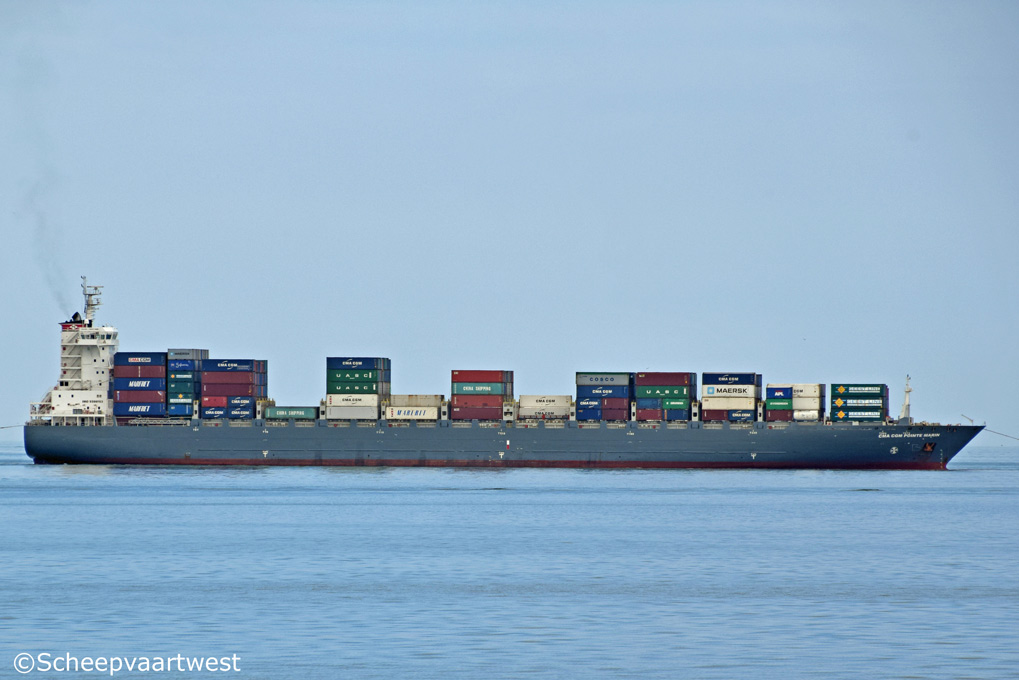

CMA CGM POINTE MARIN |
|
Previous names |
2007 - 2008 Antofagasta 2008 - 01.2013 Maersk Jennings 01.2013 - 01.2016Hammonia Antofagasta |
|
Type |
Cellular containership |
|
IMO-number |
9399753 |
|
Call sign |
A8OU5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
32.901 t |
|
DWT |
Summer: 35.534,2 t |
|
NT |
13.452 t |
|
Number of 20ft containers |
2.851 |
|
Number of 40ft containers |
1.372 |
|
Container capacity 14t |
2.130 |
|
Reefer points |
650 |
|
Length |
225,16 m overall 212,50 m between perpendiculars 216,81 m registered |
|
Breadth |
31,29 m extreme 30,50 m registered |
|
Draught |
12,20 m |
|
Freeboard |
4.616 mm |
|
Depth |
19,70 m moulded |
|
Speed |
Max.: 21,3 knots |
|
Built |
2007 |
|
Keel laid |
12.04.2006 |
|
Launch date |
08.11.2007 |
|
Date of completion |
12.03.2008 |
|
Builder |
Yangfan Group Co., Ltd. |
|
Yard number |
2049 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
8 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 7L70MC-C - 2 stroke 7 cylinder 700 x 2.360 mm diesel engine - 22.890 kW at 108,0 rpm Year of manufacture: 2007 Manufacturer: Dalian Marine Diesel Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 108,0 rpm |
|
Boilers |
Steam boiler, oil fired - 10,0 bar Heating surface: 22,3 m² Steam boiler, exhaust gas heated - 10,0 bar Heating surface: 403,0 m² |
|
Electric installations |
4x Plants each 450 V - 2.140 kW 1x Plant 450 V - 250 kVA |
|
Generators |
4x Yanmar 6EY26L main diesel generatorsets each 1.712 kW / 2.140 kVA |
|
Emergency generator |
1x Sisu diesel 645 DSBAG diesel generatorset 250 kVA |
|
Compressed air receivers |
2x Receivers each 8.000 litres - 33,0 bar 1x Receiver 500 litres - 33,0 bar 1x Receiver 1.500 litres - 10,0 bar |
|
Bow thruster |
1x Transverse thruster 1.300 kW, forward |
|
Number of holds |
6 |
|
Number of hatches |
11 |
|
Tank capacities |
Ballast: 14.266,4 m³ |
|
Anchor equipment |
3x Anchors weight each 9.900 kg Chain length: 654,2 m Diameter: 78 mm |
|
Cargo gear |
Gearless |
|
Crew |
21 |
|
Managers |
Hammonia Reederei GmbH & Co. KG |
|
Operator |
CMA CGM |
|
Previous operator |
Peter Döhle shiffahrts KG |
|
Registered owner |
FHH Fonds Nr. 40 MS "ANTOFAGASTA" GmbH & Co. KG |
|
Latest data adjustment |
28 September 2016 |
