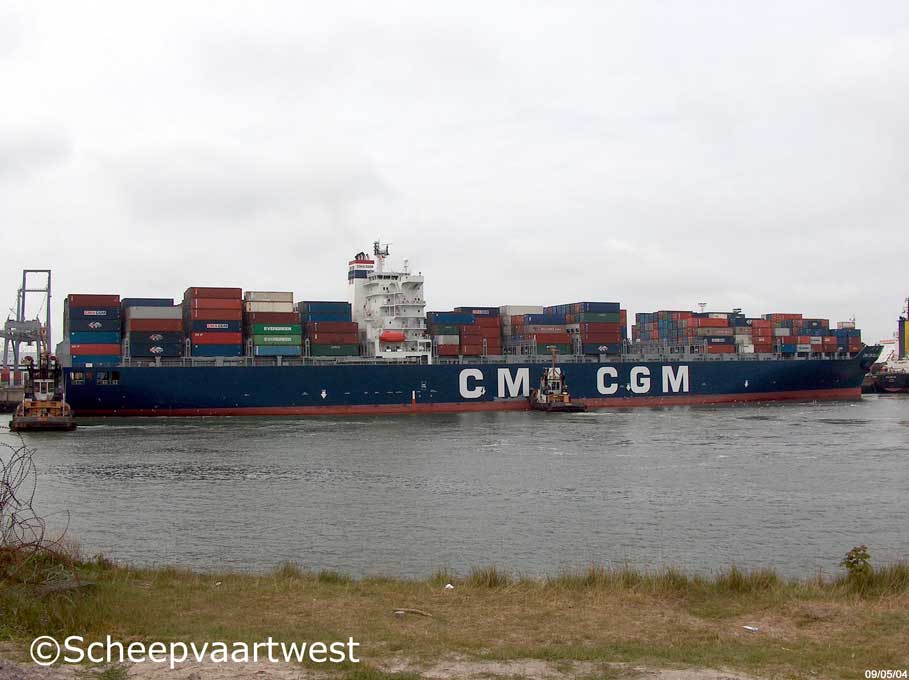

| Zeebrugge 09 May 2004 |
|
Name |
CMA CGM BELLINI |
|
Type |
Cellular Containership |
|
IMO-number |
9280598 |
|
Call sign |
C6TH5 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
65.247 t |
|
DWT |
Summer: 73.234 t |
|
NT |
37.549 t |
|
Number of 20ft containers |
5.670 |
|
Container capacity 14t |
4.390 |
|
Reefer Points |
500 Reefer points |
|
Length |
277,28 m overall |
|
Beam |
40,00 m |
|
Draught |
Summer: 14,50 m |
|
Freeboard |
Summer: 3.124 mm |
|
Depth |
24,30 m |
|
Speed |
24,5 knots |
|
Built |
2004 |
|
Date of build |
31.03.2004 |
|
Builder |
Samsung Heavy Industries Co., Ltd. |
|
Yard number |
1457 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
12 |
|
Continuous decks |
2 |
|
Propelling engine |
1x MAN-B&W 10K98MC-C - 2 stroke 10 cylinder 980 x 2.400 mm internal combustion diesel engine - 57.114 kW / 77.600 hp at 104,0 rpm |
|
Electrical propulsion gen. |
2.100 kW - 450 V |
|
Number of screws |
1x Screw propeller solid at 104 rpm |
|
Boilers |
1x CHO Aalborg 41,40 m² - 9,0 bar |
|
Electrical installation |
Power voltage: 440 V |
|
Shaft generator |
2.100 kW |
|
Diesel generators |
3x Main diesel generatorsets each 3.375 kVA - 2.700 kW - 3.861 hp |
|
Emergency Generators |
1x Diesel generatorset 188 kVA - 150 kW - 270 hp |
|
Bow thruster |
Yes |
|
Fuel capacity |
9.092 m³ |
|
Cargo Gear |
Gearless |
|
Manager |
CMA CGM |
|
Operator |
CMA CGM |
|
Owner |
SG Leasing (Central3) Ltd. |
|
Owner as completed |
SG Leasing (Central 3) Ltd. |
