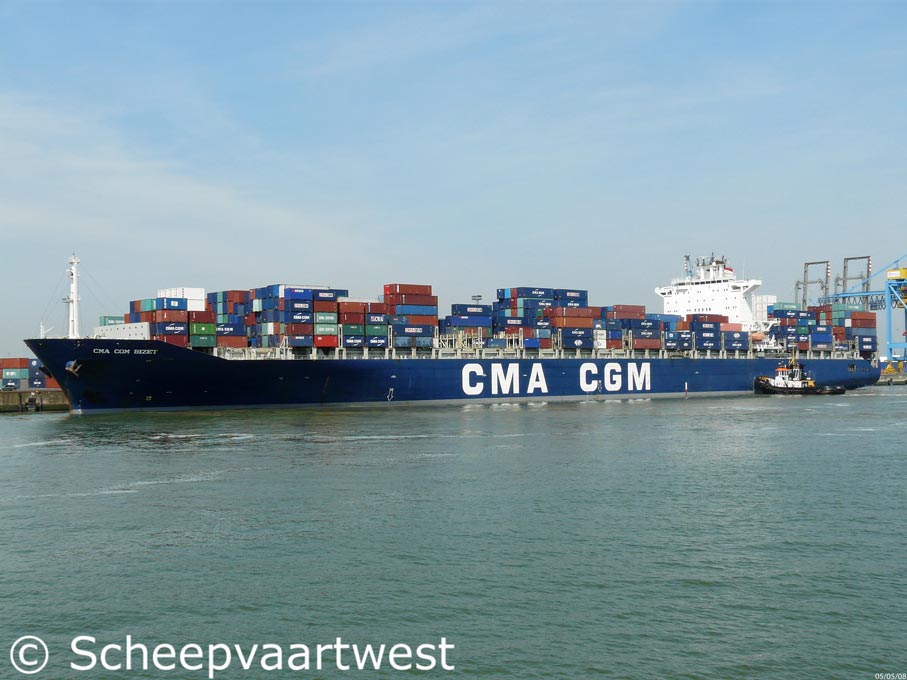

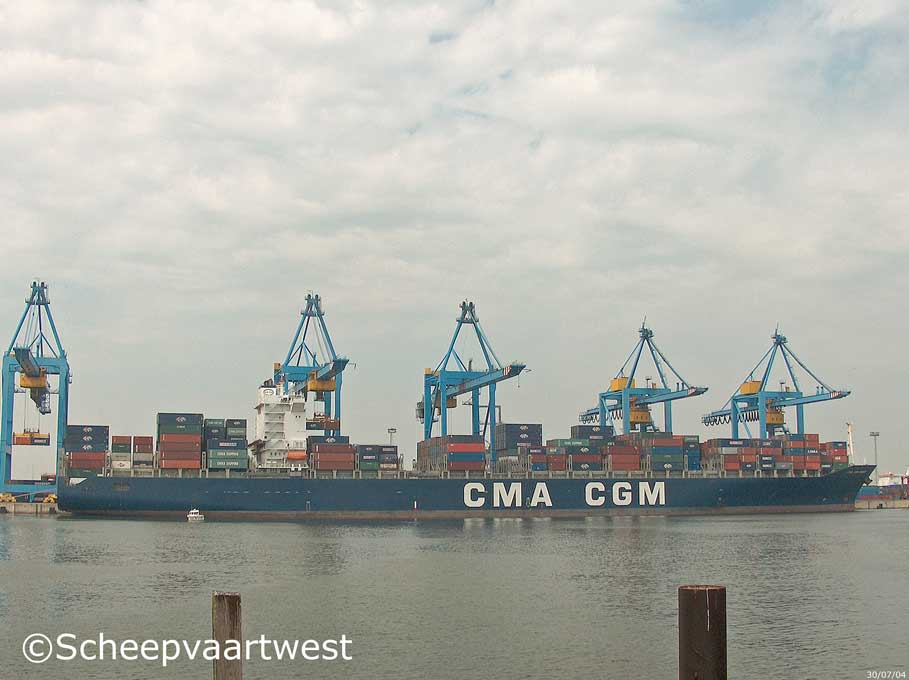

CMA CGM Bizet - IMO 9222302

Name

CMA CGM BIZET

Type

Cellular containership

IMO-number

9222302

Call sign

FUDL

Flag

France

Previous flags

18.10.2001 Republic of Panama
02.11.2006 French Southern & Antarctic Territories

Port of registry

Marseille

GT

73.157 t

DWT

Summer: 80.238 t

NT

41.255 t

Number of 20ft containers

6.627

Container capacity 14t

4.555

Reefer Point

500 on deck up to 3RD tier

Length

300,40 m overall
282,50 m between perpendiculars

Breadth

40,30 m

Draught

Summer: 14,271 m

Freeboard

Summer: 5.855 mm

Depth

24,10 m

Speed

25,8 knots

Built

2001

Launch date

30.06.2001

Date of completion

14.09.2001

Builder

Hanjin Heavy Industries & Construction Co., Ltd.
Busan
South Korea

Yard number

N-088

Hull material

Steel

Hull type

Single hull

Watertight compartments

11

Continuous decks

2

Propelling engine

1x MAN & Burmeister & Wain Hundai 12K-98MC-C –2 stroke 12 cylinder 980 x 2400 mm internal combustion engine - 68.520 kW / 93.098 hp at 104,0 rpm
Built: 2001
Builder: Hyundai Heavy Industries Co. Ltd.- Industrial Plant & Offs, Ulsan - South Korea

Number of screws

1x Screw propeller solid at 104 rpm

Boilers

1x CHO Kangrim 137,00 m² - 10,0 bar
1x CHR Kangrim 645,00 m² - 10,0 bar

Electrical installation

Power voltage: 450 V
Lighting voltage: 220 V
Frequency: 60 Hz

Diesel generators

3x Main diesel generatorsets each 3.500 kVA - 2.800 kW - 4.022 hp

Emergency generators

1x Diesel generatorset 687 kVA - 550 kW - 826 hp

Bow thruster

2.000 kW

Cargo holds

8

Cargo hatchways

17

Dimension:
13x 12,50 x 35,80 m
1x 12,50 x 15,40 m
1x 12,50 x 25,60 m
1x 12,50 x 30,00 m

Fuel capacity

13.863,20 m³

Lifting equipment

1x Crane - SWL 4,0 t
3x Cranes - SWL 12,5 t each

Cargo Gear

Gearless

Manager

CMA CGM
Marseille
France

Operator

CMA CGM

Owner

CMA CGM
Marseille
France
