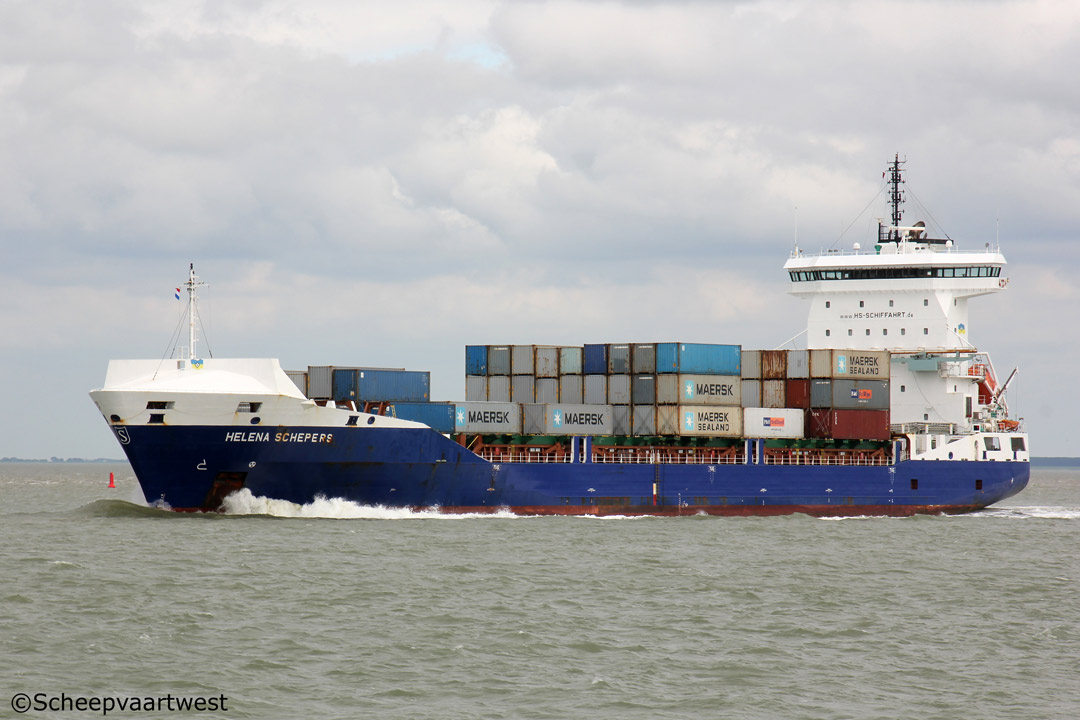

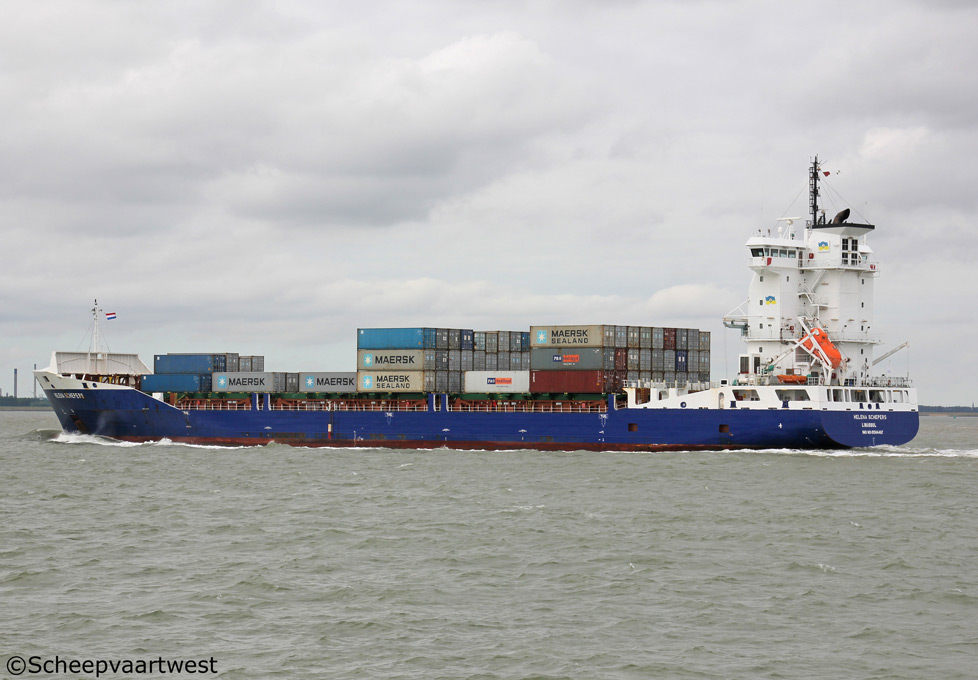

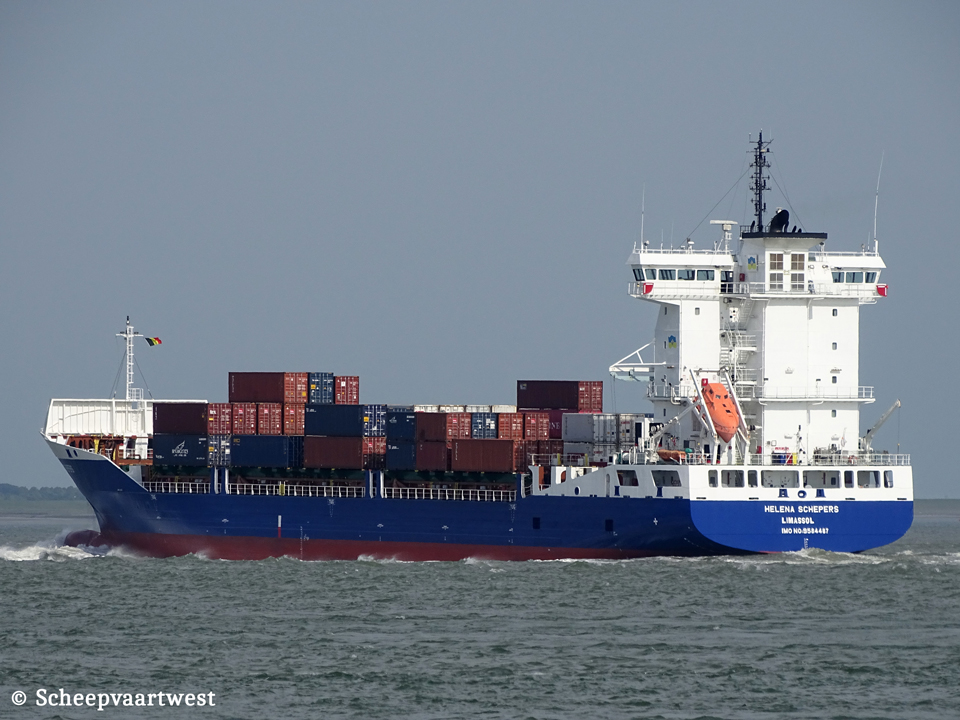

Westerschelde 07 August 2016 |
 |
 |
|
| Westerschelde 07/08/16 | Westerschelde 11/06/18 | |
|
Name |
HELENA SCHEPERS |
|
Type |
Containership |
|
IMO-number |
9584487 |
|
Call sign |
CQEW6 |
|
Flag |
Portugal |
|
Port of registry |
Madeira |
|
Previous flags |
2012 - 2013 Antigua & Barbuda, St. John's - Call sign: V2QI8 2013 - 2021 Cyprus, Limassol - Call sign: 5BVP3 |
|
GT |
10.318 t |
|
DWT |
10.600 t |
|
NT |
5.391 t |
|
Number of 20ft containers |
On deck: 714 In hold: 322 Total: 1.036 |
|
Container capacity 14t |
790 |
|
Reefer capacity |
250 |
|
Length |
151,74 m overall 142,37 m between perpendiculars |
|
Breadth |
23,40 m |
|
Draught |
8,00 m |
|
Keel to mast end |
43,66 m |
|
Freeboard |
1.510 mm |
|
Depth |
11,75 m |
|
Speed |
18,5 knots |
|
Built |
2002 |
|
Keel laid |
30/11/2010 |
|
Launch date |
22/08/2011 |
|
Date of completion |
25/01/2012 |
|
Builder |
Sainty Shipbuilding (Yangzhou) Co.,Ltd. China |
|
Yard number |
07STIG237 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
7 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 8L48/60 B - 4 stroke 8 cylinder 480 x 600 mm combustion engine 9.000 kW / 12.228 hp at 500 rpm Built: 03/2011 Builder: MAN Diesel SE, Augsburg - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 122 rpm |
|
Boilers |
1x CHR Aalborg 149,00 m² - 9,0 bar |
|
Shaft generator |
1x 2.125 kVA - 1.700 kW |
|
Generators |
3x Main diesel generatorsets each 688 kVA - 550 kW - 842 hp |
|
Emergency generator |
1x Diesel generatorset 394 kVA - 315 kW |
|
Bow thruster |
1x 800 kW |
|
Number of holds |
3 |
|
Cargo hold capacity |
17.767,5 m³ |
|
Number of hatches |
3 |
|
Tank capacities |
Fuel: 1.177,2 m³ |
|
Cargo gear |
Gearless |
|
Commercial manager |
HS Bereederungs GmbH & Co. KG Thyssenstraße 16 49733 Haren/Ems Germany |
|
ISM manager |
Emstrans Scheepvaart Management B.V. Viaductstraat 128A 9561 AG Ter Apel The Netherlands |
|
Registered owner |
HS Schiffahrts GmbH & Co. KG MS ''Helena Schepers'' Care of HS Bereederungs GmbH & Co KG, Thyssenstraße 16 49733 Haren/Ems Germany |
|
Latest data adjustment |
20 December 2022 |
