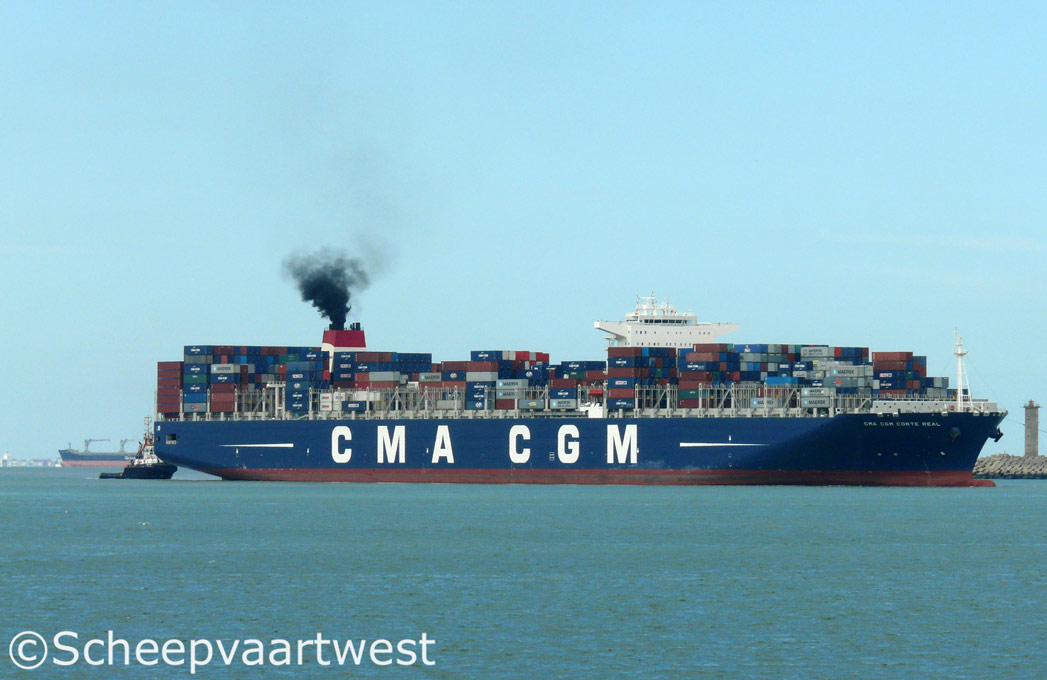

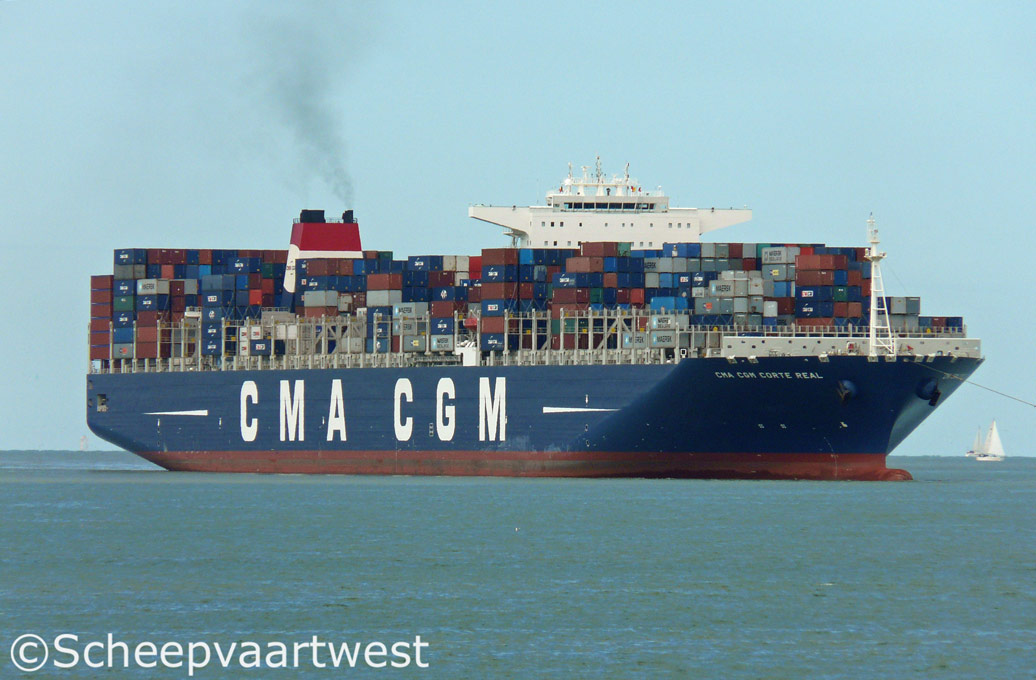

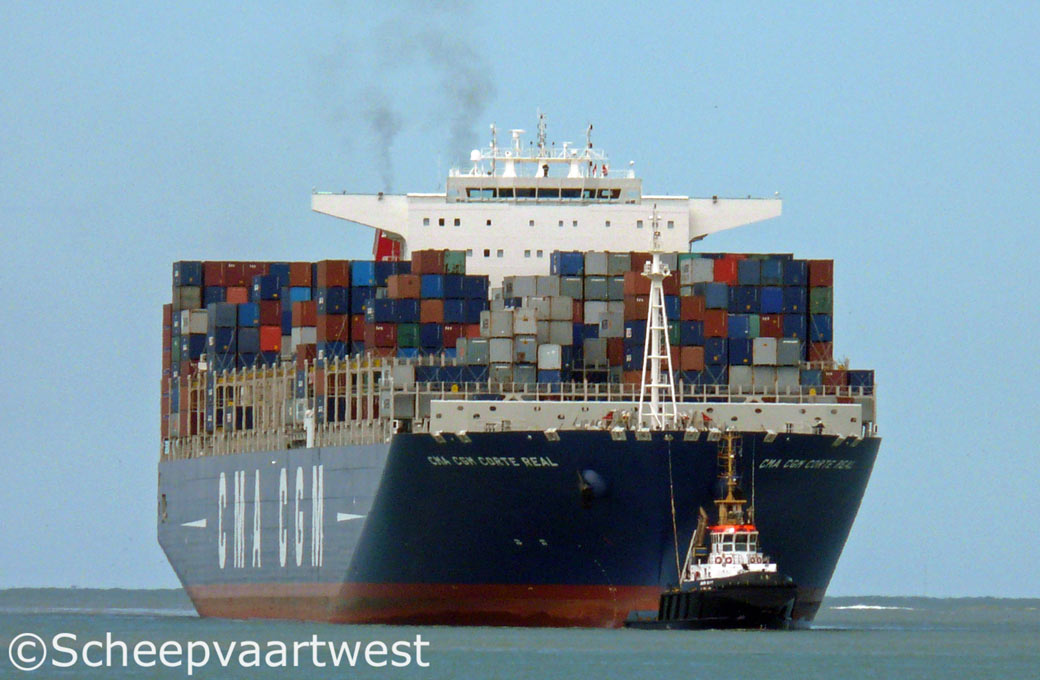

| Zeebrugge 19 July 2011 |
 |
 |
 |
||
| Zeebrugge 19/07/11 | Zeebrugge 19/07/11 | Zeebrugge 10/03/14 |
|
Name |
CMA CGM CORTE REAL |
|
Type |
Cellular containership |
|
IMO-number |
9454400 |
|
Call sign |
2CXB8 |
|
Flag |
United Kingdom |
|
Port of registry |
London |
|
GT |
153.022 t |
|
DWT |
Summer: 156.898 t |
|
NT |
81.900 t Suez: 142.253,97 t |
|
Number of 20ft containers |
13.830 |
|
Container capacity 14t |
9.936 |
|
Reefer capacity |
800 x 40' on deck |
|
Length |
365,50 m overall 349,50 m between perpendiculars |
|
Breadth |
51,20 m |
|
Draught |
Summer: 15,50 m |
|
Freeboard |
1.973 mm |
|
Depth |
29,90 m |
|
Speed |
Max.: 24,1 knots |
|
Built |
2010 |
|
Delivery date |
16.08.2010 |
|
Builder |
Daewoo Shipbuilding & Marine Engineering Co., Ltd. |
|
Yard number |
4158 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
2 |
|
Main engine |
1x Wärtsilä 14RT-Flex96C - 14 cylinder diesel engine - 80.080 kW / 108.804 hp at 102,0 rpm Builder:Hyundai Heavy Ind. Co., Ltd. - Engine & Mach. Div. |
|
Propeller |
1x Screw propeller solid |
|
Boilers |
1x CHO 4.014,00 m² - 10,0 bar |
|
Diesel generators |
2x HimSen 8H32/40 diesel generatorsets each 3.840 kW - 4.800 kVA - 5.435 hp 2x HimSen 7H32/40 diesel generatorsets each 3.360 kW - 4.125 kVA - 4.755 hp |
|
Bow thruster |
3.600 kW |
|
Number of holds |
9 |
|
Fuel capacity |
15.630 m³ |
|
Cargo gear |
None |
|
Crew |
27 |
|
Managing owners |
CMA CGM - Compagnie Maritime D'Affrètement - Compagnie Générale Maritime |
|
Operator |
CMA CGM - Compagnie Maritime D'Affrètement - Compagnie Générale Maritime |
|
Owner |
CMA CGM - Compagnie Maritime D'Affrètement - Compagnie Générale Maritime |
