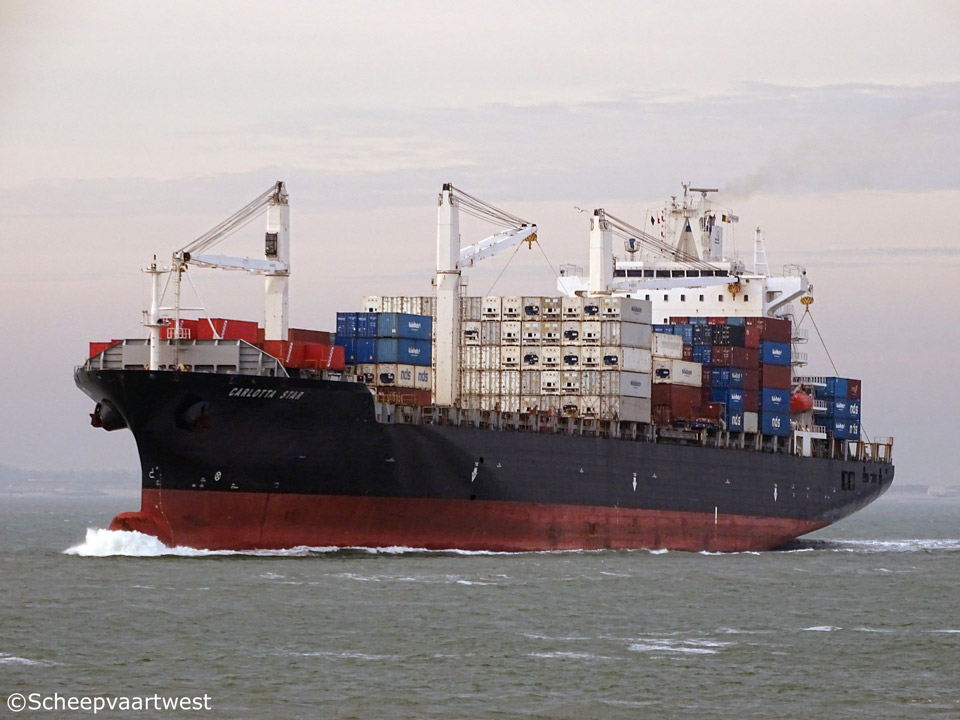

Carlotta Star 01

Westerschelde 07 December 2016



Name

CARLOTTA STAR

Previous names

2000 built as: Santa Carlotta

01.2000 - 10.2005 P&O Nedlloyd Olinda

10.2005 - 01.2011 Santa Carlotta

Type

Cellular containership

IMO-number

9210050

Call sign

A8IU6

Flag

Liberia

Port of registry

Monrovia

GT

37.113 t

DWT

Summer: 40.017 t

NT

18.650 t

Number of 20ft containers

3.430

Container capacity 14t

2.250

Reefer capacity

800

Length

243,15 m overall

231,00 m between perpendiculars

Breadth

32,20 m extreme

Draught

11,50 m

Depth

19,30 m

Speed

Max.: 22,9 knots

Built

2000

Keel laid

29.06.2000

Launch date

03.09.2000

Date of completion

20.11.2000

Builder

Samsung Heavy Industries Co., Ltd. Geoje Shipyard
530, Jangpyeong-ri, Sinhyeon-eup
Geoje, Kyongsang-namdo
Republic of Korea

Yard number

1314

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

8

Continuous decks

2

Main engine

1x Sulzer 7RTA84C - 2 stroke 7 cylinder 840 x 2.400 mm diesel engine - 28.385 kW at 102,0 rpm

Year of manufacture: 2001

Manufacturer: Samsung Heavy Industries Co., Ltd.
1339, Hyohaeng-ro
Hwaseong-si, Kyonggi-do
Republic of Korea

Propellers

1x Solid propeller (Keyless) - aft

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 75,0 m²

1x Steam boiler,exhaust gas heated - 9,0 bar

Heating surface: 469,0 m²

Year of manufacture: 2000

Manufacturer: Parat Anders Halvorsen AS
Tjoersvaagstrand 27
4401 Flekkefjord
Norway

Electric installations

4x Plants each 440/220 V - 2.250 kVA

1x Plant 440 V - 188 kVA

1x Plant 24 V - 400 Ah

1x Plant 24 V - 800 Ah

Generators

4x MAN 9L28/32 H main diesel generatorsets each 2.250 kVA

Emergency generator

1x Cummins CTA 8.3 DMGE diesel generatorset 188 kVA

Batteries

1x Battery for start emergency engine 400 Ah

1x Battery for start emergency engine 400 Ah

1x Battery for UPS radio 400 Ah

Compressed air receivers

2x Receivers each 6.900 litres - 31,0 bar

1x Receiver 300 litres - 9,0 bar

1x Receiver 100 litres - 7,7 bar

Bow thruster

2x Transverse thruster Nakashima - each 1300 kW, forward

Tank capacities

Ballast: 12.155,9 m³

Anchor equipment

3x Anchors weight each 11.100 kg

Length: 687,50 m

Diameter: 81 mm

Cargo gear

4x Deck cranes - SWL 45,0 t each

Crew

22

Manager

Niledutch / Goldenport Shipmanagement Ltd.

Registered owner

Malvern 2 Shipping Ltd.
Athens
Greece

Latest data adjustment

28 December 2016
