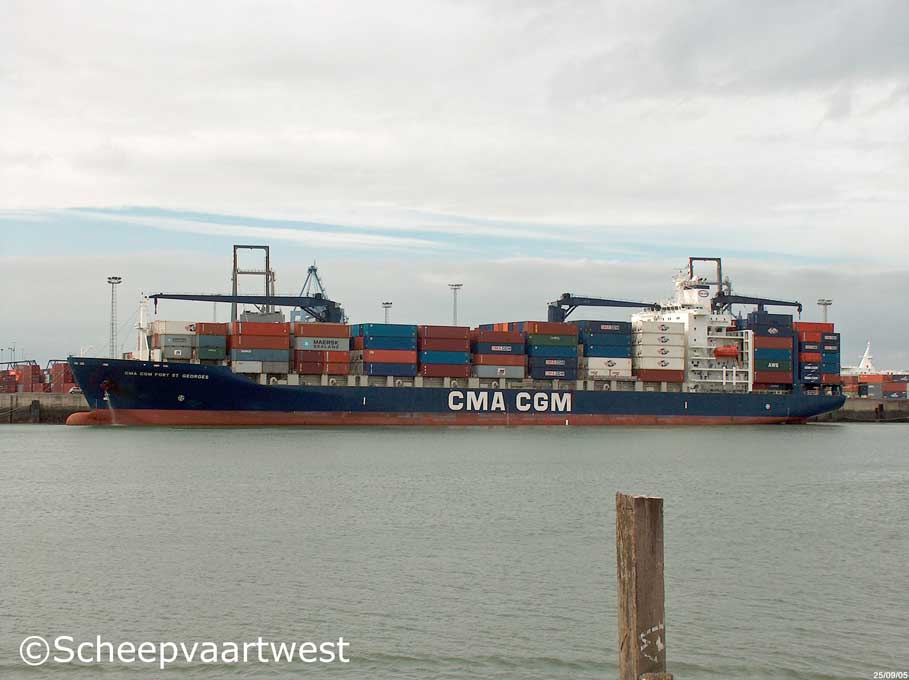

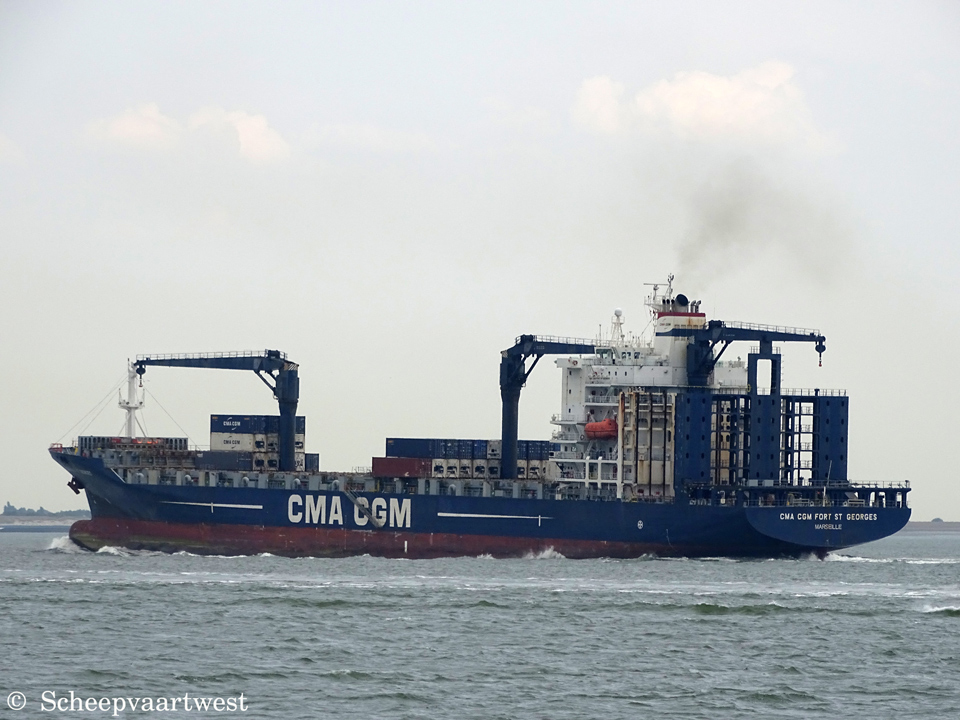

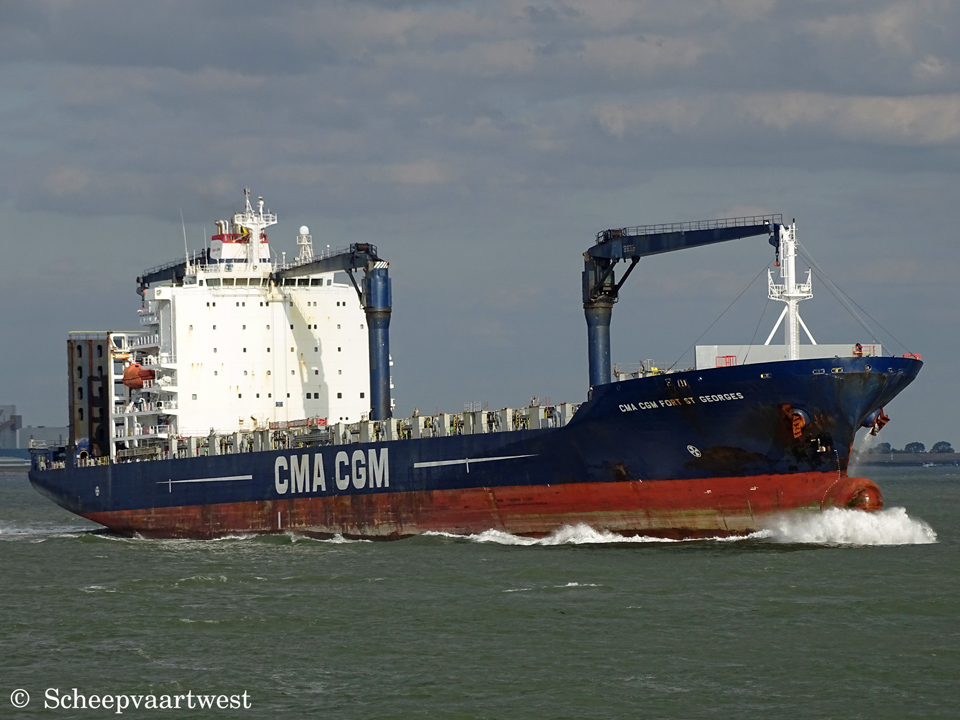

CMA CGM Fort St Georges - IMO 9261918

Name

CMA CGM FORT ST GEORGES

Type

Cellular containership

IMO-number

9261918

Call sign

FQWZ

Flag

France

Previous flags

17.02.2005 France

30.04.2007 French Southern & Antarctic Territories, Port Aux Français

Port of registry

Marseille

Previous flags

17/02/2005 France

30/04/2007 French Southern & Antarctic Territories, Port Aux Français

GT

26.342 t

DWT

Summer: 30.804 t

NT

10.221 t

Number of 20ft containers

2.260

Container capacity 14t

1.700

Reefer point

550 reefer plugs

Length

197,20 m overall
184,91 m between perpendiculars

Breadth

30,20 m overall

Draught

Summer: 11,01 m

Freeboard

Summer: 5.625 mm

Depth

16,60 m

Speed

21,5 knots

Line

French West Indies Service

Deployment

French West Indies - FWI

Built

2003

Date of completion

03/07/2003

Builder

China Shipbuilding Keelung Corp.
Kaohsiung Shipyard
Taiwan
China

Yard number

799

Hull material

Steel

Hull type

Single hull

Watertight compartments

8

Continuous decks

1

Propelling engine

1x MAN B&W 8S70 MC C - 2 stroke 8 cylinder 700 x 2.800 mm combustion engine 24.830 kW / 33.736 hp at 91 rpm

Built: 2002

Builder: HSD Engine Pusan Co. Ltd. - South Korea

Number of screws

1x Screw propeller solid at 91 rpm

Boilers

1x CHO Osaka 47,00 m² - 7,0 bar
1x CHR Osaka 562,00 m² - 12,9 bar

Electrical installation

Power voltage: 440 V

Lighting voltage: 220 V

Frequency: 60 Hz

Generators

4x Main diesel generatorsets each 2.250 kVA - 1.800 kW - 2.568 hp

Emergency generators

1x Diesel generatorset 150 kVA - 120 kW - 190 hp

Bow thruster

2x 1.100 kW

Cargo holds

5

Cargo hatchways

9

1x 12,60 x 15,70 m

1x 12,60 x 20,90 m

7x 12,60 x 20,60 m

Fuel capacity

2.416,57 m³

Cargo gear

3x Cranes - SWL 45 t each

Manager

CMA CGM SA The French Line
Marseille
France

Operator

CMA CGM

Register owner

Champ Integrity International Holding Limited

Latest data adjustment

23 December 2018
