Westerschelde 29 May 2017 |
 |
 |
 |
 |
|||
| Westerschelde 24/12/16 | Westerschelde 05/08/18 | Westerschelde 11/08/19 | Westerschelde 11/08/19 |
|
Name |

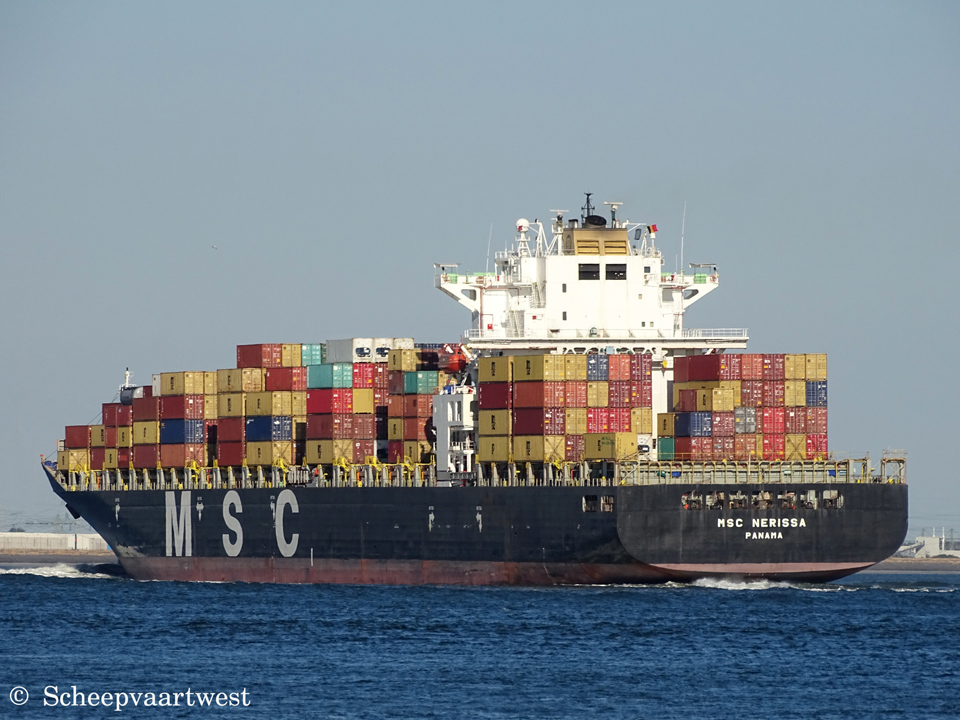

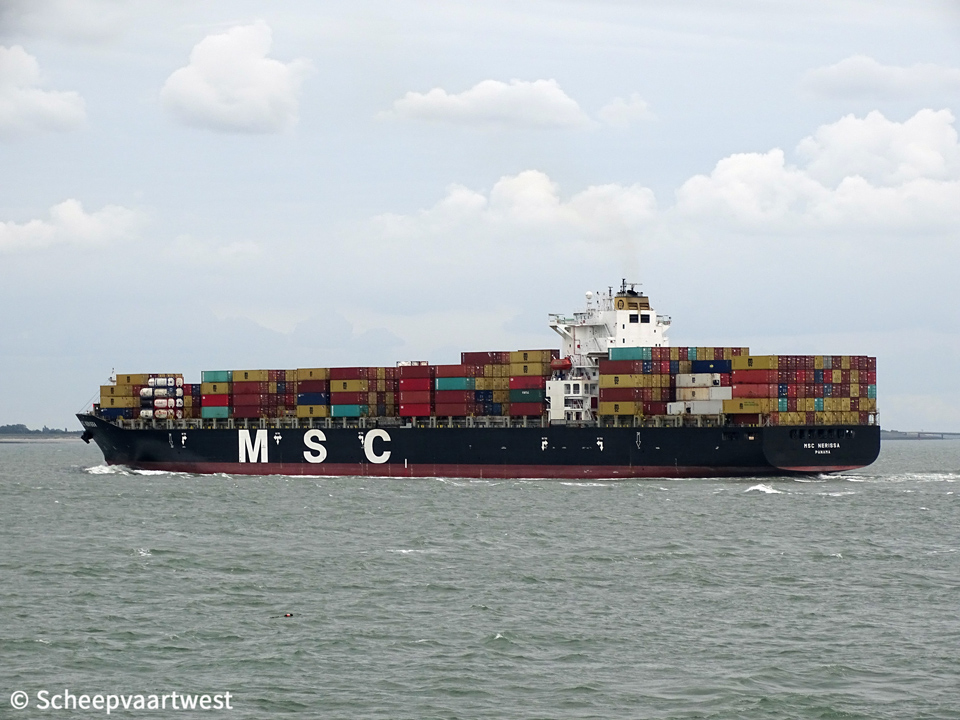

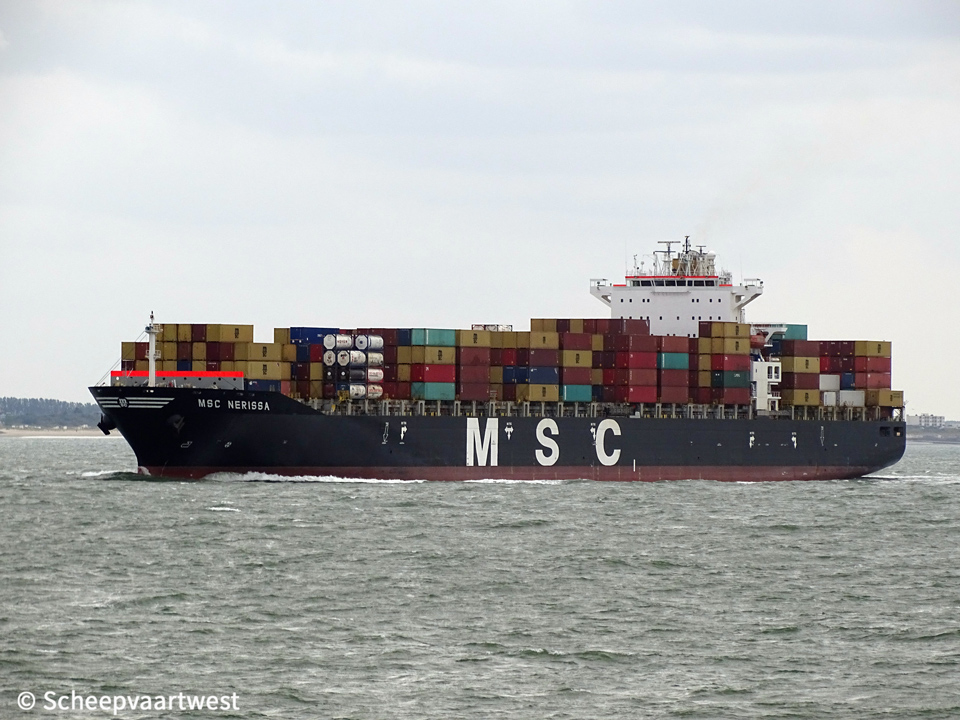

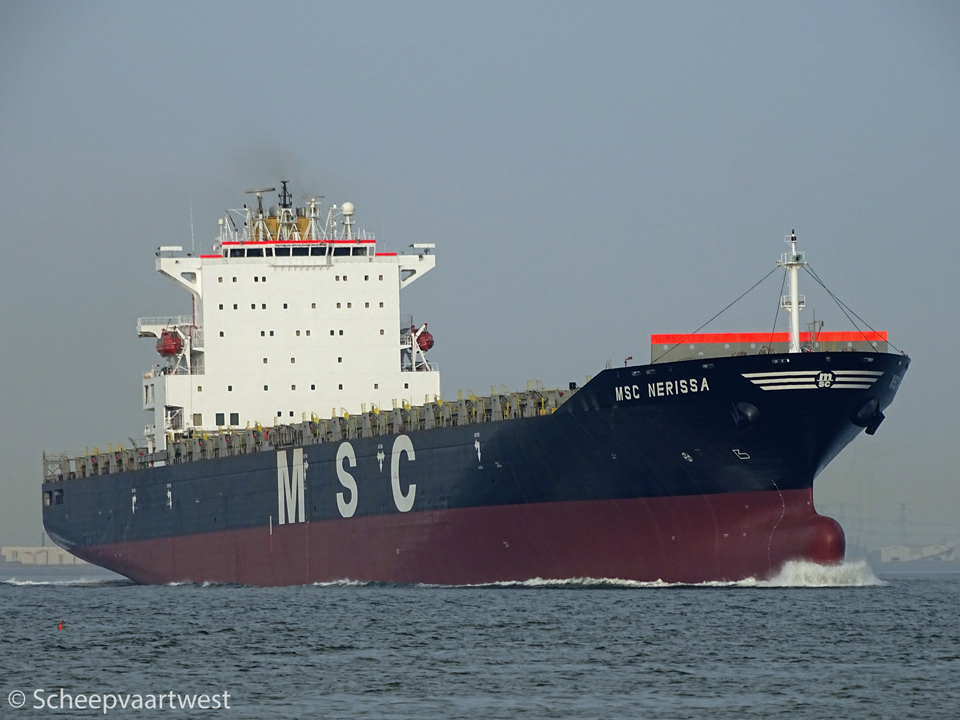

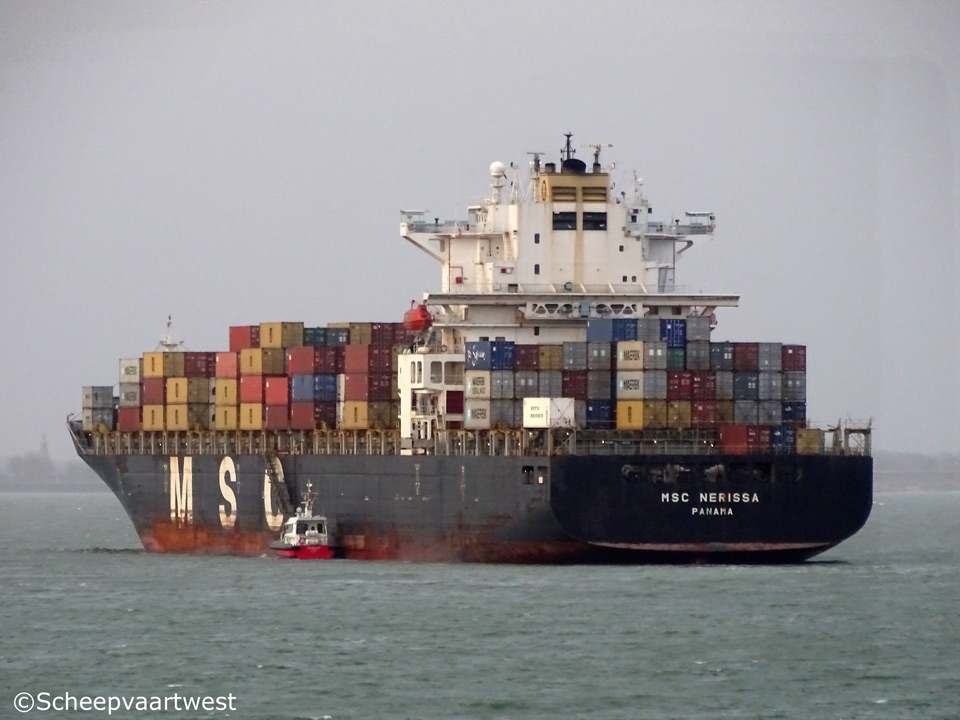

MSC NERISSA |
|
Type |
Cellular containership - Panamax |
|
IMO-number |
9278155 |
|
Call sign |
H3LP |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
54.881 t |
|
DWT |
Summer: 68.178,4 t |
|
NT |
31.783 t |
|
Number of 20ft containers |
5.048 |
|
Container capacity 14t |
3.373 |
|
Reefer capacity |
400 |
|
Length |
294,08 m overall 283,00 m between perpendiculars |
|
Breadth |
32,25 m extreme |
|
Draught |
13,50 m |
|
Forecastle |
14,32 m |
|
Freeboard |
3.939 mm |
|
Depth |
21,60 m |
|
Speed |
Max.: 23,0 knots |
|
Built |
2004 |
|
Keel laid |
16/10/2003 |
|
Launch date |
17/01/2004 |
|
Date of completion |
18/03/2004 |
|
Builder |
Hanjin Heavy Industries & Construction Co., Ltd. 29, 5-ga, Bongnae-dong Youngdo-gu Busan ,606-065 Kyongsang-namdo Republic of Korea |
|
Yard number |
N-115 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull |
|
Watertight bulkheads |
7 |
|
Continuous decks |
2 |
|
Main engine |
1x HDS/MAN-B&W 9K90MC-C - 2 stroke 9 cylinder 900 x 2.300 mm combustion engine 41.130 kW at 104,0 rpm Year of manufacture: 2003 Manufacturer: HSD Engine Co., Ltd. 69 Sinchon-dong Changwon , Kyungnam 641-370 Republic of Korea |
|
Propellers |
1x Solid propeller (keyless) - aft at 104 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,8 bar Heating surface: 50,0 m² 1x Steam boiler, exhaust gas heated - 9,8 bar Heating surface: 689,1 m² Year of manufacture: 2003 Manufacturer: KangRim Heavy Industries Co., Ltd. (1st Factory) 505, Sinpyung-dong, Saha-gu Busan, Kyongsang-namdo Republic of Korea |
|
Electric installations |
4x plants each 440 V - 2.237,5 kVA 1x Plant 440 V - 375 kVA 1x Plant 24 V - 42 Ah 1x Plant 24 V - 56 Ah 1x Plant 24 V - 125 Ah 1x Plant 24 V - 400 Ah 1x Plant 24 V - 200 Ah |
|
Generators |
4x MAN B&W 8L28/32H main diesel generatorsets each 2.237,5 kVA |
|
Emergency generator |
1x Cummins KTA 19 D diesel generatorset 375 kVA |
|
Compressed air receivers |
2x Receivers each 13.500 litres - 32,4 bar 1x Receiver 300 litres - 32,4 bar 4x Receivers each 60 litres - 9,7 bar 1x Receiver 250 litres - 8,8 bar 1x Receiver 20 litres - 9,7 bar |
|
Bow thruster |
1x Transverse thruster - 1.900 kW, forward |
|
Tank capacities |
Ballast: 19.222 m³ |
|
Anchor equipment |
3x Anchors weight each 13.500 kg Length: 714,12 m Diameter: 90 mm |
|
Cargo gear |
Gearless |
|
Crew size |
32 |
|
Manager |
MSC Shipmanagement Limited |
|
Operator |
MSC - Mediterranean Shipping Company |
|
Registered owner |
Altair Carriers Company, S.A. Republic of Panama |
|
Previous owner |
Compania Naviera Nerissa S.A. |
|
Latest data adjustment |
20 July 2020 |
