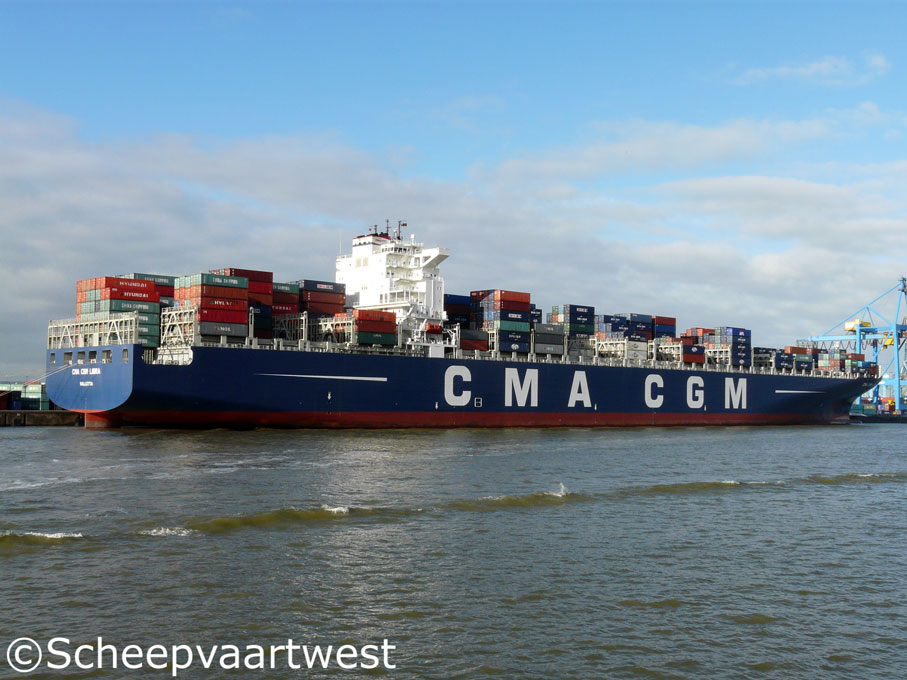

| Zeebrugge 20 January 2011 |
|
Name |
CMA CGM LIBRA |
|
Type |
Cellular containership |
|
IMO-number |
9399193 |
|
Call sign |
9HA2021 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
GT |
131.332 t |
|
DWT |
128.760 t |
|
NT |
59.901 t |
|
Number of 20ft containers |
11.200 |
|
Container capacity 14t |
8.900 |
|
Reefer point |
700 |
|
Length |
363,00 m overall 349,99 m between perpendiculars |
|
Breadth |
45,66 m |
|
Draught |
Summer: 15,50 m |
|
Freeboard |
7.451 mm |
|
Depth |
29,74 m |
|
Speed |
Max.: 24,7 knots |
|
Built |
2009 |
|
Date of completion |
16.07.2009 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. |
|
Yard number |
1954 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
13 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 12K98MC-C Mk7 - 2 stroke 12 cylinder 980 x 2.400 mm internal combustion engine - 72.240 kW / 98.152 hp at 104,0 rpm Date of build: 31.12.2008 Licence: MAN B&W Builder: Hyundai Heavy Ind. Co., Ltd. - Engine & Mach. Div. |
|
Propelling system |
1x Screw propeller solid at 104 rpm |
|
Boilers |
1x CHO Aalborg 40,14 m² - 9.0 bar |
|
Generators |
3x Main diesel generatorsets each 2.926 kVA - 2.341 kW - 3.139 hp |
|
Number of holds |
10 |
|
Total capacity of holds |
288.653,70 m³ |
|
Fuel capacity |
15.562 m³ |
|
Cargo gear |
None |
|
Crew |
23 |
|
Manager |
CMA CGM Marseille Head Office |
|
Operator |
CMA CGM - Compagnie Maritime D'Affrètemeny - Compagnie Générale Maritime |
|
Owner |
Alize 1954 |
